Door Switch Check

CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-RR", "DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

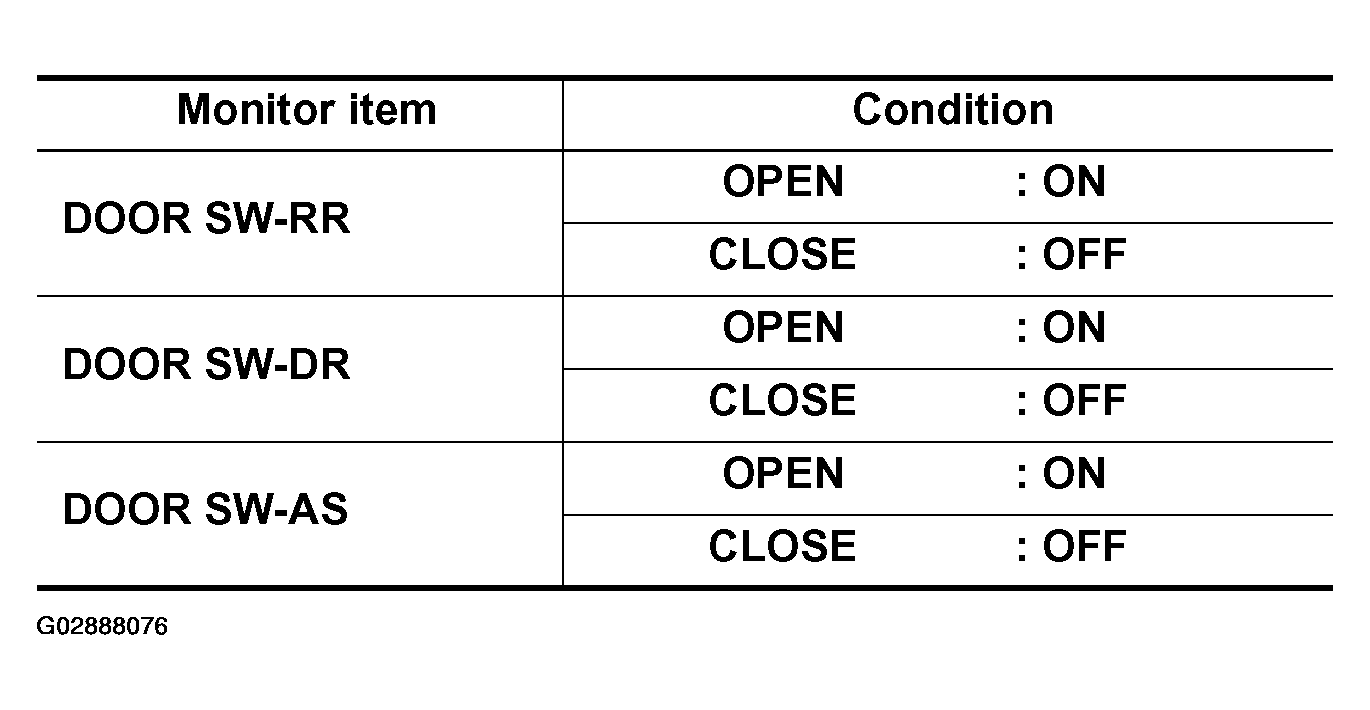

Fig 1: Monitor Item Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

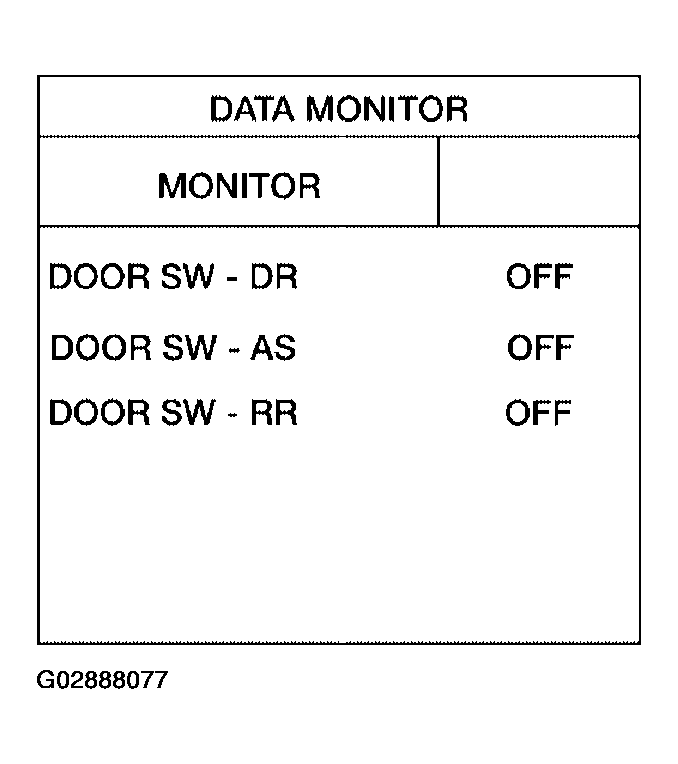

Fig 2: Scan Tool Display "Data Monitor"
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM harness connector terminals 10 (P/L), 11 (R/B), 14 (SB) and/or 54 (SB) (without vehicle security system) and ground.

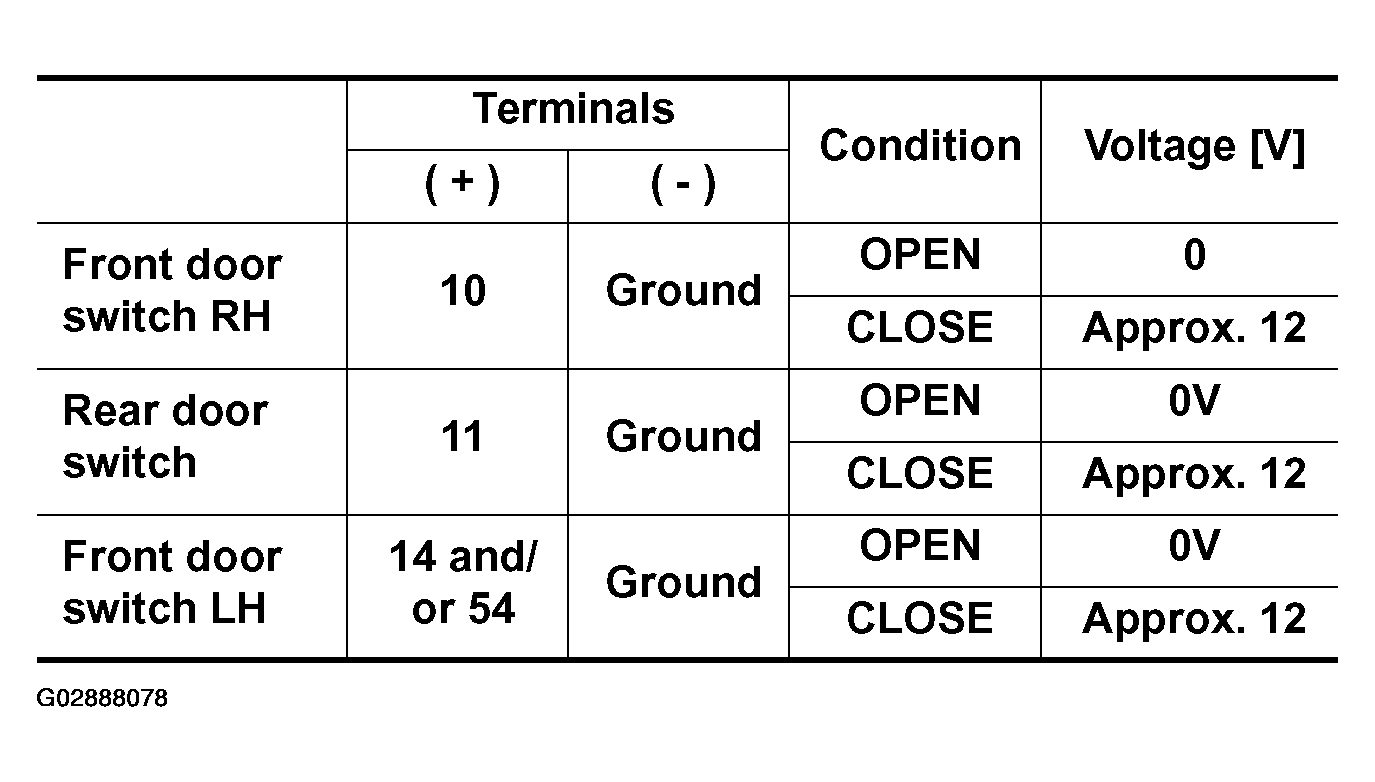

Fig 3: BCM Harness Connector Terminals & Ground Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

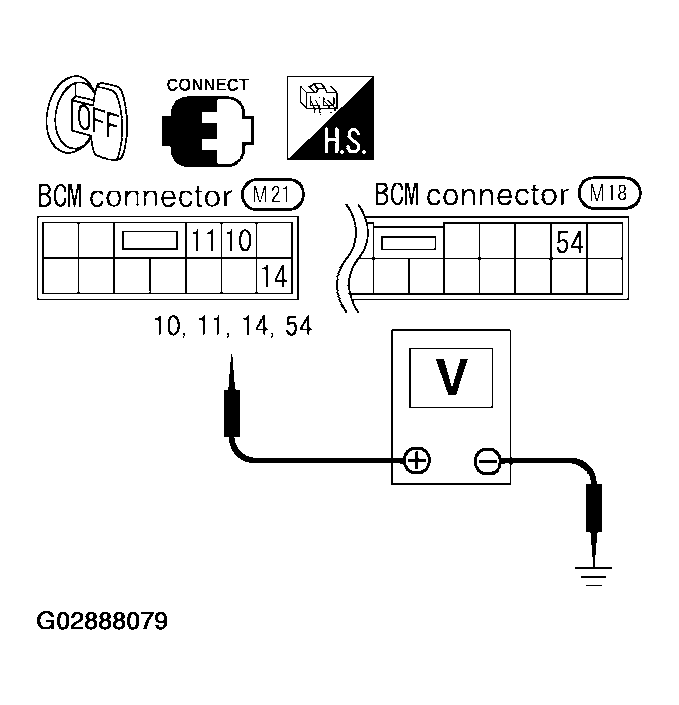

Fig 4: BCM Harness Connector Terminals & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?
1. OK: Door switch is OK.
2. NG: GO TO 2

CHECK DOOR SWITCH

Disconnect door switch and BCM harness connector.

Check continuity between door switch harness connector B8, B18, B108, B116 terminals 1 (R/B), 2 (SB or P/L) and BCM harness connector ? terminals 10 (P/L), 11 (R/B), 14 (SB) and/or 54 (SB) (without vehicle security system).

DOOR SWITCH CONTINUITY CHART

Front door RH	2 (P/L) - 10 (P/L)	:Continuity should exist.
Rear door	1 (R/B) - 11 (R/B)	:Continuity should exist.
Front door LH	2 (SB) - 14 (SB) 2 (SB) - 54 (SB)	:Continuity should exist.

Check continuity between door switch harness connector B8, B18, B108, B116 terminals 1 (R/B), 2 (SB or P/L) and ground.

DOOR SWITCH CONTINUITY CHART

Front door RH	2 (P/L) - Ground	:Continuity should not exist.
Rear door	1(R/B) - Ground	:Continuity should not exist.
Front door LH	2(SB) - Ground	:Continuity should not exist.

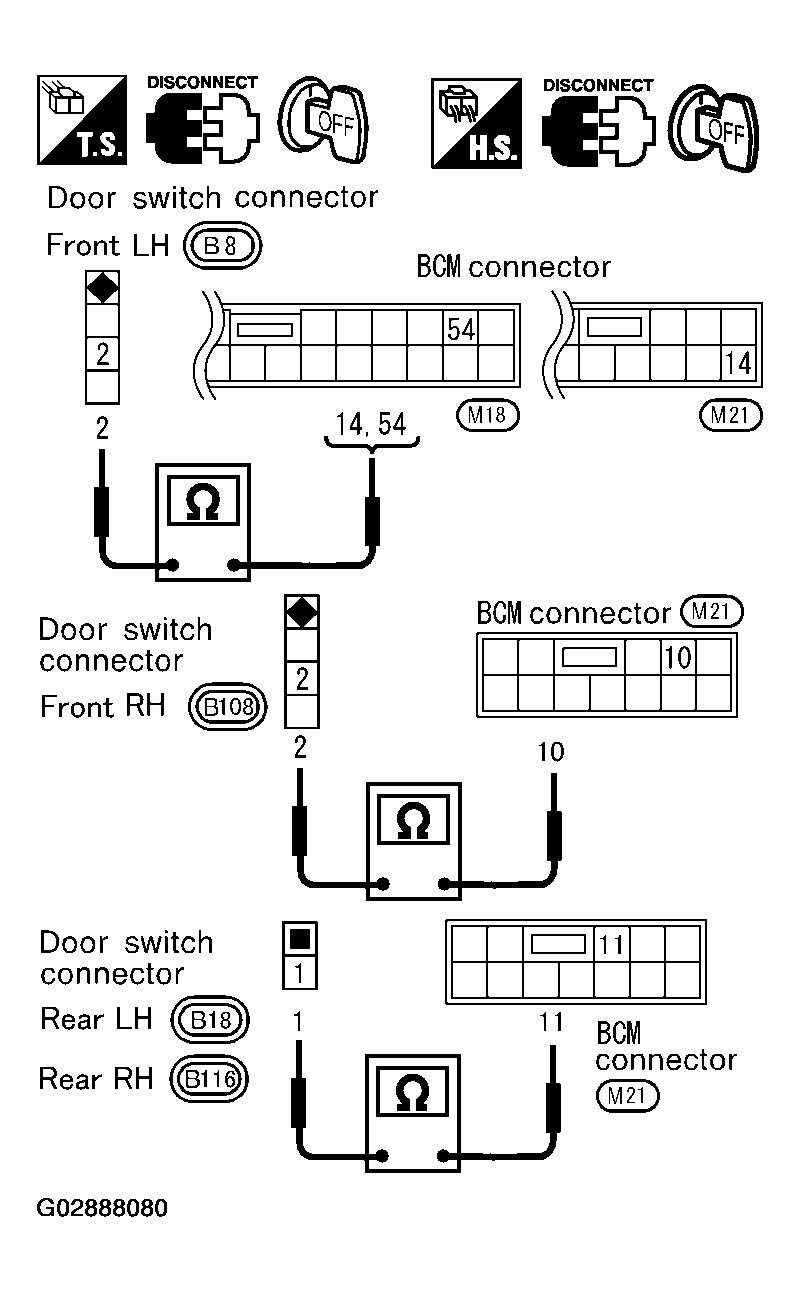

Fig 5: Door Switch Harness Connector & BCM Harness Connector Continuity Test

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG?

OK: Replace door switch.
NG: Replace door switch harness.
