Cross-sectional View: Notes

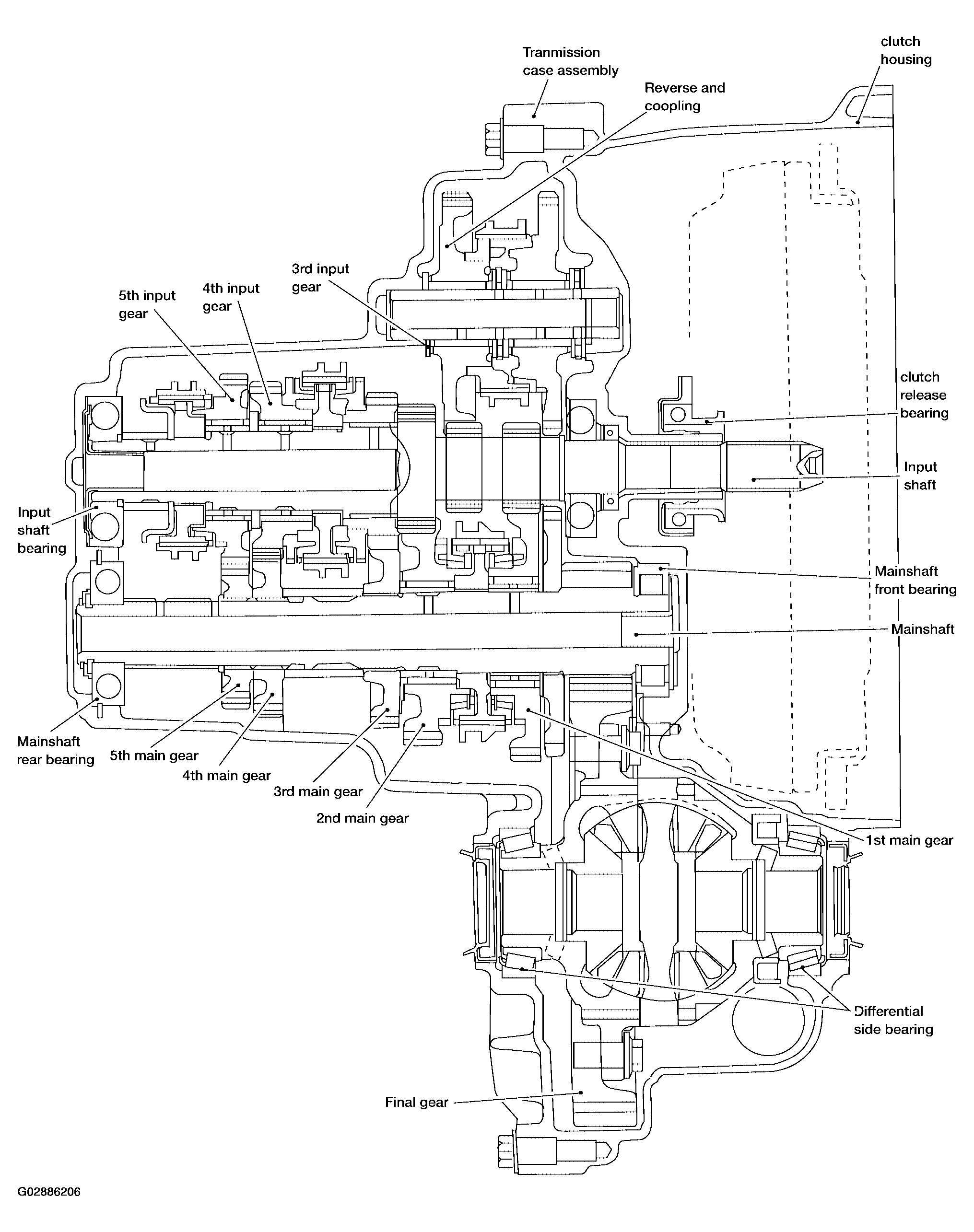

Fig 1: Identifying Manual Transaxle Cross-Sectional View
G02886206Courtesy of NISSAN MOTOR CO., U.S.A.
