General Specifications: Transaxle

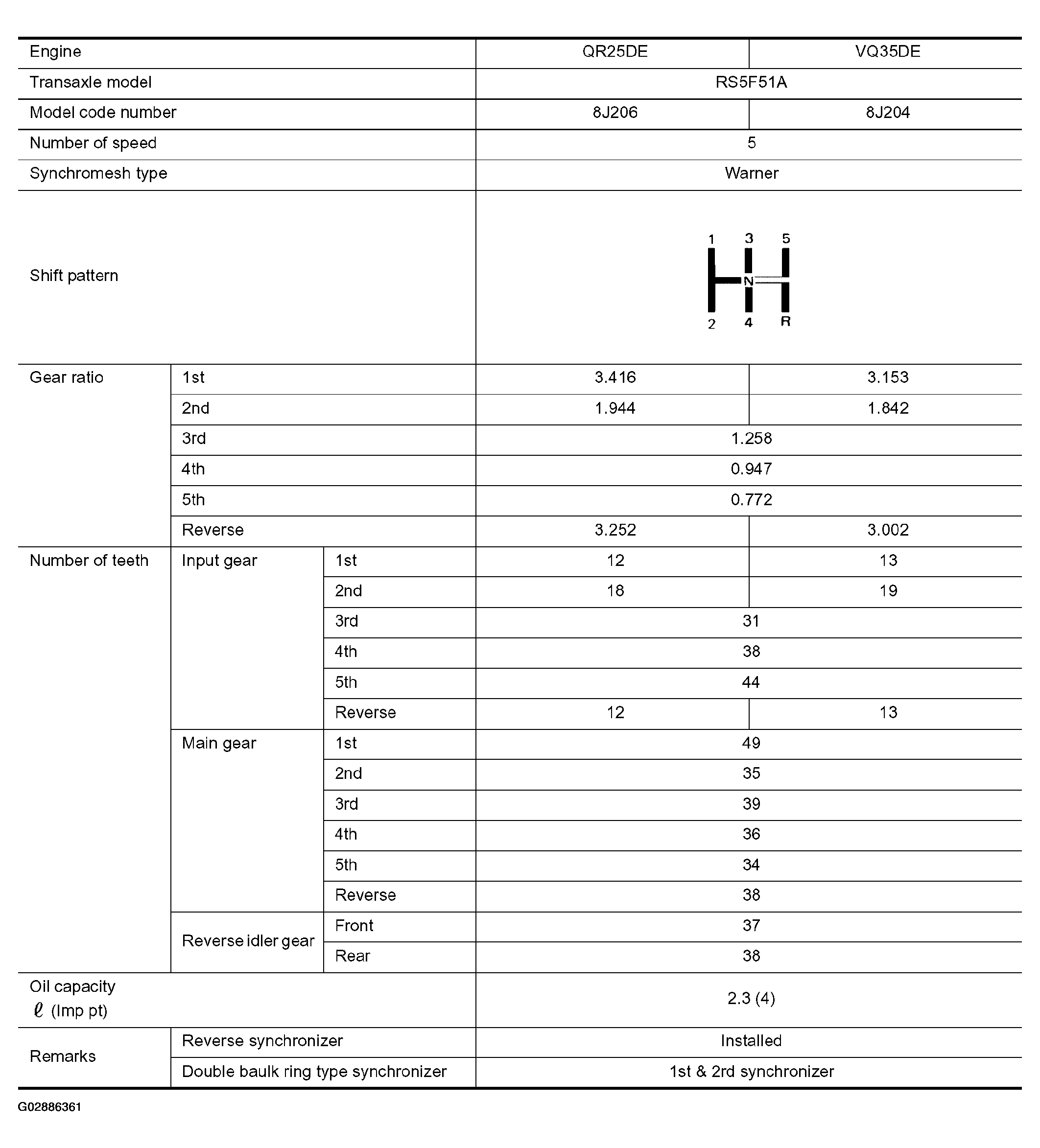

Fig 1: General Transaxle Specifications

G02886361

Courtesy of NISSAN MOTOR CO., U.S.A.
