Final Drive Components

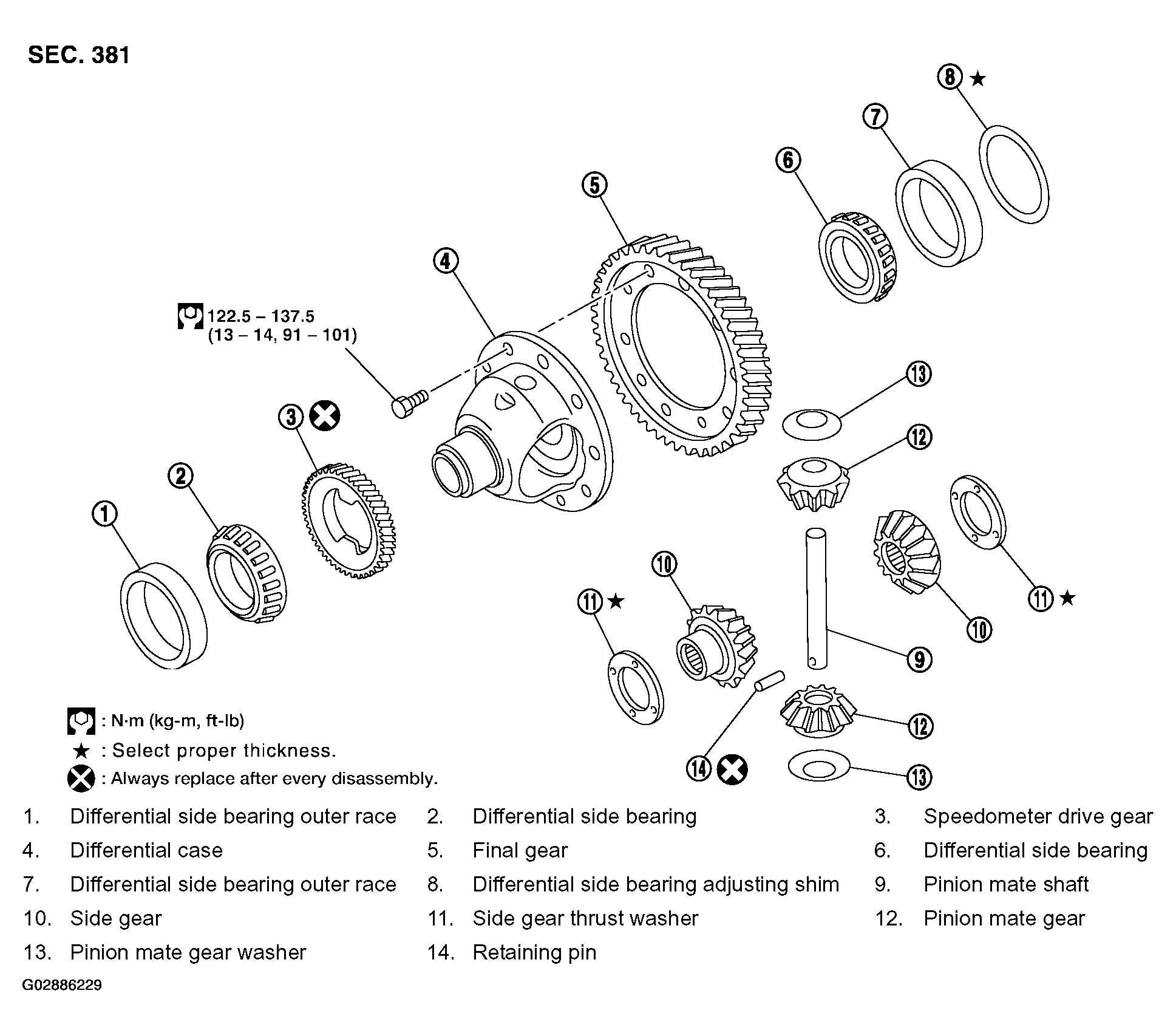

Fig 1: Final Drive Replacement Components With Torque Specifications
G02886229Courtesy of NISSAN MOTOR CO., U.S.A.
