Idle Speed and Ignition Timing

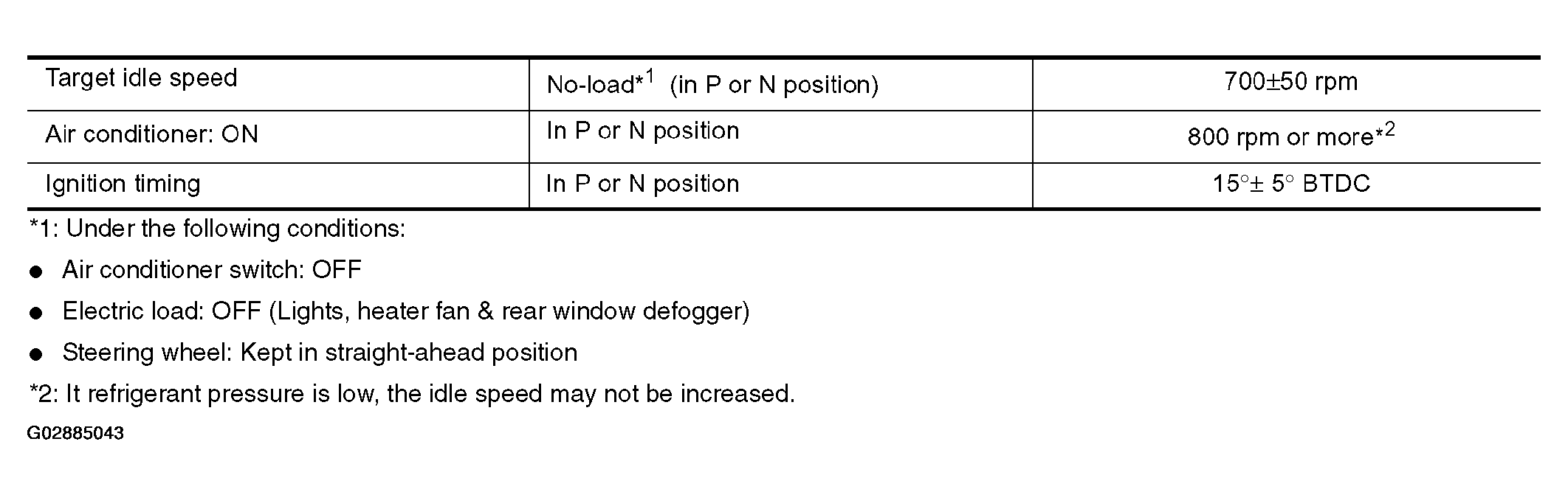

Fig 1: Idle Speed & Ignition Timing Service Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
