Without CONSULT-II

NOTE:

It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a malfunction.

Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Start engine and warm it up to normal operating temperature.
Check that all items listed under the topic PREPARATION are in good order.
Turn ignition switch OFF and wait at least 10 seconds.
Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
Repeat the following procedure quickly five times within 5 seconds.
1. Fully depress the accelerator pedal.
2. Fully release the accelerator pedal.
Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MIL stops blinking and turned ON.
Fully release the accelerator pedal within 3 seconds after the MIL turned ON.
Start engine and let it idle.
Wait 20 seconds.

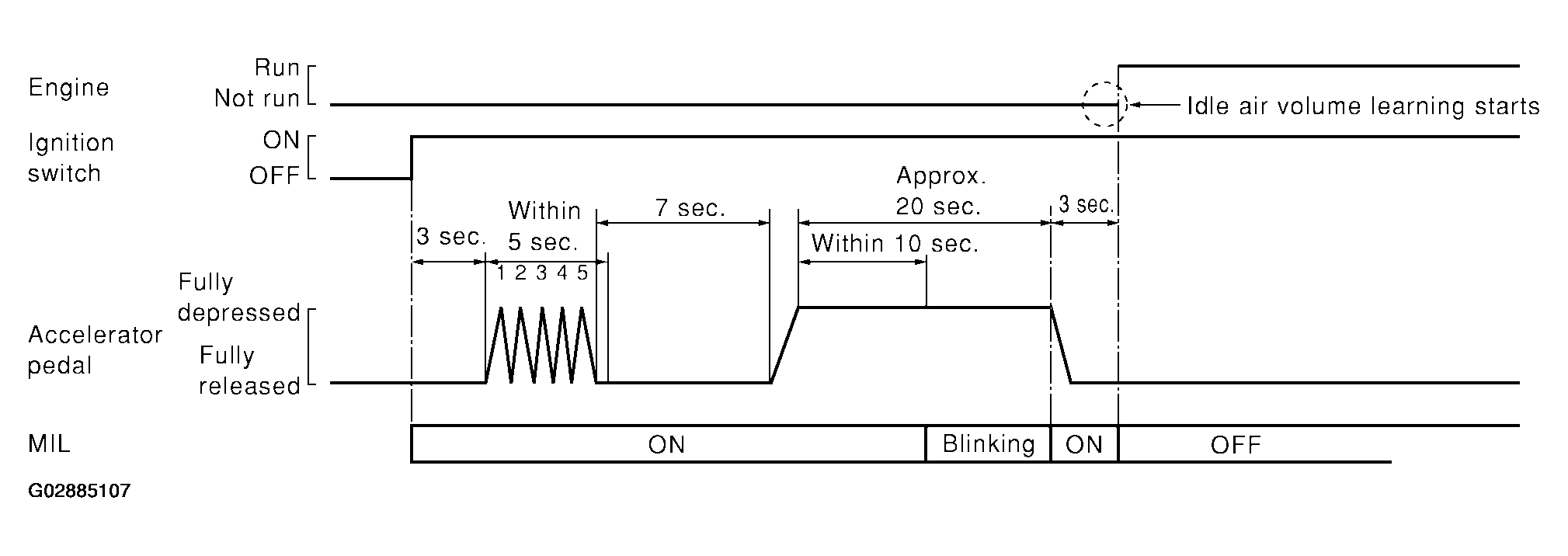

Fig 1: Learning Accelerator Pedal Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.

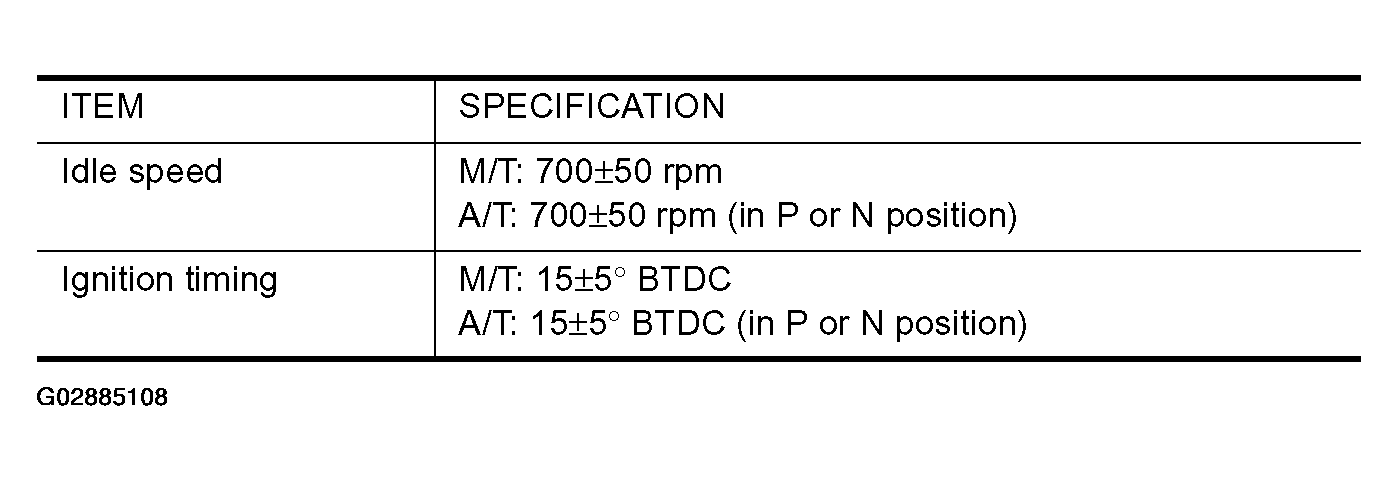

Fig 2: Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If idle speed and ignition timing are not within the specification, the result will be incomplete. In this case, find the cause of the incident by referring to DIAGNOSTIC PROCEDURE .
