System Diagram

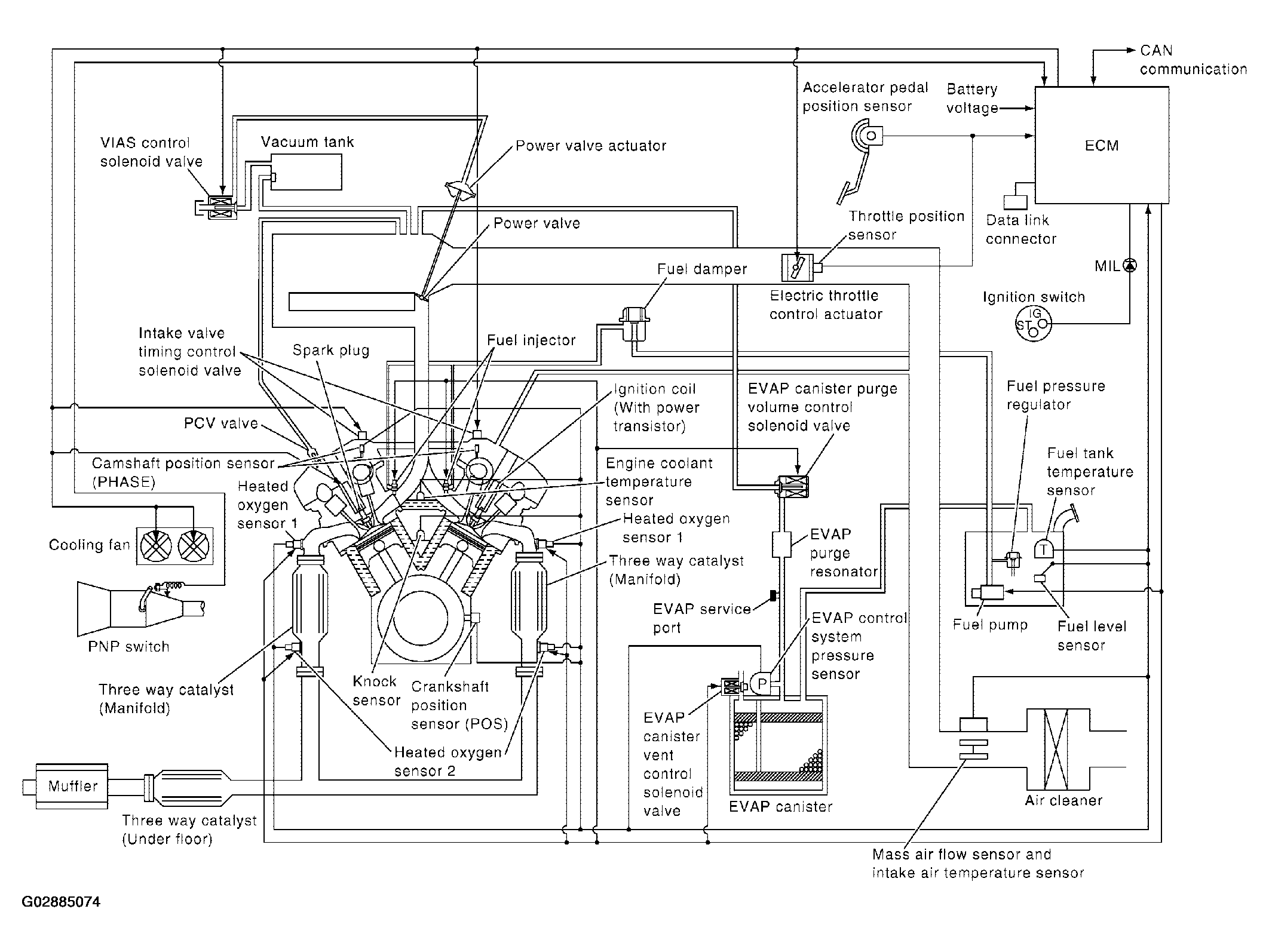

Fig 1: System Diagram - Engine Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
