Alphabetical Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

NOTE: Refer to Fig 4for footnote references in Fig 1-Fig 4.

x: Applicable

-: Not Applicable

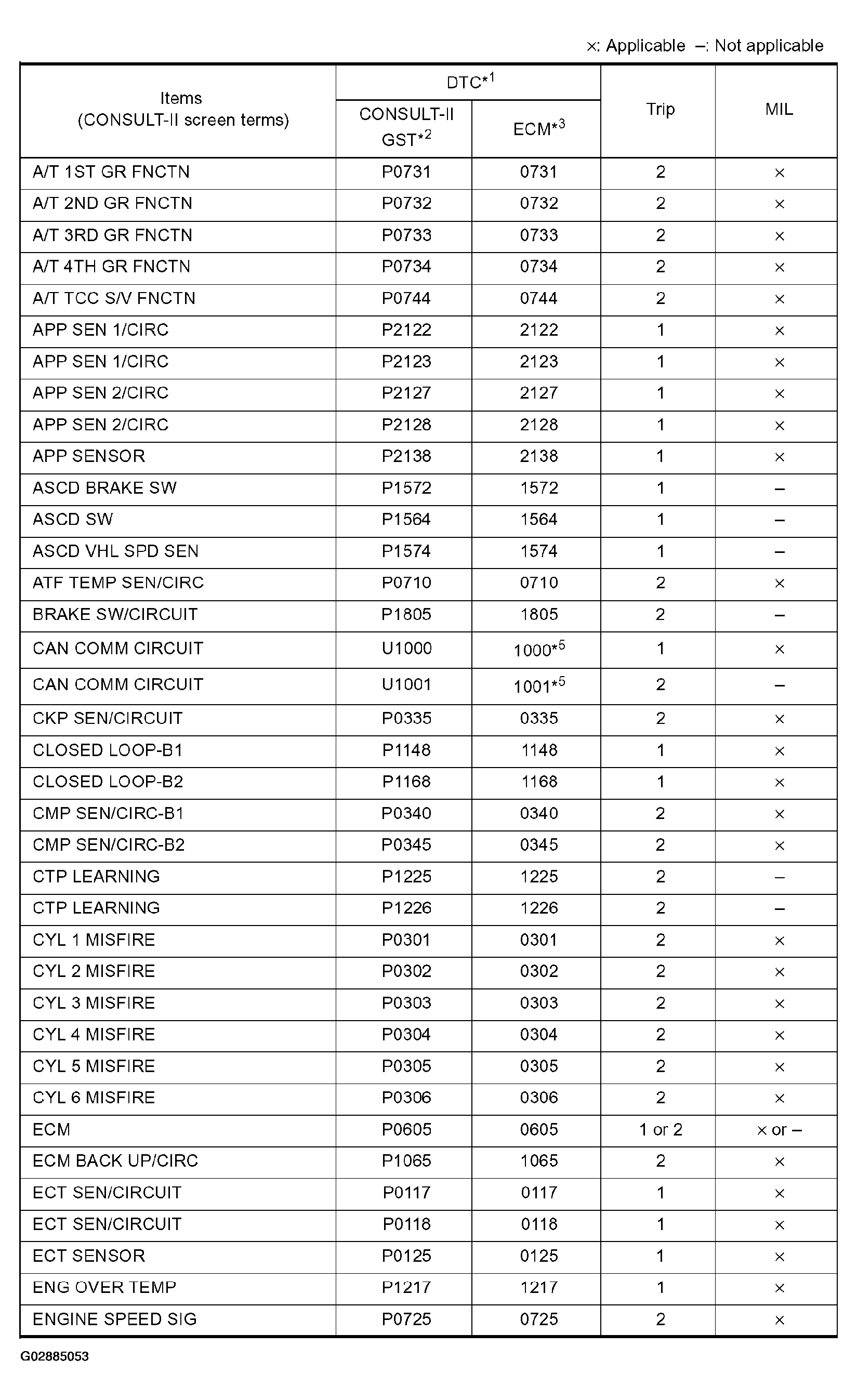

Fig 1: DTC Alphabetical Index (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

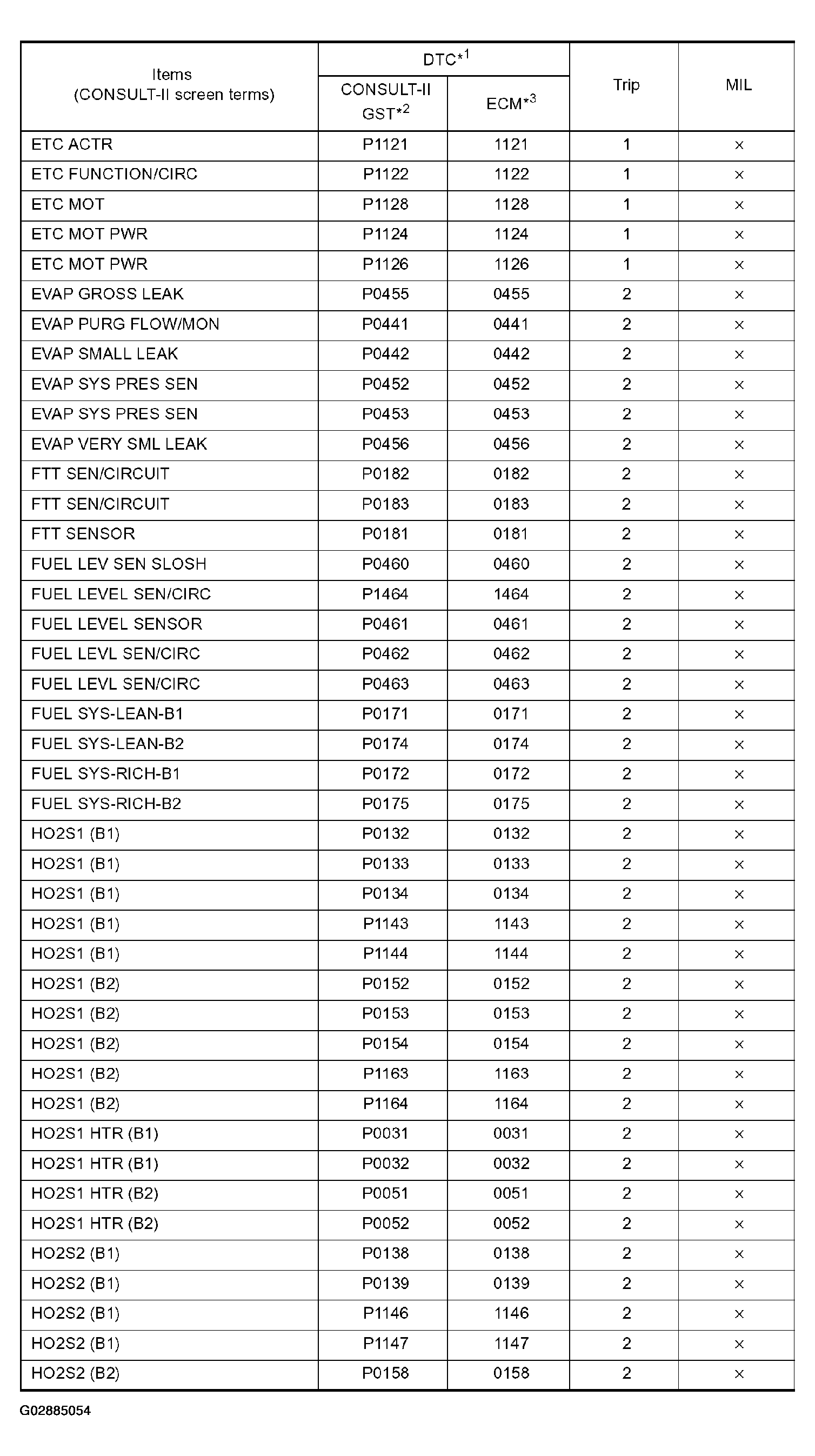

Fig 2: DTC Alphabetical Index (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

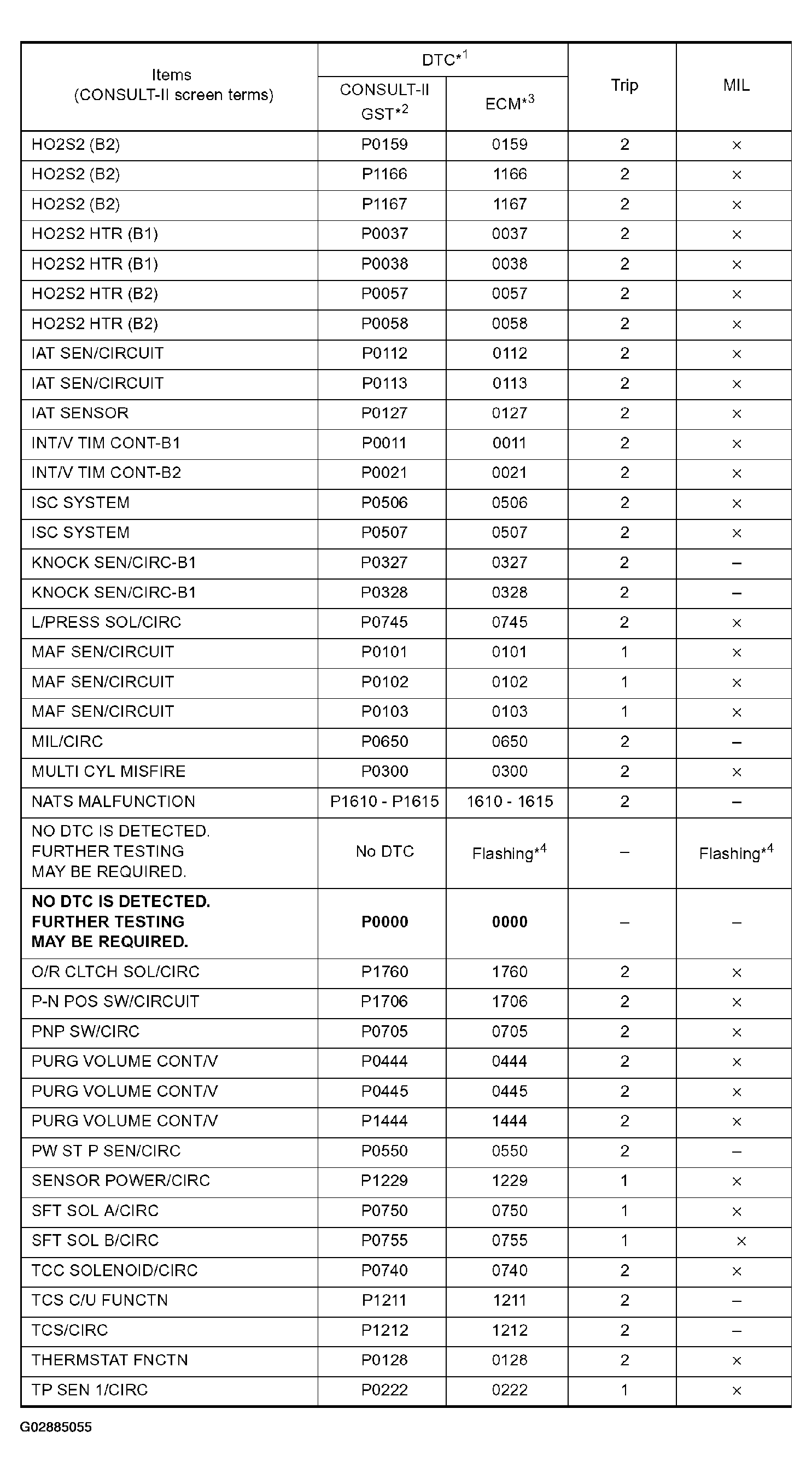

Fig 3: DTC Alphabetical Index (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

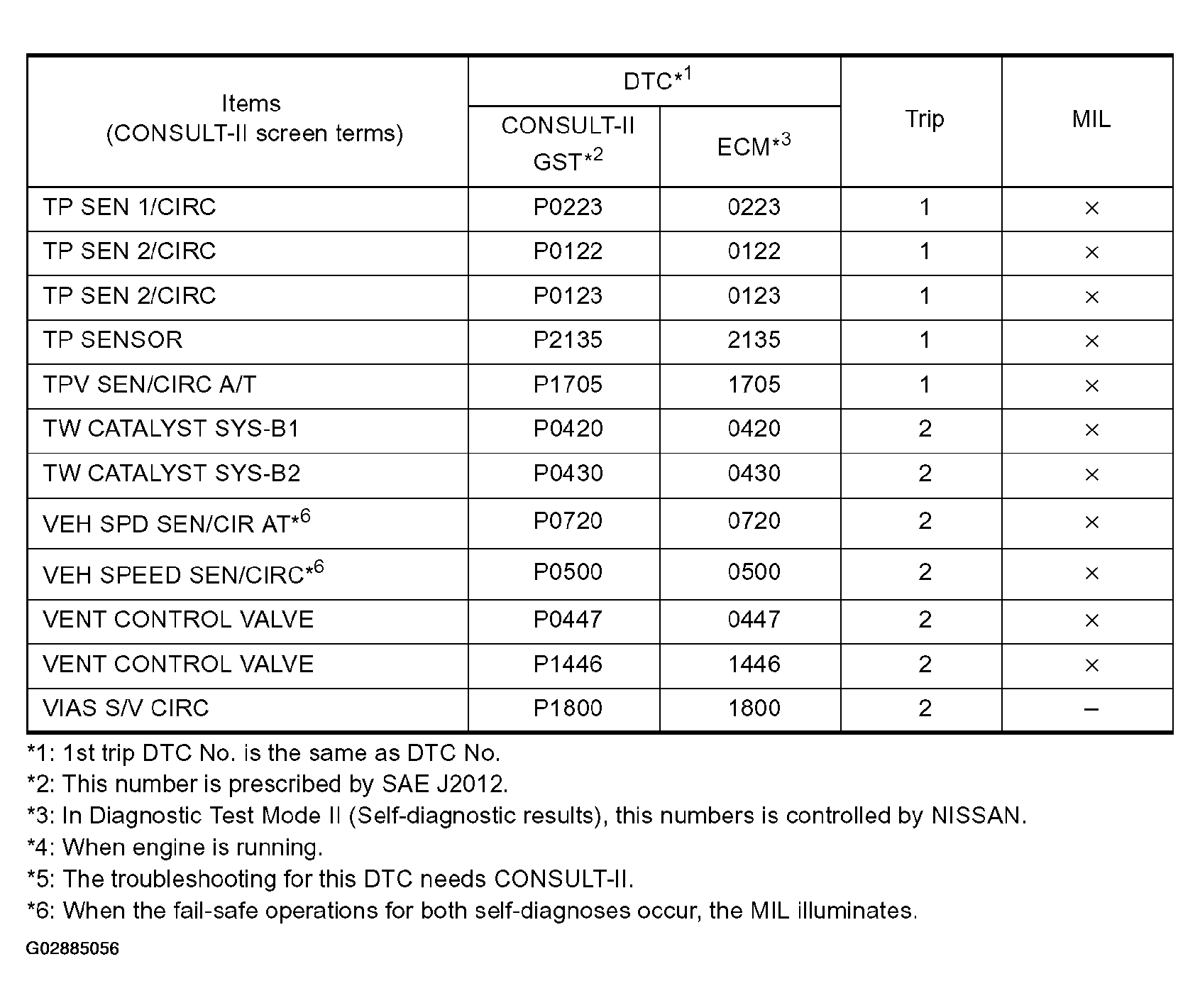

Fig 4: DTC Alphabetical Index (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
