Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 11.1 - 14.5Ω [at 10 - 60°C (50 - 140°F)]

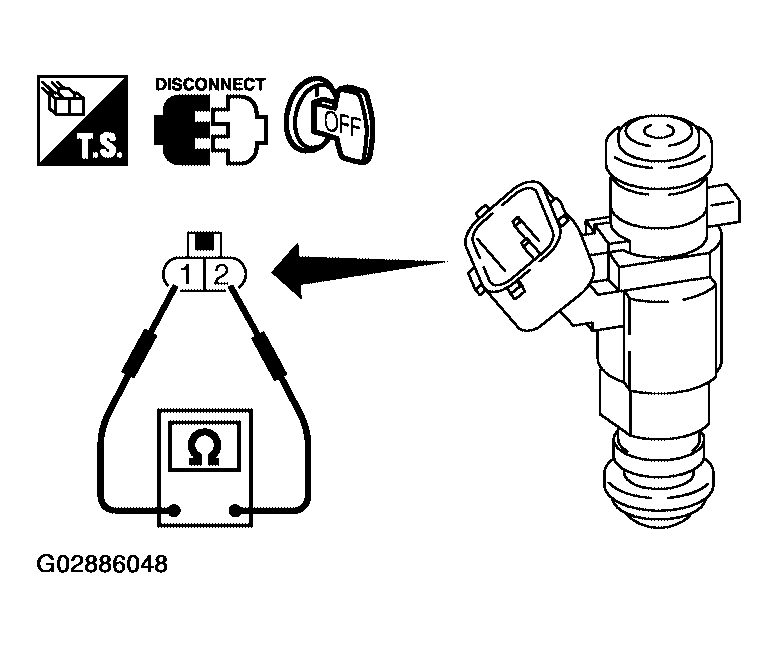

    Fig 1: Checking Resistance Between Terminals
    G02886048Courtesy of NISSAN MOTOR CO., U.S.A.
