Engine Control Component Parts/Control Systems Application

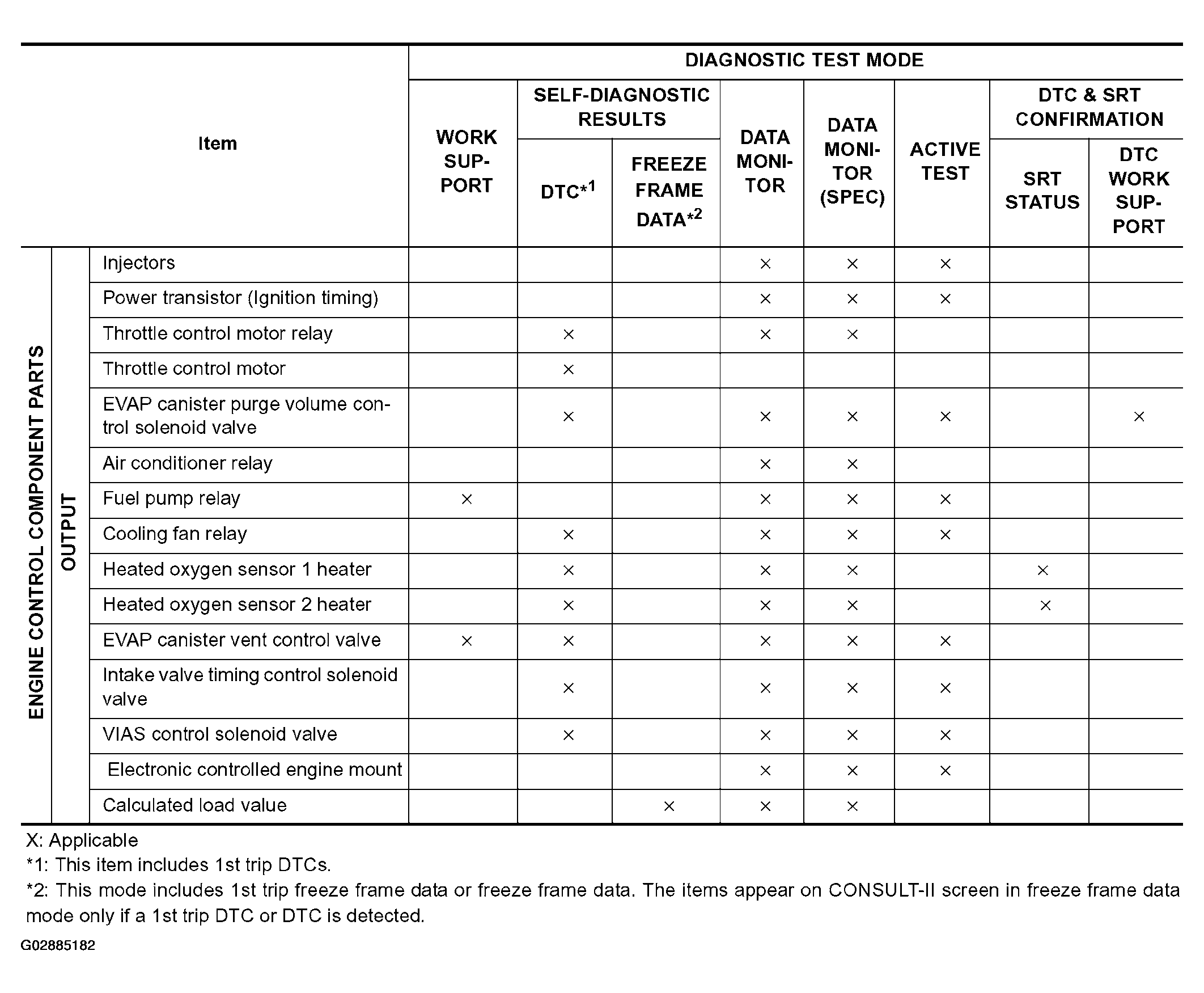

Fig 1: Engine Control Component Parts/Control Systems Application Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

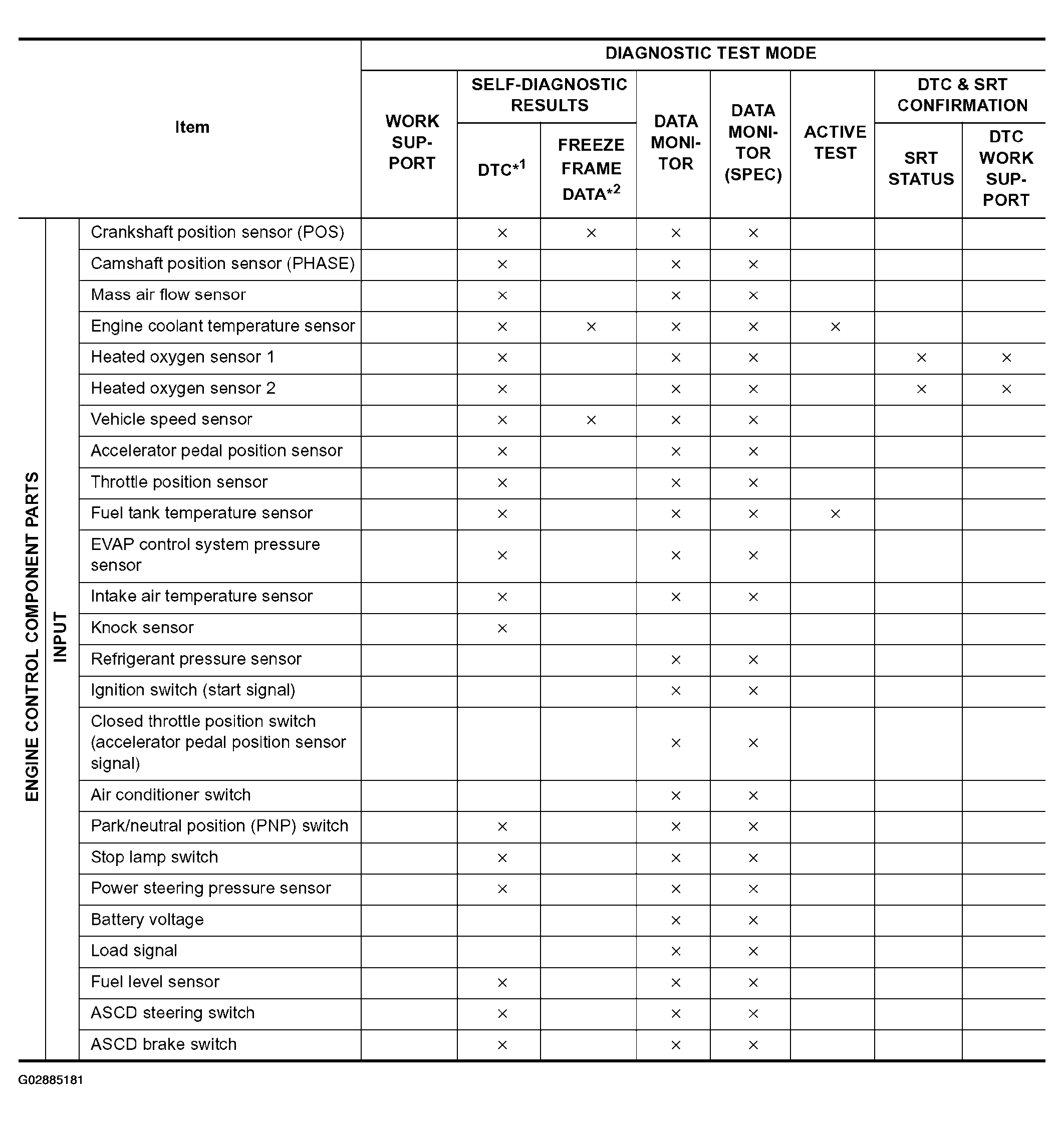

Fig 2: Engine Control Component Parts/Control Systems Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

X:  Applicable

*1:  This item includes 1st trip DTCs.

*2:  This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data mode only if a 1st trip DTC or DTC is detected. For details, refer to FREEZE FRAME DATA AND 1ST TRIP FREEZE FRAME DATA .
