System - Basic Engine Control System

1 - 6: The numbers refer to the order of inspection.

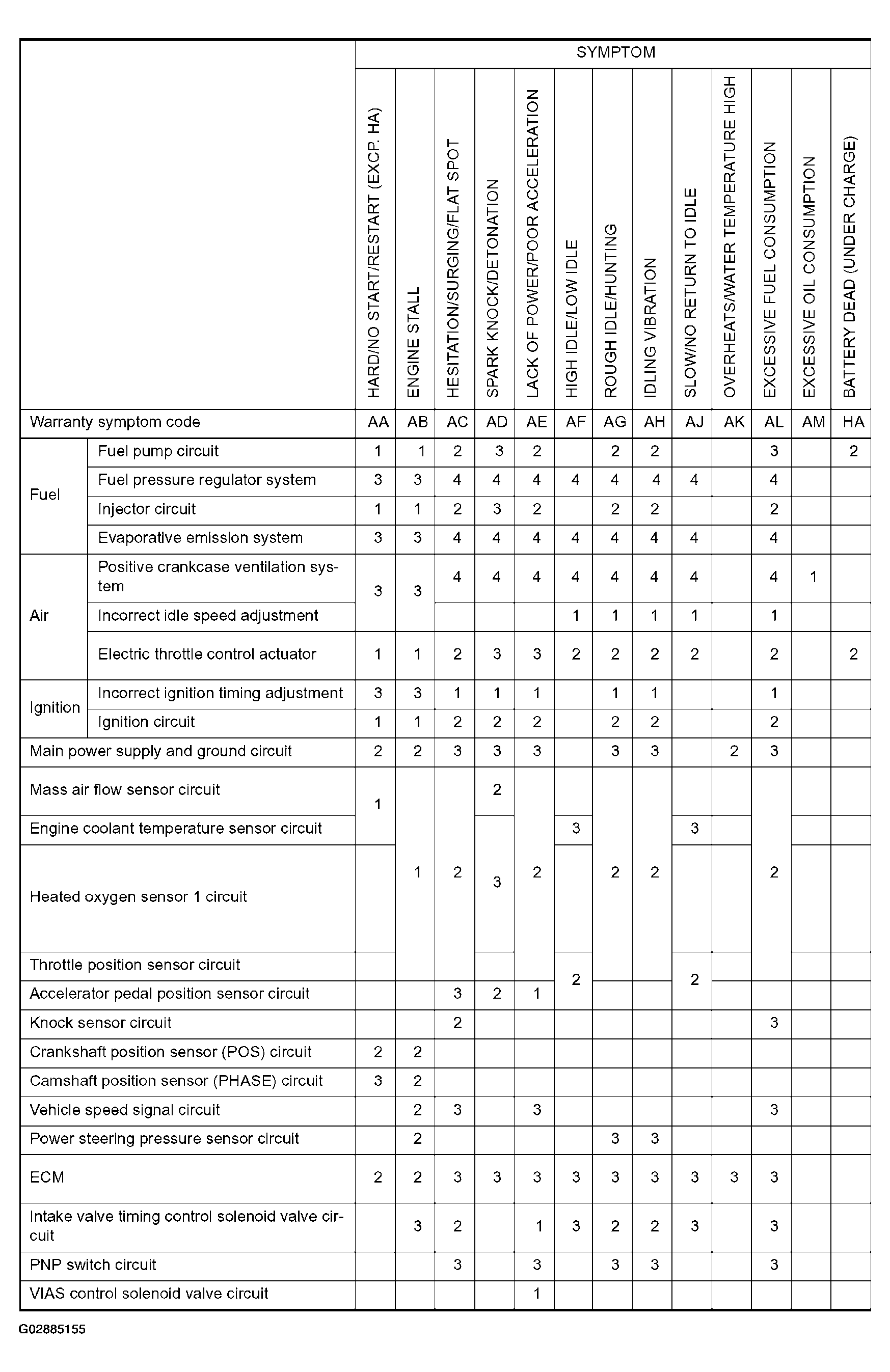

Fig 1: Symptom Matrix Chart (Basic Engine Control System - 1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

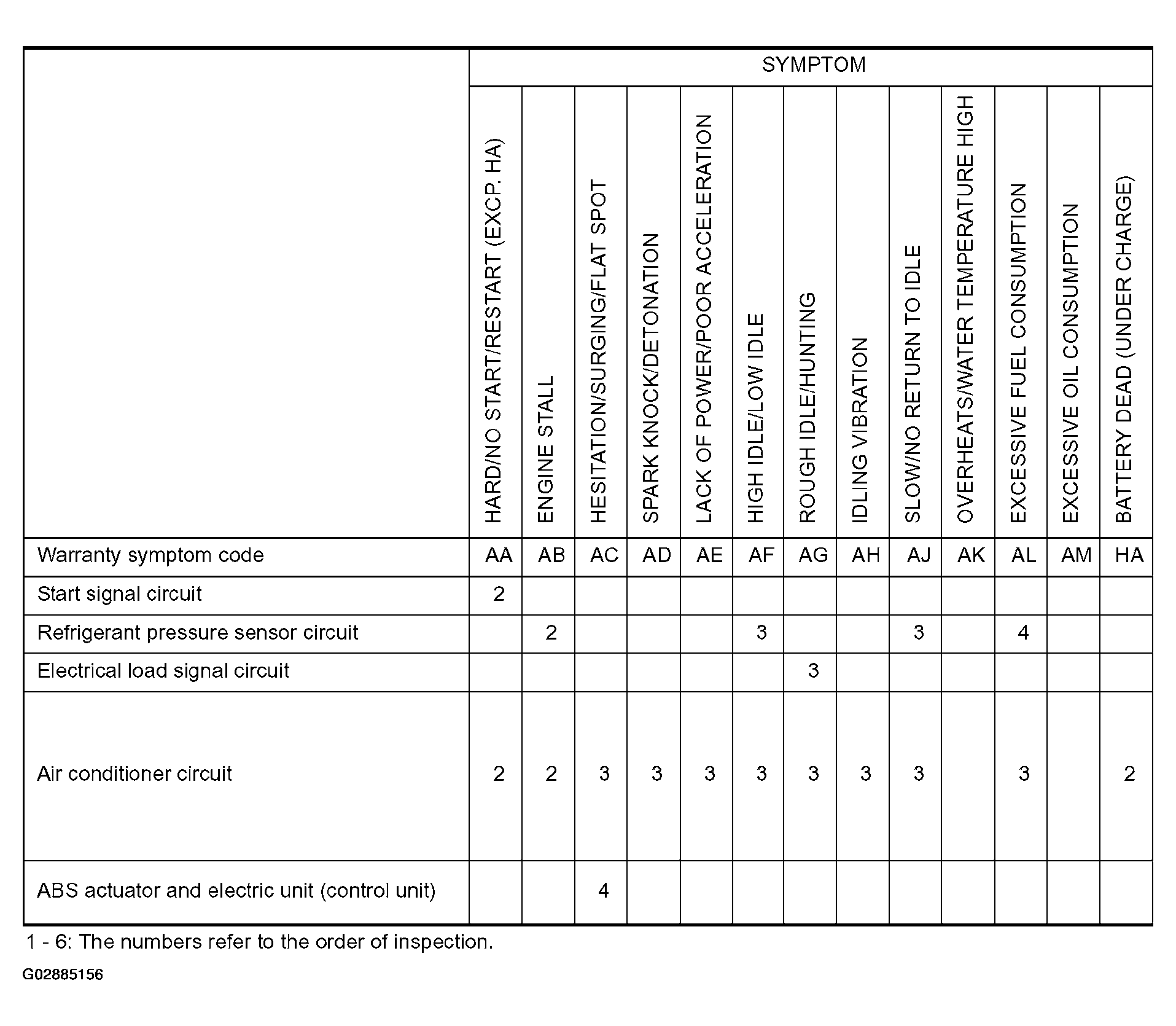

Fig 2: Symptom Matrix Chart (Basic Engine Control System - 2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
