INTELLIGENT KEY UNIT: Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

CHECK POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect Intelligent Key unit connector.
Check voltage between Intelligent Key unit harness connector M70 terminals 6, 11 and ground.

Connector	Terminals		Ignition switch position
M70	(+)	(-)	OFF	ON
	6	Ground	0V	Battery voltage
	11	Ground	Battery voltage	Battery voltage

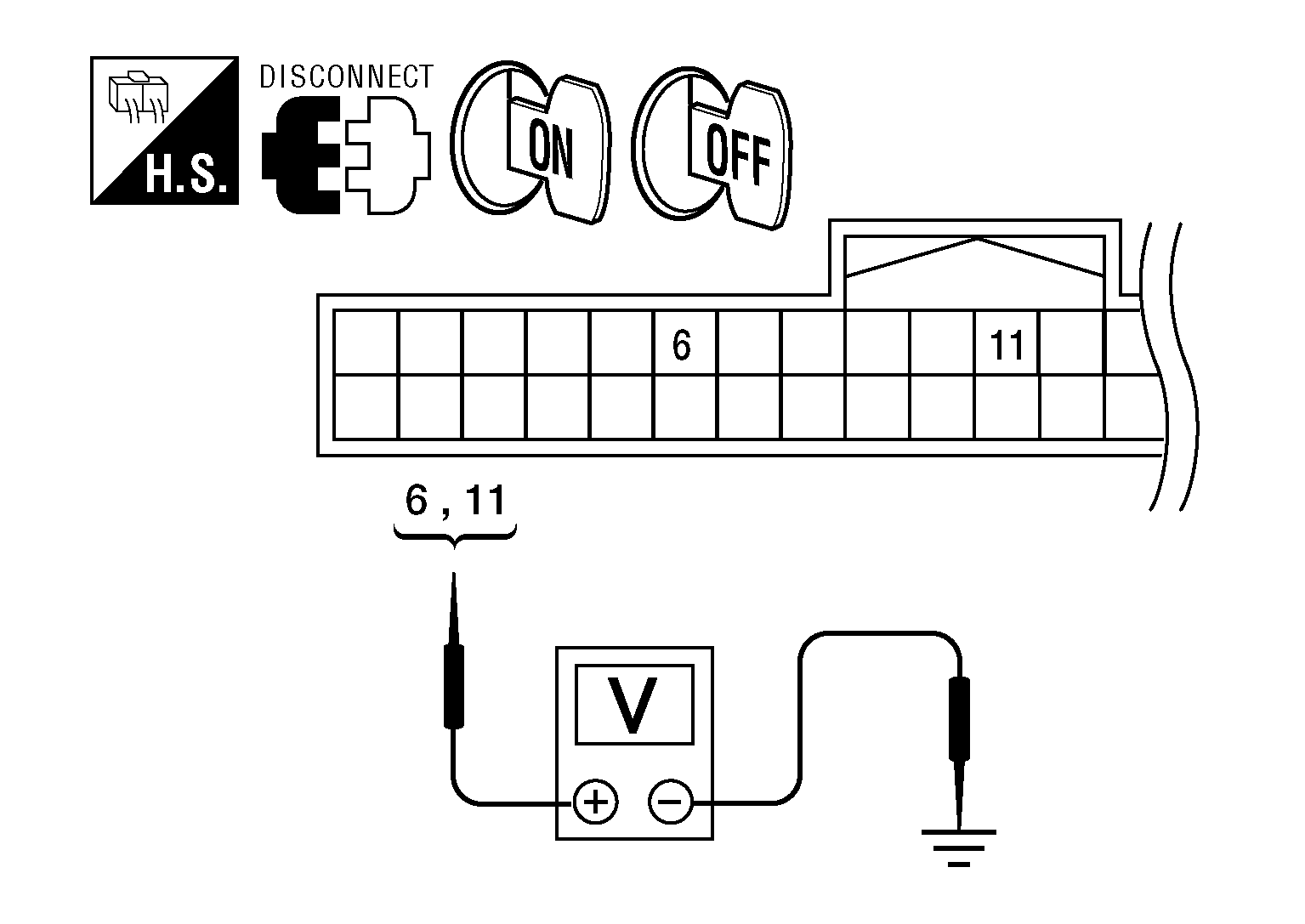

Fig 1: Checking Voltage Between Intelligent Key Unit Harness Connector M70 Terminals 6, 11 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: GO TO 2.

NO: Repair or replace Intelligent Key power supply circuit.

CHECK GROUND CIRCUIT
Check continuity between Intelligent Key unit harness connector M70 terminal 12 and ground.

12 - Ground: Continuity should exist .

Is the inspection result normal?

YES: Power supply and ground circuits are OK.

NO: Repair or replace the Intelligent Key unit ground circuit.

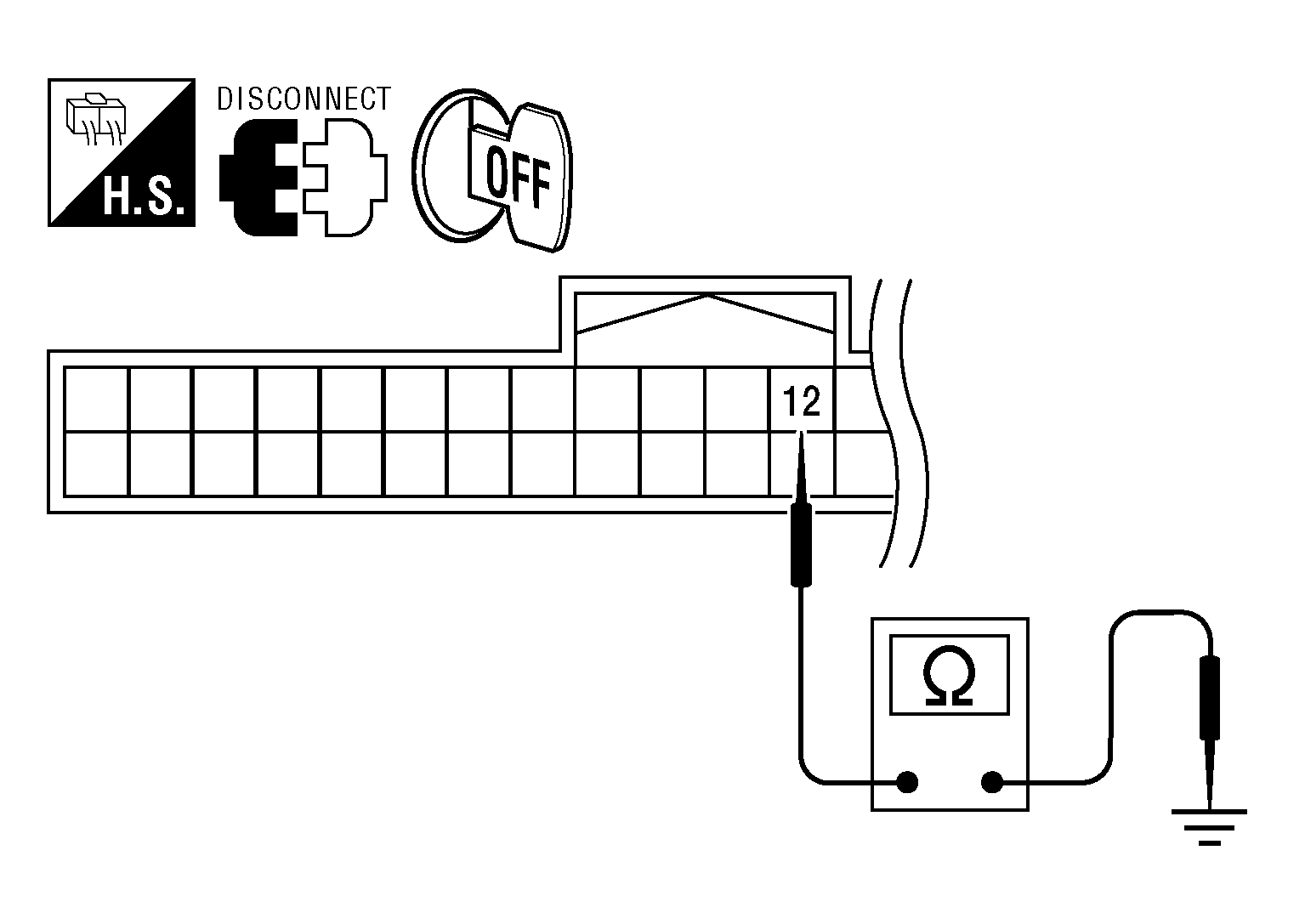

Fig 2: Checking Continuity Between Intelligent Key Unit Harness Connector M70 Terminal 12 And Ground
Courtesy of NISSAN NORTH AMERICA, INC.
