Stop Lamp Switch

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

STOP LAMP SWITCH TERMINALS CONTINUITY CONDITIONS

Condition	Continuity
When brake pedal is fully released.	Should not exist.
When brake pedal is depressed.	Should exist.

If NG, adjust stop lamp switch installation, refer to STOPLIGHT SWITCH & AUTOMATIC SPEED CONTROL DEVICE SWITCH and perform step 3 again (Check continuity...).

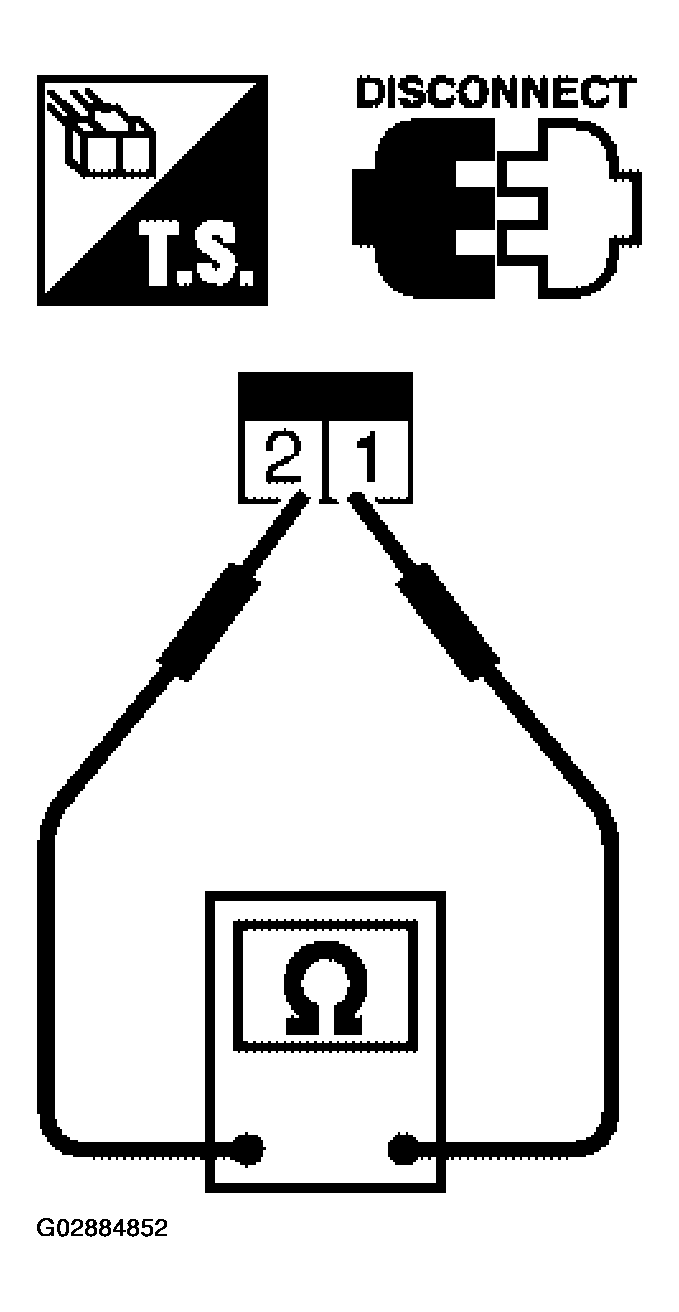

Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.
