2. Check Overall Function-II

With CONSULT-II

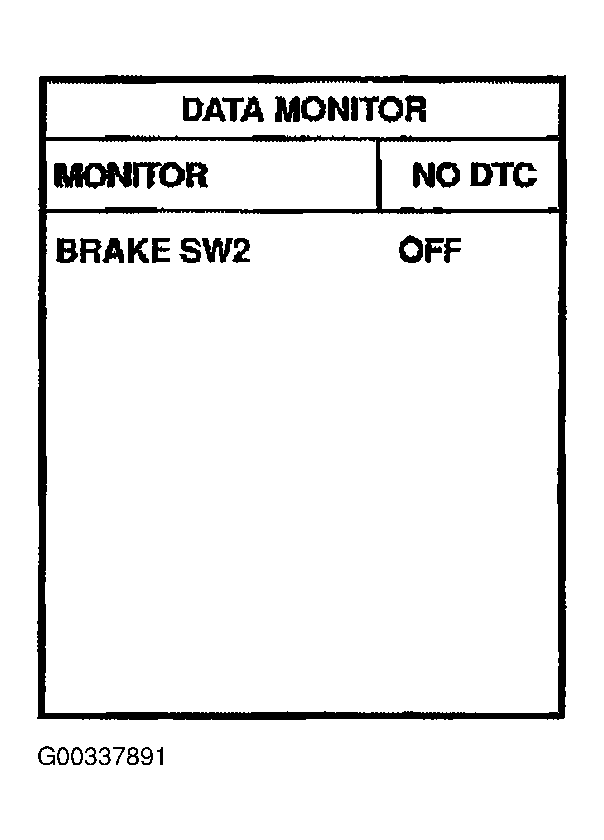

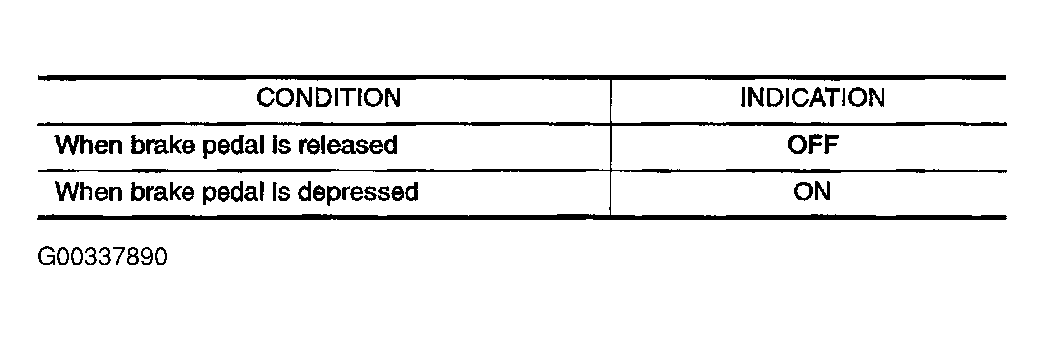

Check "BRAKE SW2" indication in "DATA MONITOR" mode.

Fig 1: Overall Function-II Check With CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Overall Function-II Check With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

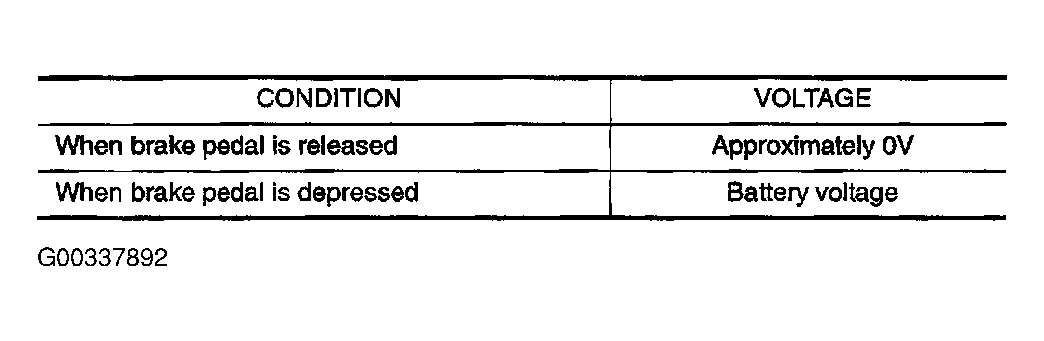

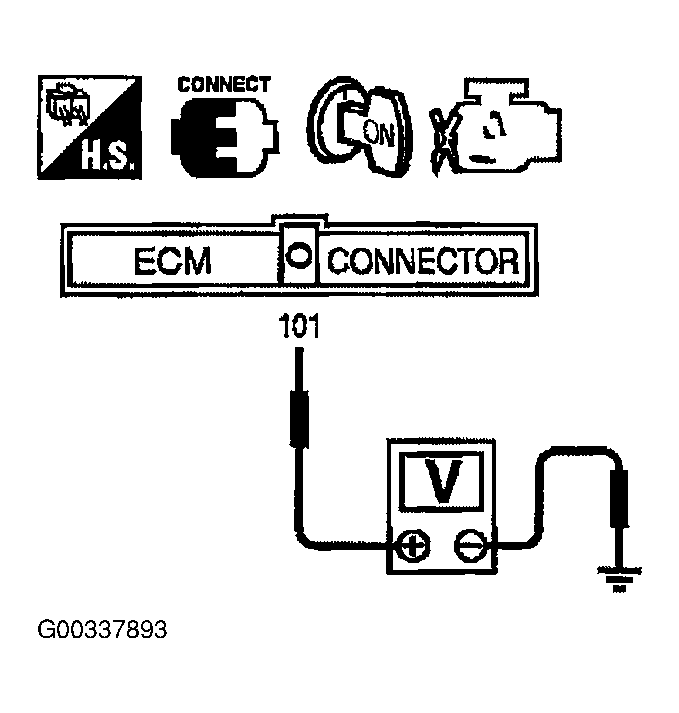

Check voltage between ECM terminal 101 and ground under the following conditions.

Fig 3: Overall Function-II Check Without CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Overall Function-II Check Without CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >>INSPECTION END
