Method A

  1. Attach timing light to loop wire as shown.
  2. Check ignition timing.

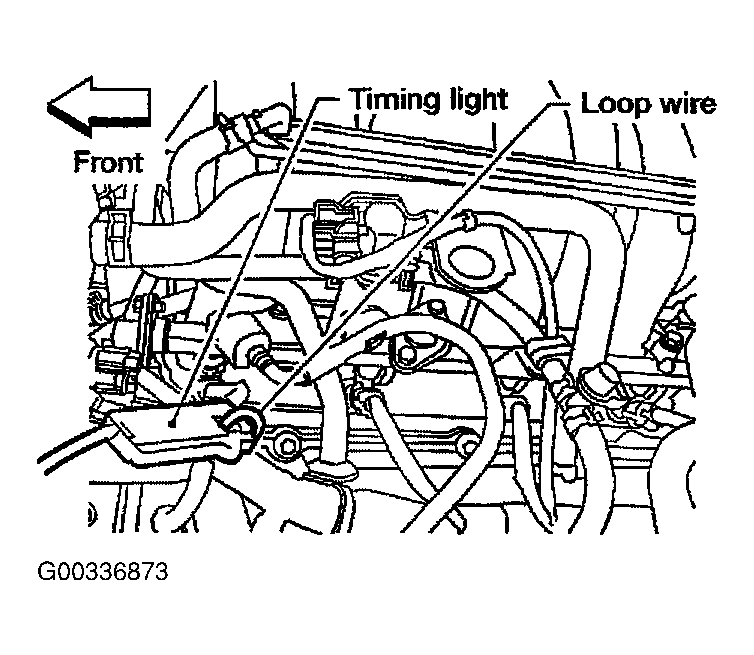

    Fig 1: Locating Timing Light Loop
    G00336873Courtesy of NISSAN MOTOR CO., U.S.A.
