Engine Coolant Temperature Sensor

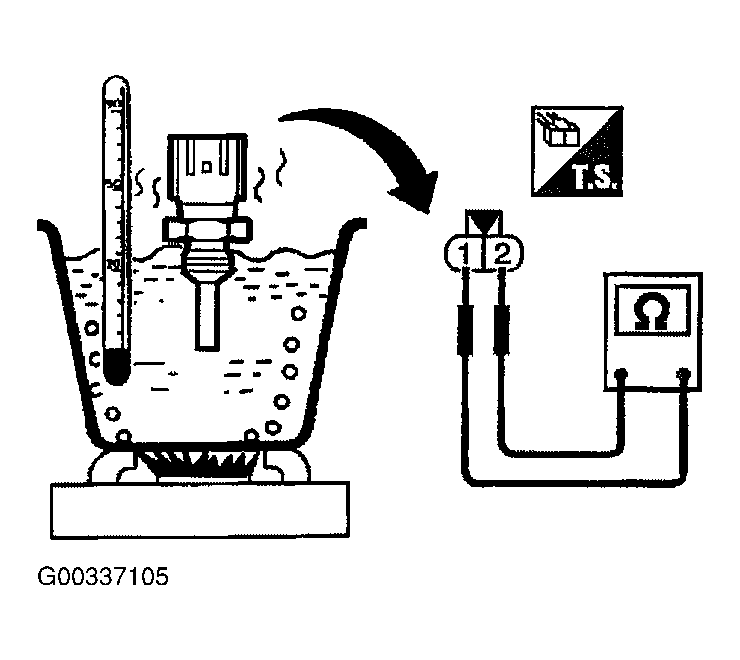

  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.
    Fig 1: Checking Engine Coolant Temperature Sensor
    G00337105Courtesy of NISSAN MOTOR CO., U.S.A.

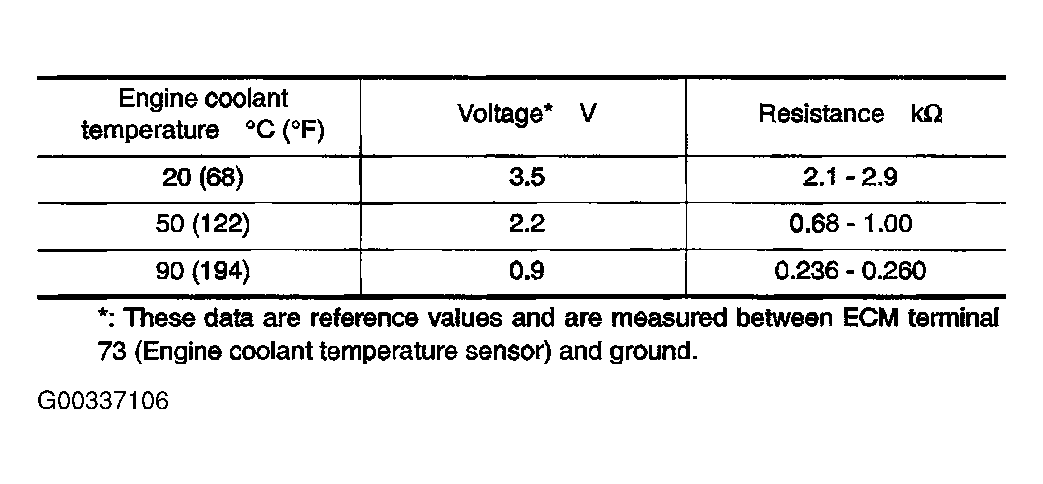

    < Reference data >

    Fig 2: Reference data
    G00337106Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If NG, replace engine coolant temperature sensor.
