Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.

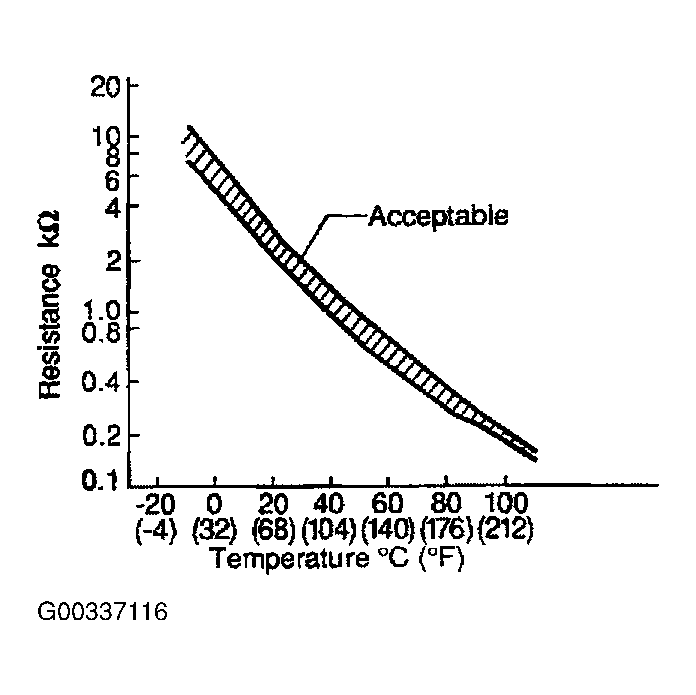

Fig 1: Component Inspection (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

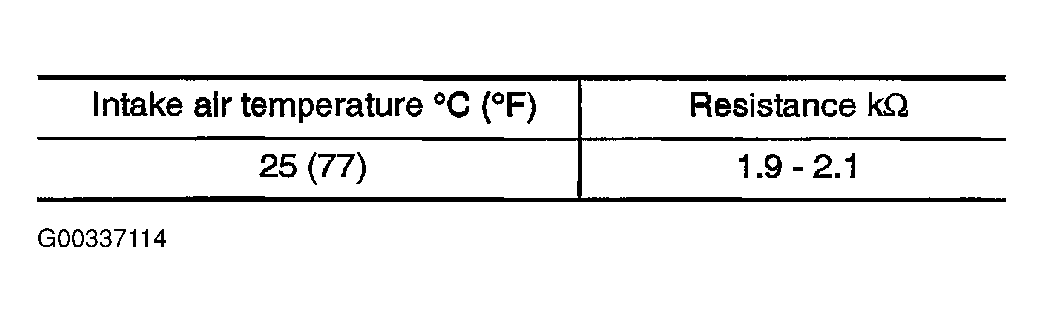

Fig 2: Component Inspection (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

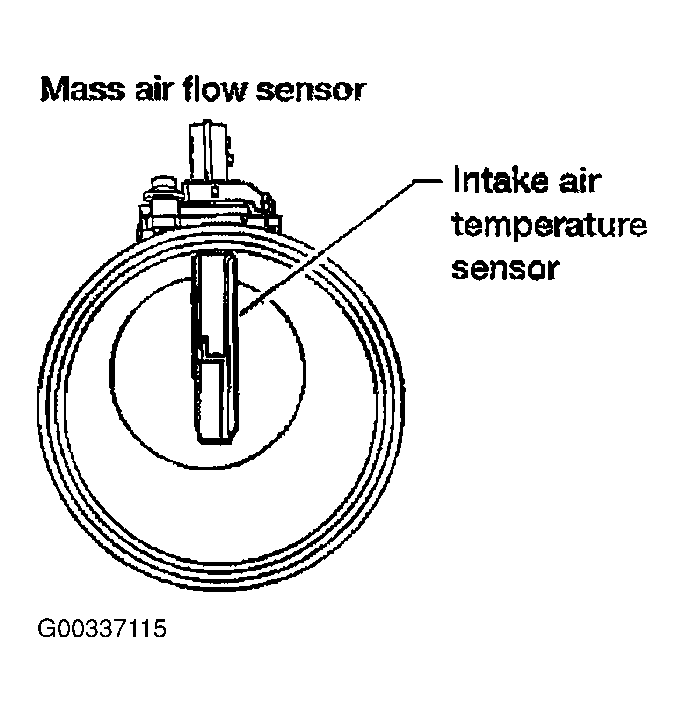

Fig 3: Component Inspection (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
