Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between "fuel level sensor unit and fuel pump" terminals 4 and 5 by heating with hot water or heat gun as shown in the figure.

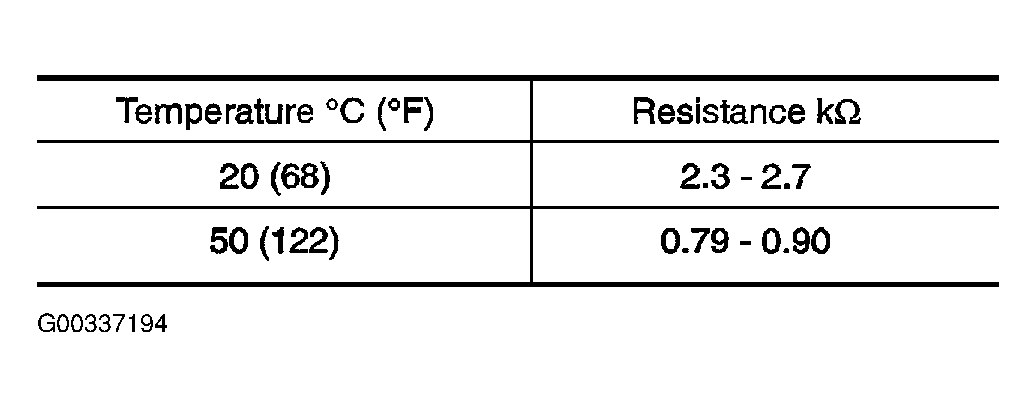

    Fig 1: Fuel Tank Temperature Sensor Component Inspection (1 Of 2)
    G00337194Courtesy of NISSAN MOTOR CO., U.S.A.

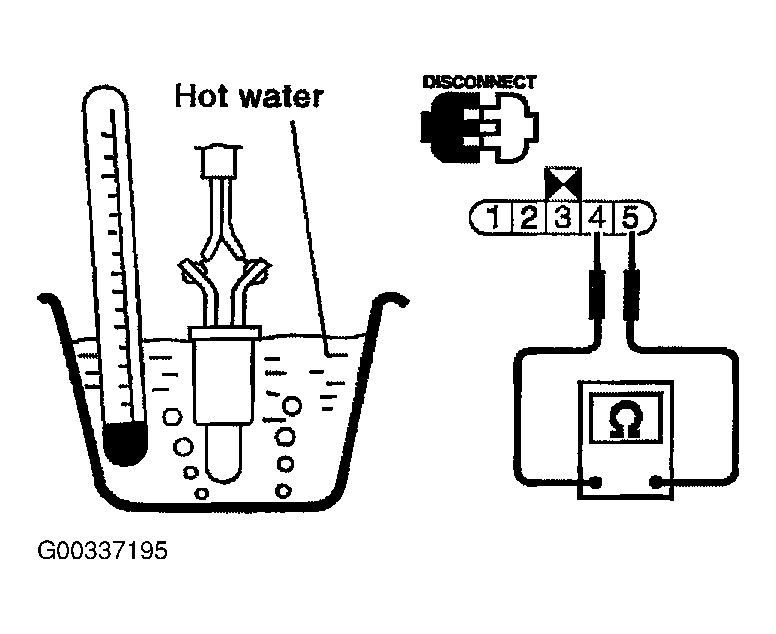

    Fig 2: Fuel Tank Temperature Sensor Component Inspection (2 Of 2)
    G00337195Courtesy of NISSAN MOTOR CO., U.S.A.
