EVAP Control Pressure Sensor

Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
Install a vacuum pump to EVAP control system pressure sensor.
Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.

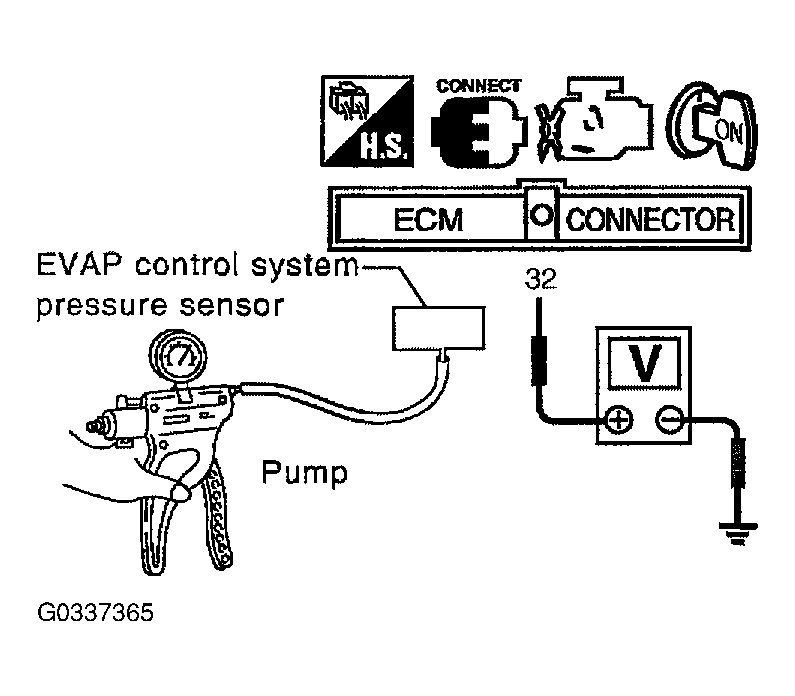

Fig 1: EVAP Control Pressure Sensor Inspection (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

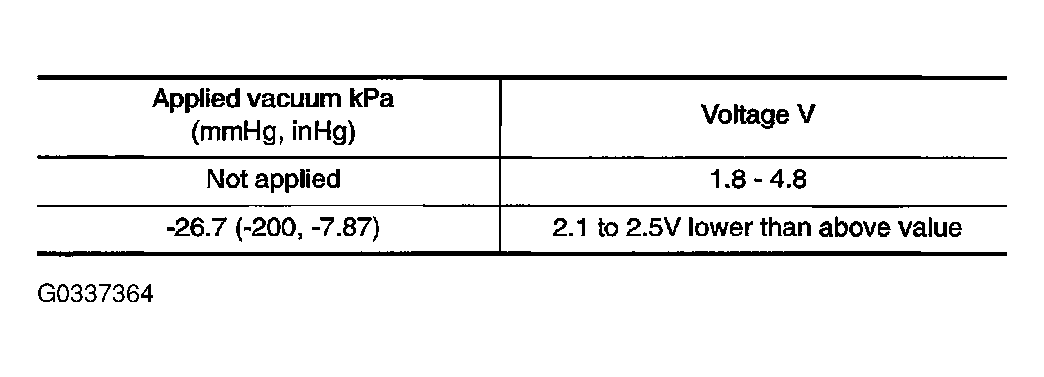

Fig 2: EVAP Control Pressure Sensor Inspection (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply below -93.3 kPa (-700 mm Hg, -27.56 in Hg) or pressure over 101.3 kPa (760 mm Hg, 29.92 in Hg).
If NG, replace EVAP control system pressure sensor.
