Throttle Control Motor

Disconnect electric throttle control actuator harness connector.
Check resistance between terminals 5 and 6.
1. Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
If NG, replace electric throttle control actuator and go to next step.
Perform Throttle Valve Closed Position Learning .
Perform Idle Air Volume Learning .

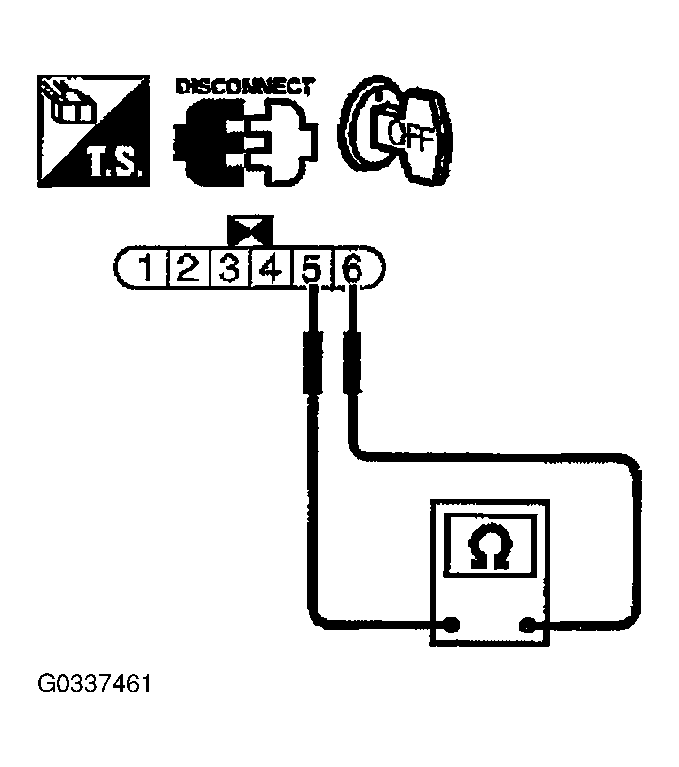

Fig 1: Checking Resistance
Courtesy of NISSAN MOTOR CO., U.S.A.
