ASCD Brake Switch

Turn ignition switch OFF.
Disconnect ASCD brake switch harness connector.
Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

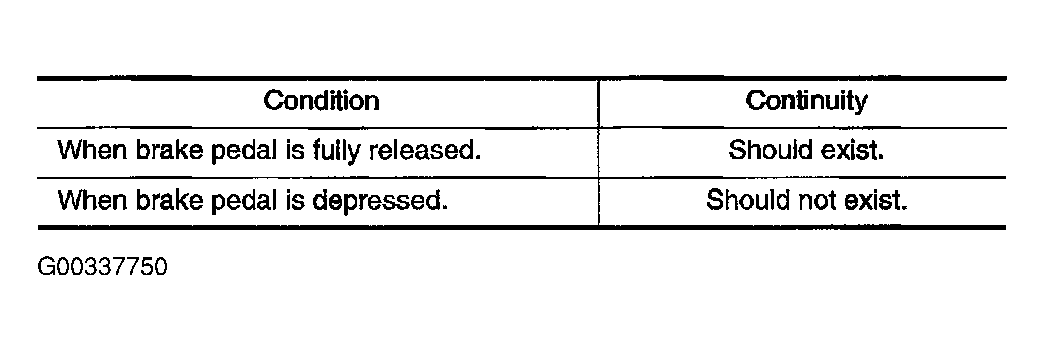

Fig 1: Checking Harness Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD brake switch installation, refer to ADJUSTMENTS , and perform step 3 again.

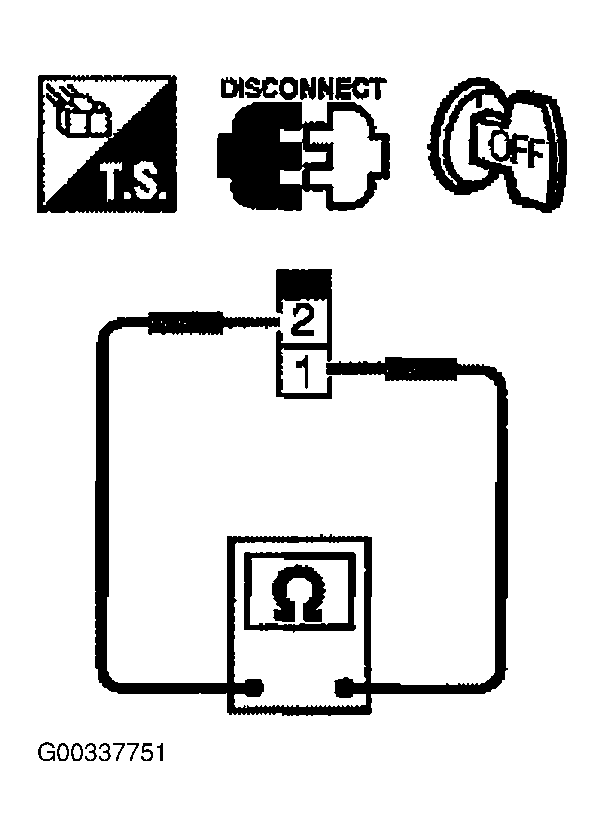

Fig 2: Checking ASCD Brake Switch Continuity

G00337751

Courtesy of NISSAN MOTOR CO., U.S.A.
