2. Check Overall Function-II

With CONSULT-II

Check "BRAKE SW2" indication in "DATA MONITOR" mode.

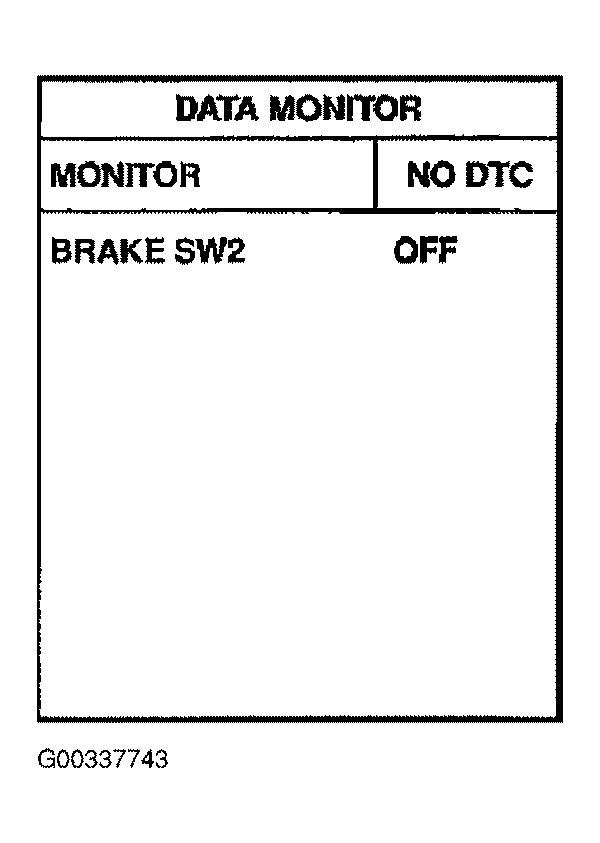

Fig 1: Checking Overall Function-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

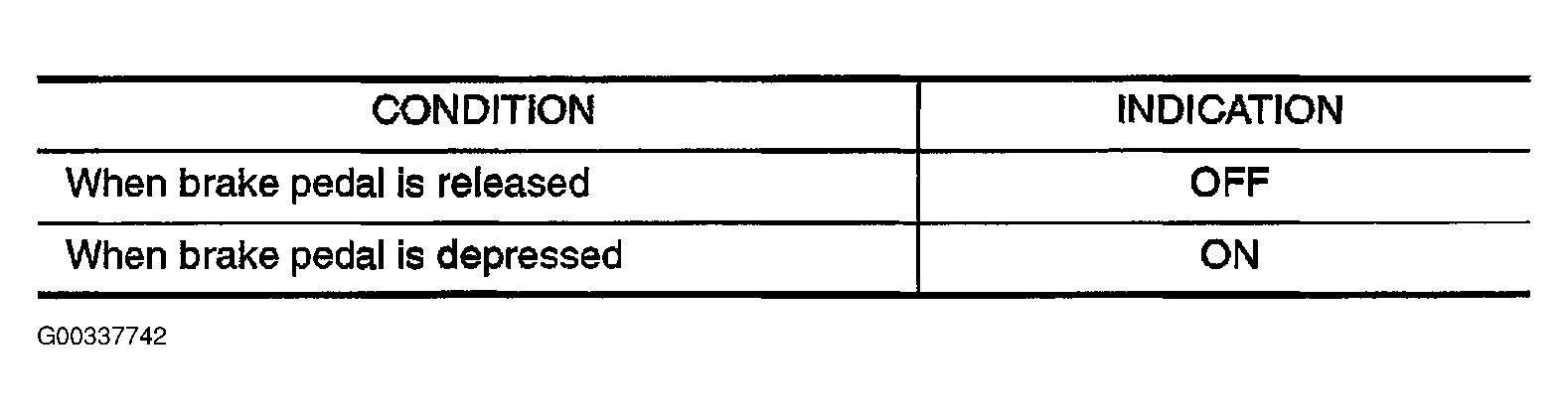

Fig 2: Checking Overall Function-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between ECM terminal 101 and ground under the following conditions.

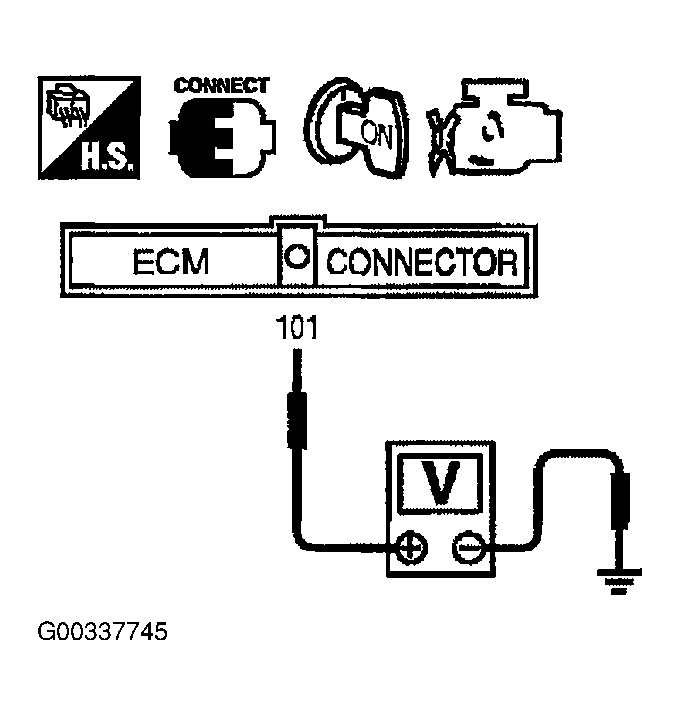

Fig 3: Check Voltage Between ECM Terminal 101 And Ground (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

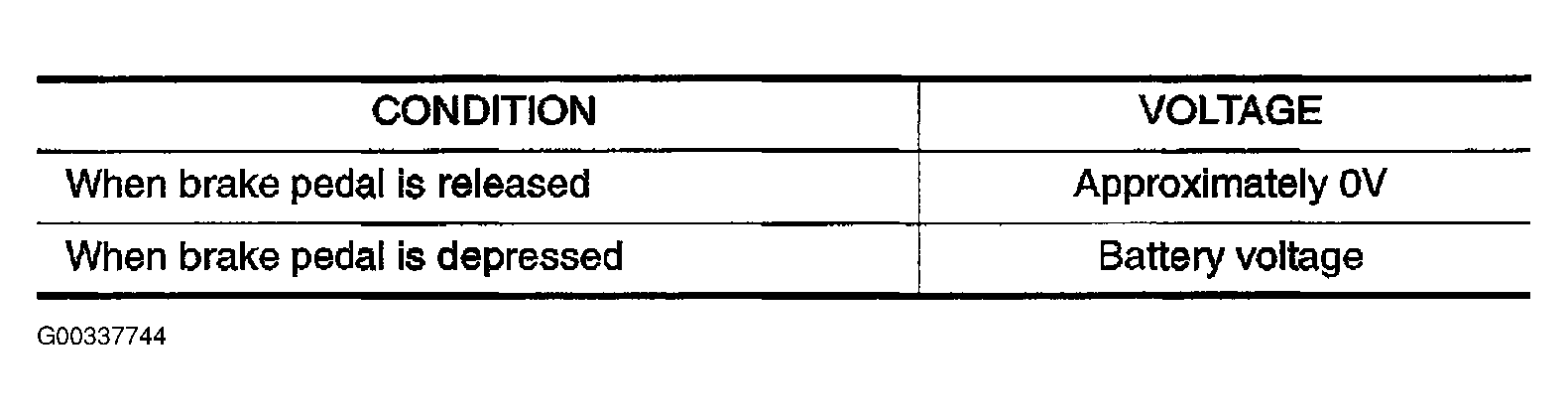

Fig 4: Check Voltage Between ECM Terminal 101 And Ground (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 11. CHECK INTERMITTENT INCIDENT .

NG >> GO TO 7. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT .
