Stop Lamp Switch

Disconnect stop lamp switch harness connector.

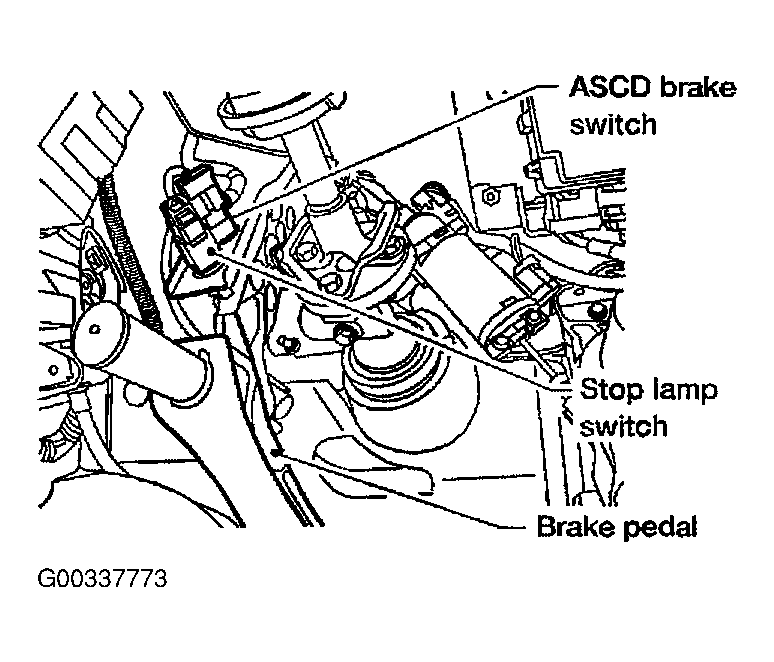

Fig 1: Locating Stop Lamp Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

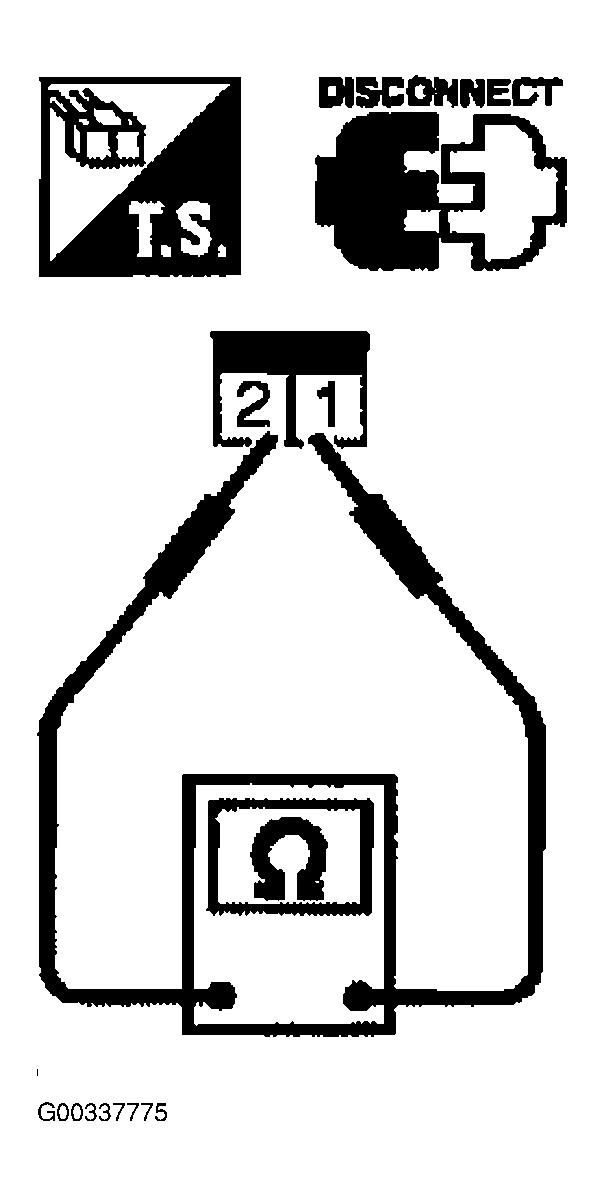

Fig 2: Checking Stop Lamp Switch (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

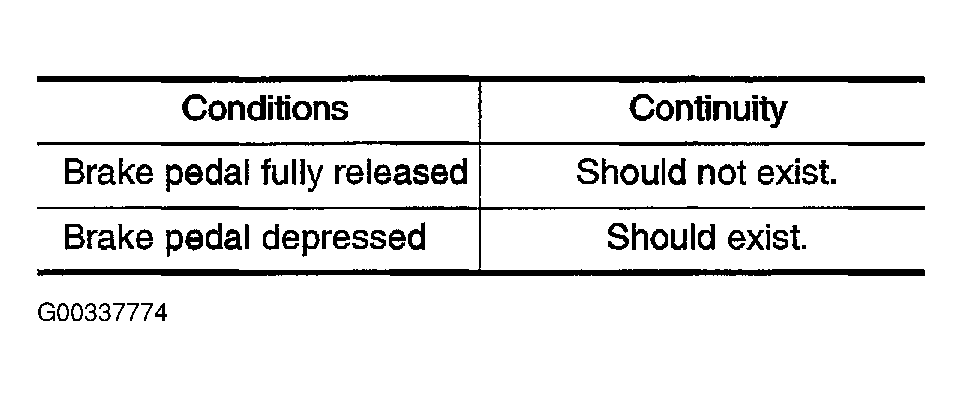

Fig 3: Checking Stop Lamp Switch (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, adjust stop lamp switch installation, refer to ADJUSTMENTS , and perform step 2 again.
