4. Check App Sensor 2 Power Supply Circuit-II
Check the following.

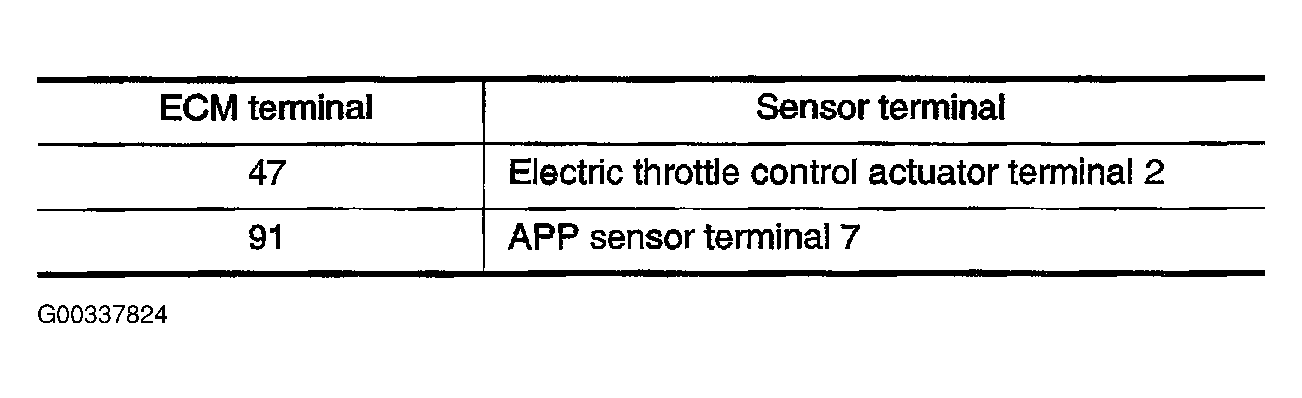

- Harness for short to power and short to ground, between the following terminals
- ECM pin terminal
OK or NG
OK >> GO TO 5. CHECK THROTTLE POSITION SENSOR .
NG >> Repair short to ground or short to power in harness connectors.
