Electronic Ignition (El) System INPUT/OUTPUT SIGNAL CHART: Notes

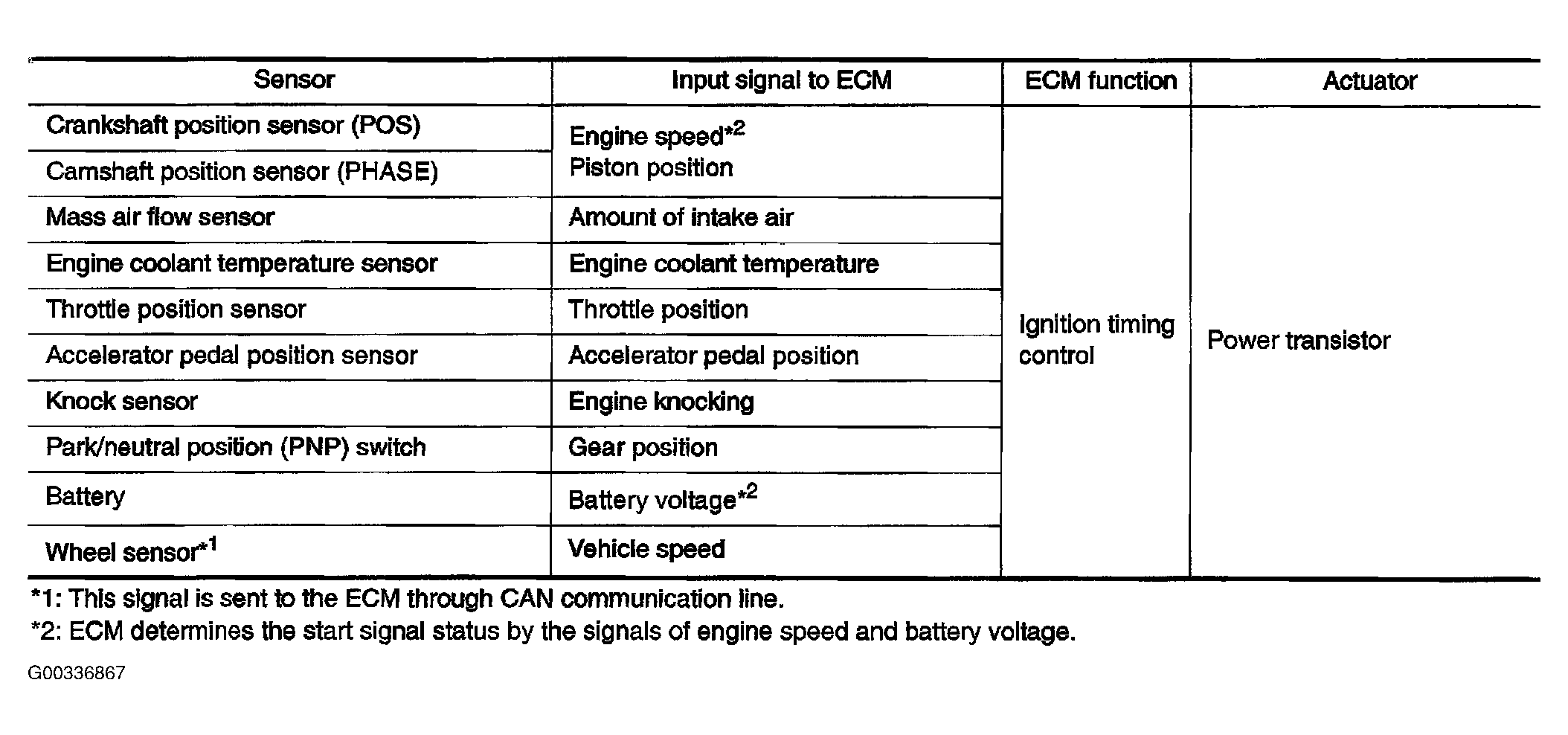

Fig 1: Electronic Ignition (El) System Input/Output Signal Chart
G00336867Courtesy of NISSAN MOTOR CO., U.S.A.
