Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals as 1 and 2. Resistance should be above 1 M. at 25°C (77°F).

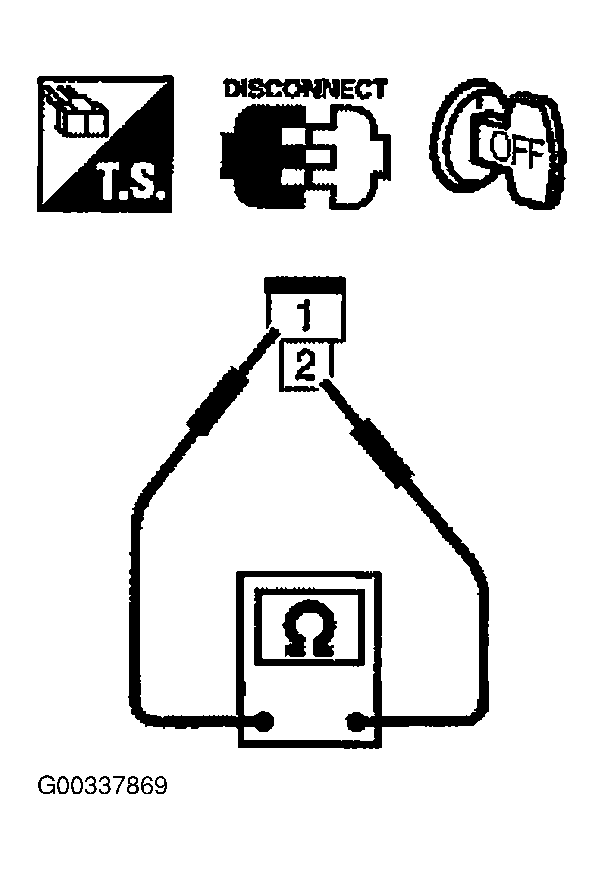

Fig 1: Checking Condenser
G00337869Courtesy of NISSAN MOTOR CO., U.S.A.
