Component Inspection: Condenser

  1. Turn ignition switch OFF.
  2. Disconnect condenser harness connector.
  3. Check resistance between condenser terminals 1 and 2.

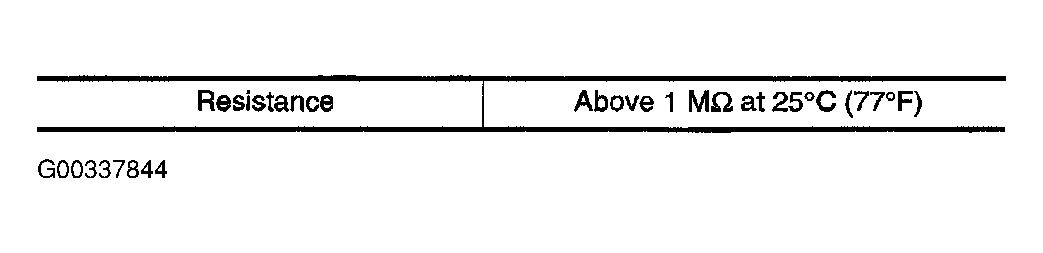

Fig 1: Checking Condenser (1 Of 2)
G00337844Courtesy of NISSAN MOTOR CO., U.S.A.

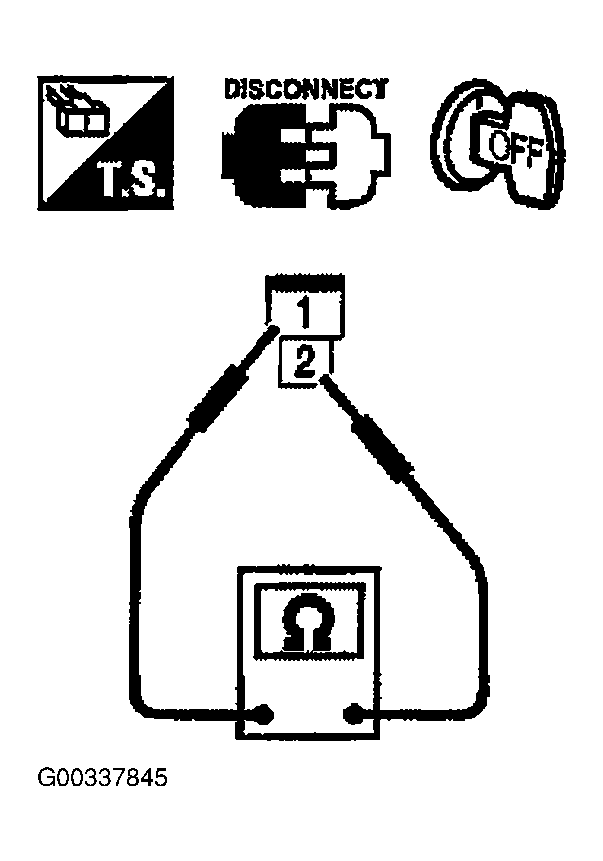

Fig 2: Checking Condenser (2 Of 2)
G00337845Courtesy of NISSAN MOTOR CO., U.S.A.
