Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.
    1. Resistance: 11.5 - 12.5Ω [at 20°C (68°F)]

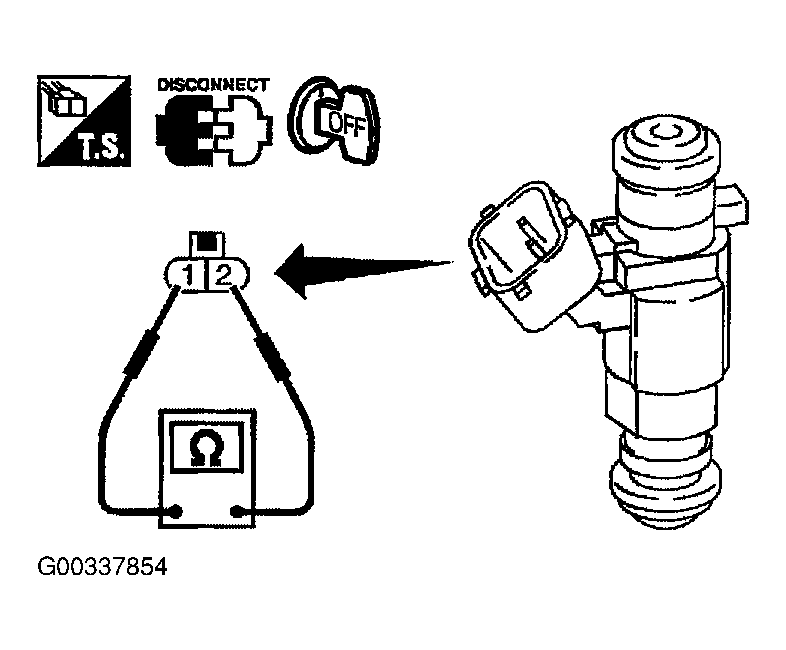

Fig 1: Checking Injector Resistance
G00337854Courtesy of NISSAN MOTOR CO., U.S.A.
