ECM Inspection Table: Notes

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

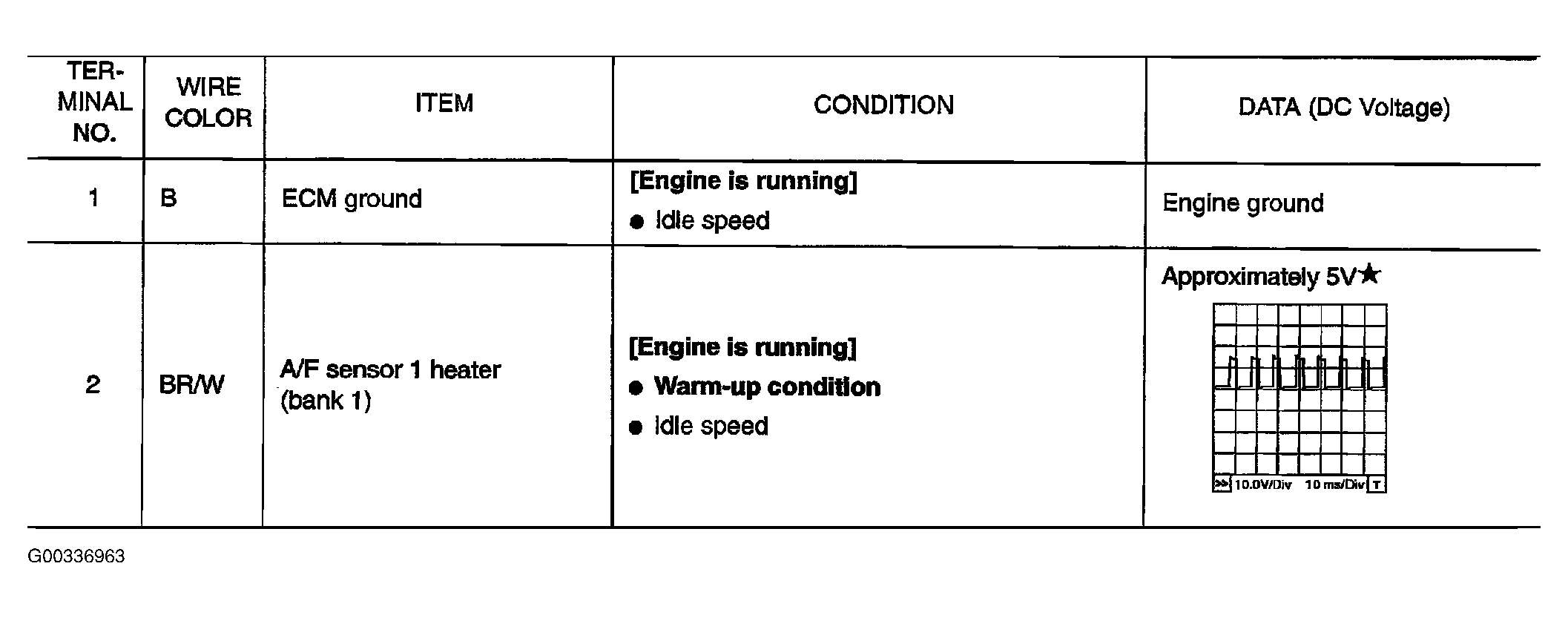

Fig 1: ECM Inspection Table (1 Of 8)

G00336963

Courtesy of NISSAN MOTOR CO., U.S.A.

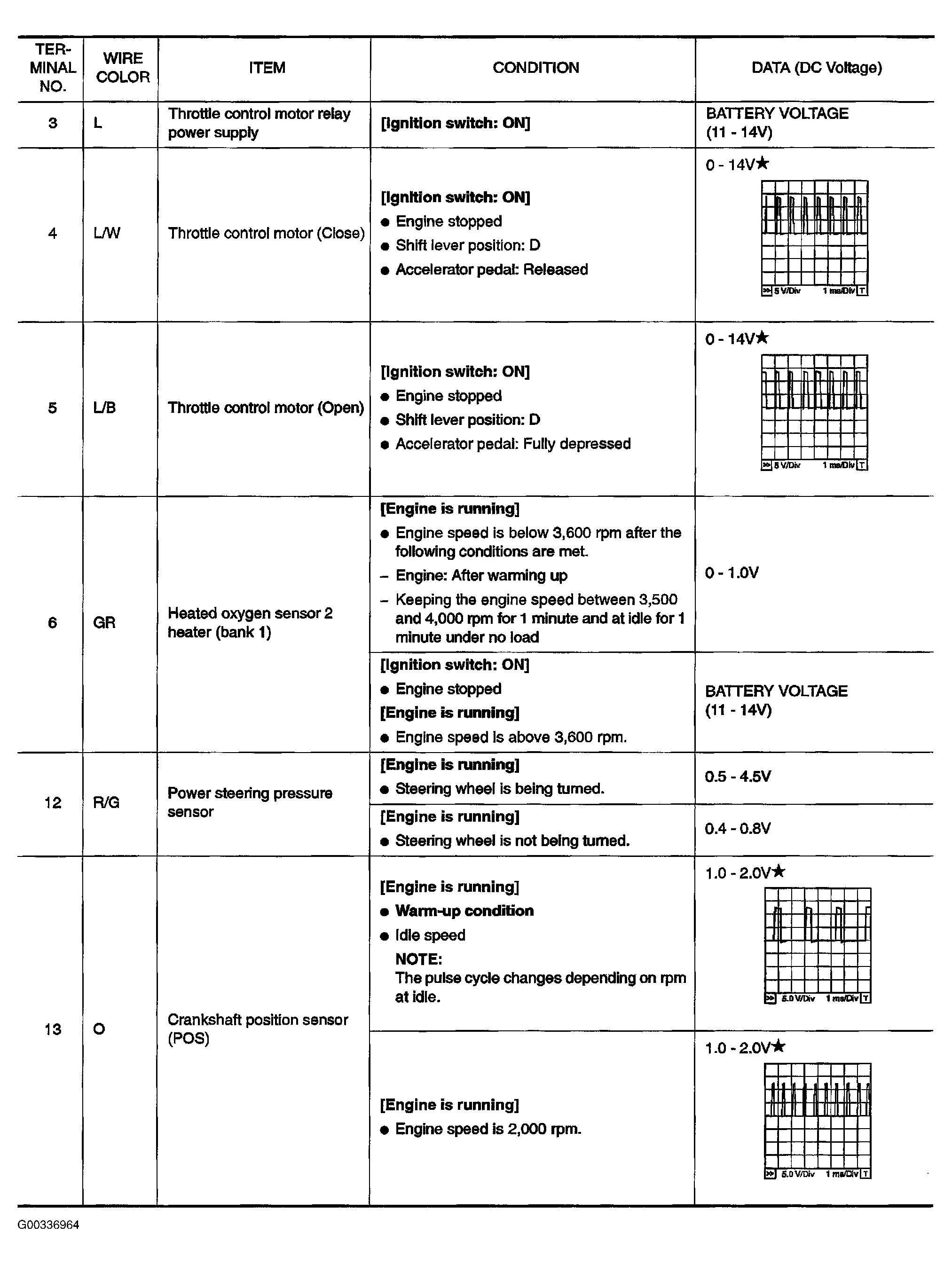

Fig 2: ECM Inspection Table (2 Of 8)

G00336964

Courtesy of NISSAN MOTOR CO., U.S.A.

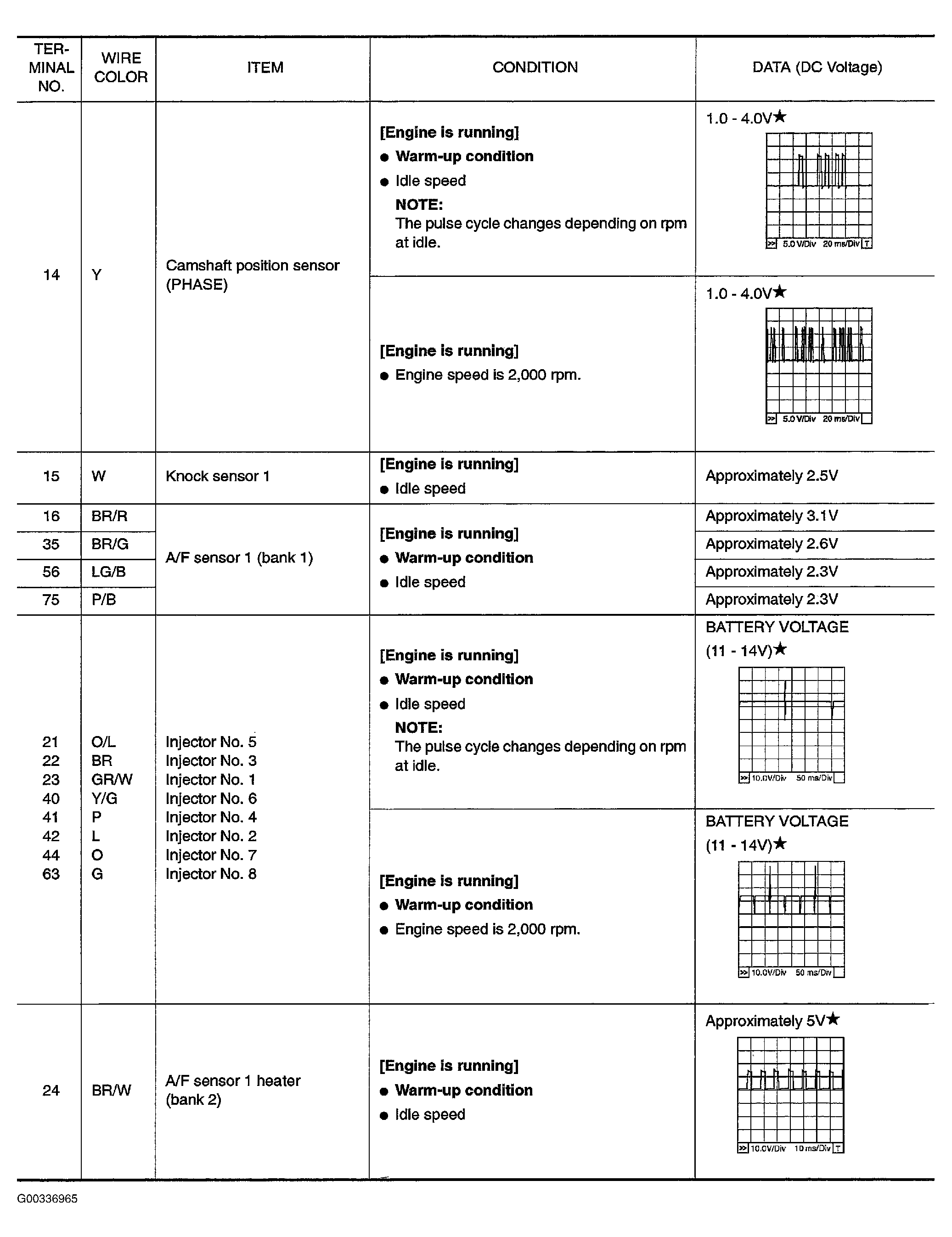

Fig 3: ECM Inspection Table (3 Of 8)

G00336965

Courtesy of NISSAN MOTOR CO., U.S.A.

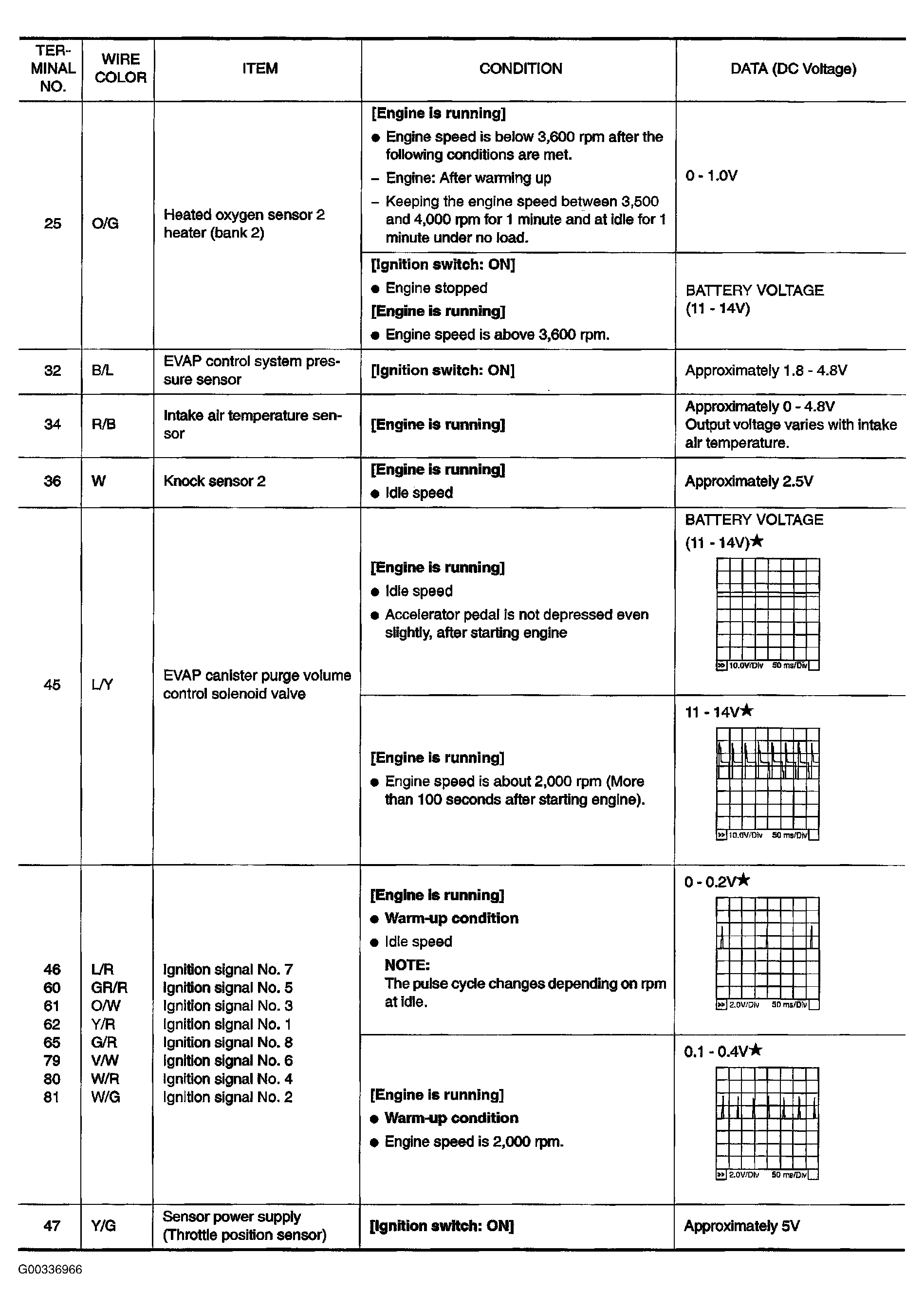

Fig 4: ECM Inspection Table (4 Of 8)

G00336966

Courtesy of NISSAN MOTOR CO., U.S.A.

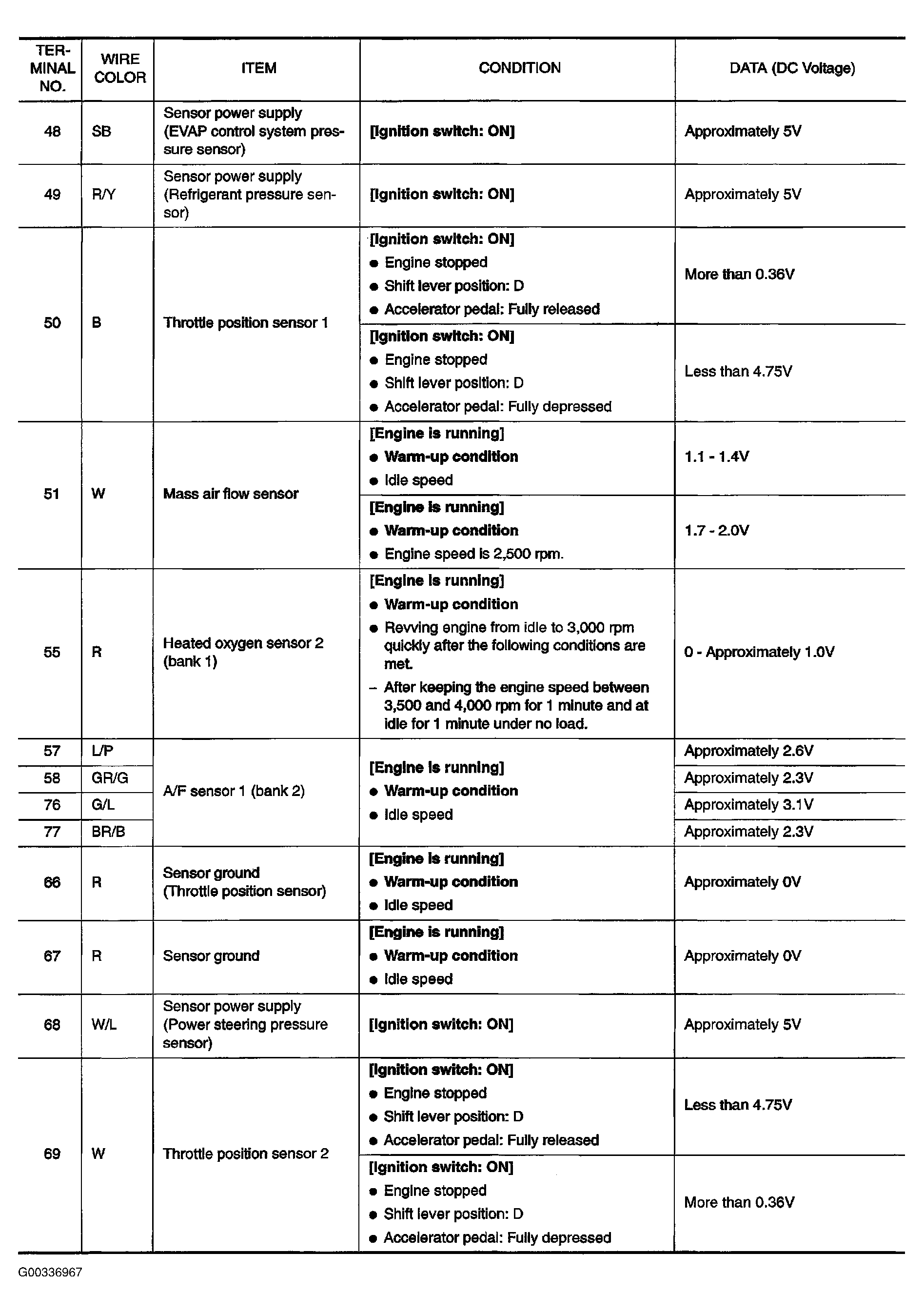

Fig 5: ECM Inspection Table (5 Of 8)

G00336967

Courtesy of NISSAN MOTOR CO., U.S.A.

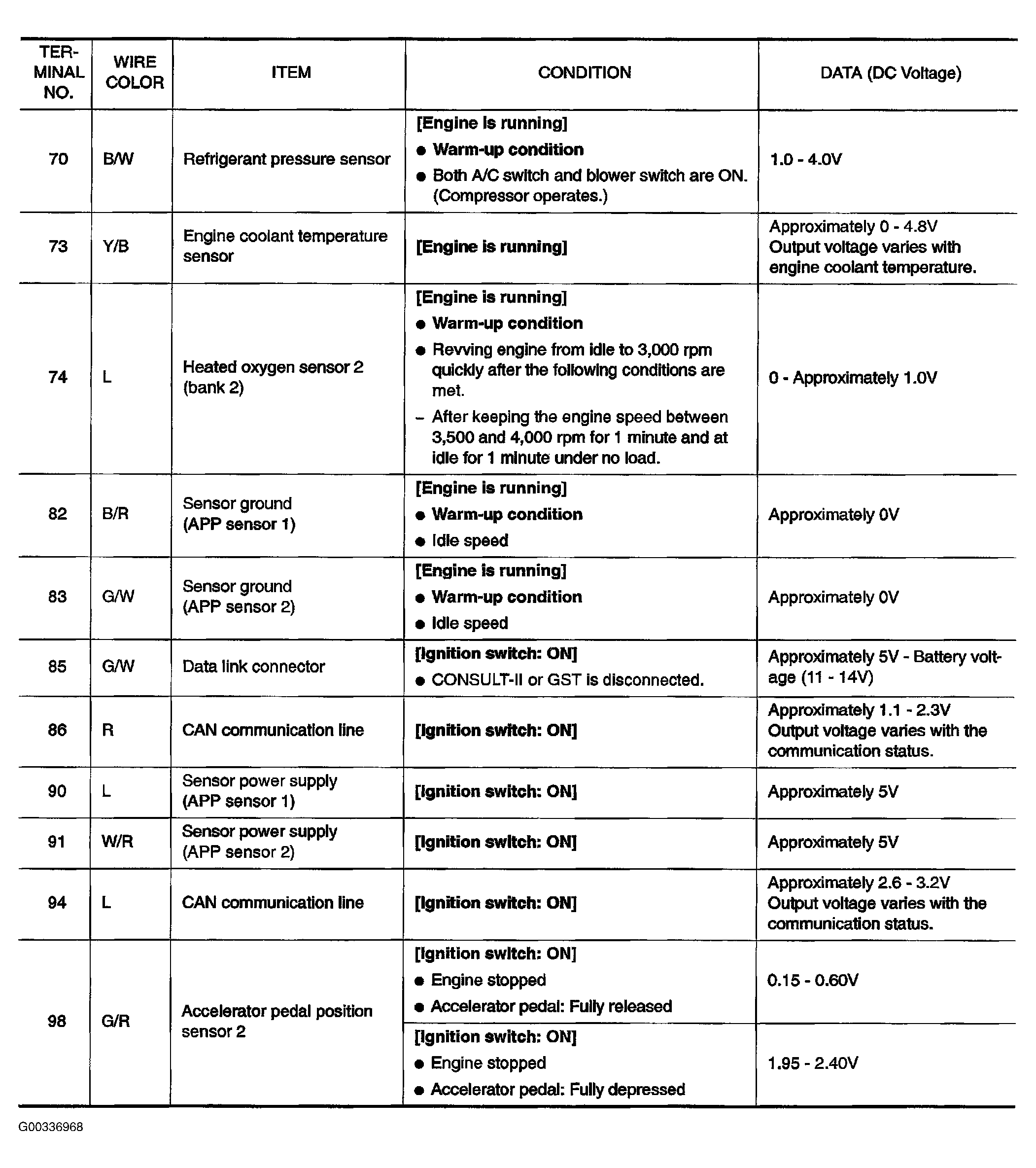

Fig 6: ECM Inspection Table (6 Of 8)

G00336968

Courtesy of NISSAN MOTOR CO., U.S.A.

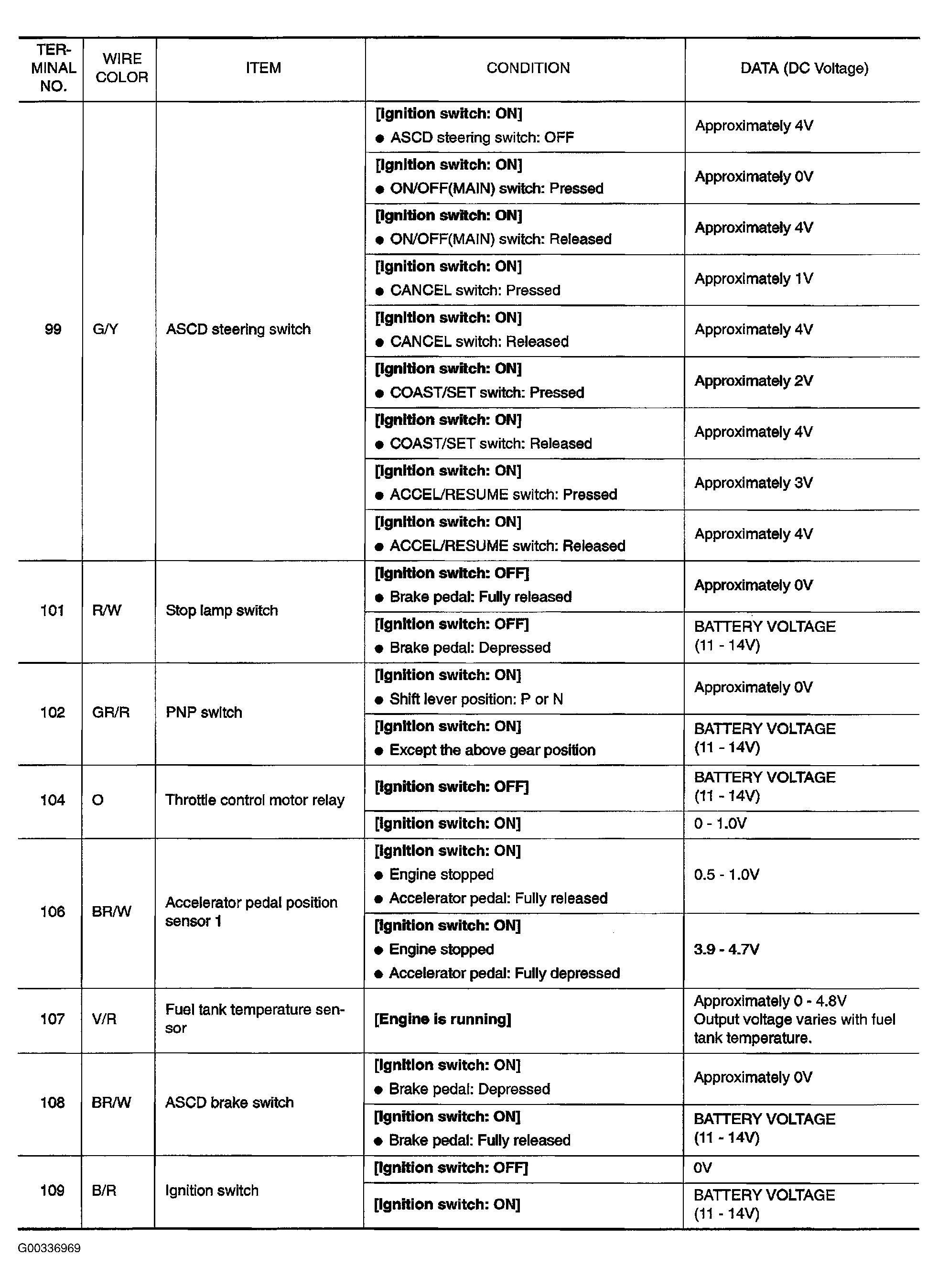

Fig 7: ECM Inspection Table (7 Of 8)

G00336969

Courtesy of NISSAN MOTOR CO., U.S.A.

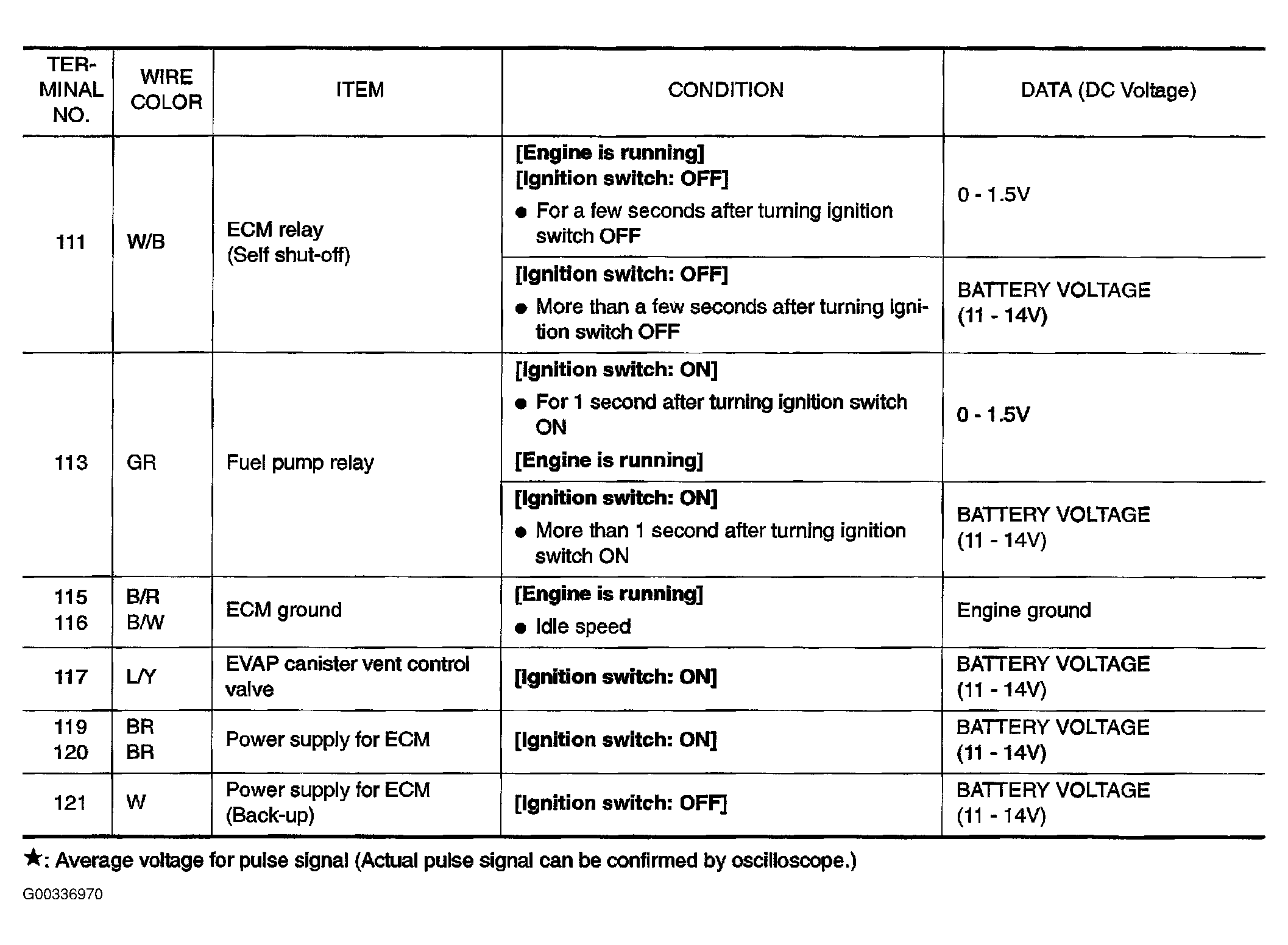

Fig 8: ECM Inspection Table (8 Of 8)

G00336970

Courtesy of NISSAN MOTOR CO., U.S.A.
