System --- Basic Engine Control System

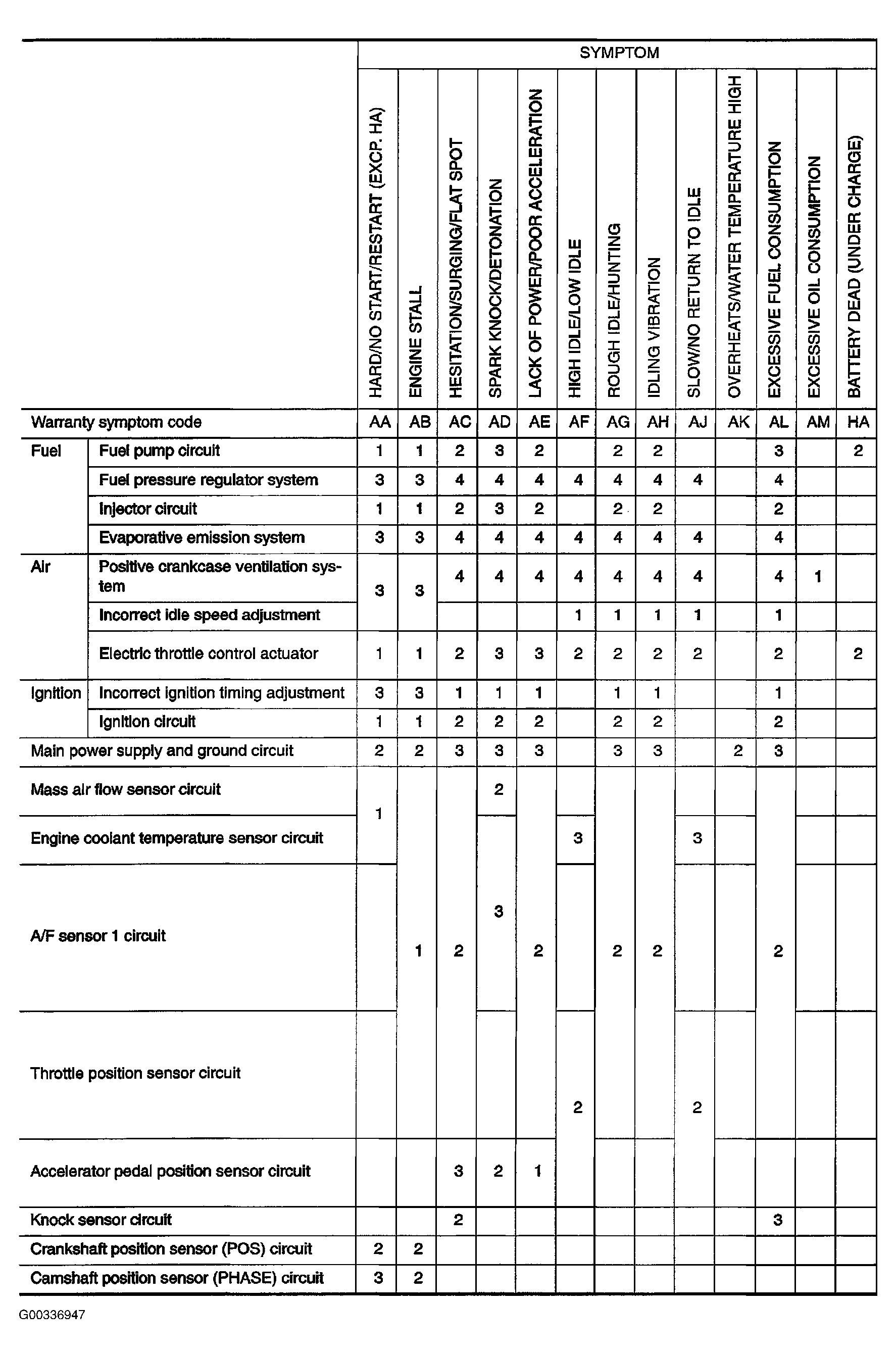

Fig 1: System --- Basic Engine Control System (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

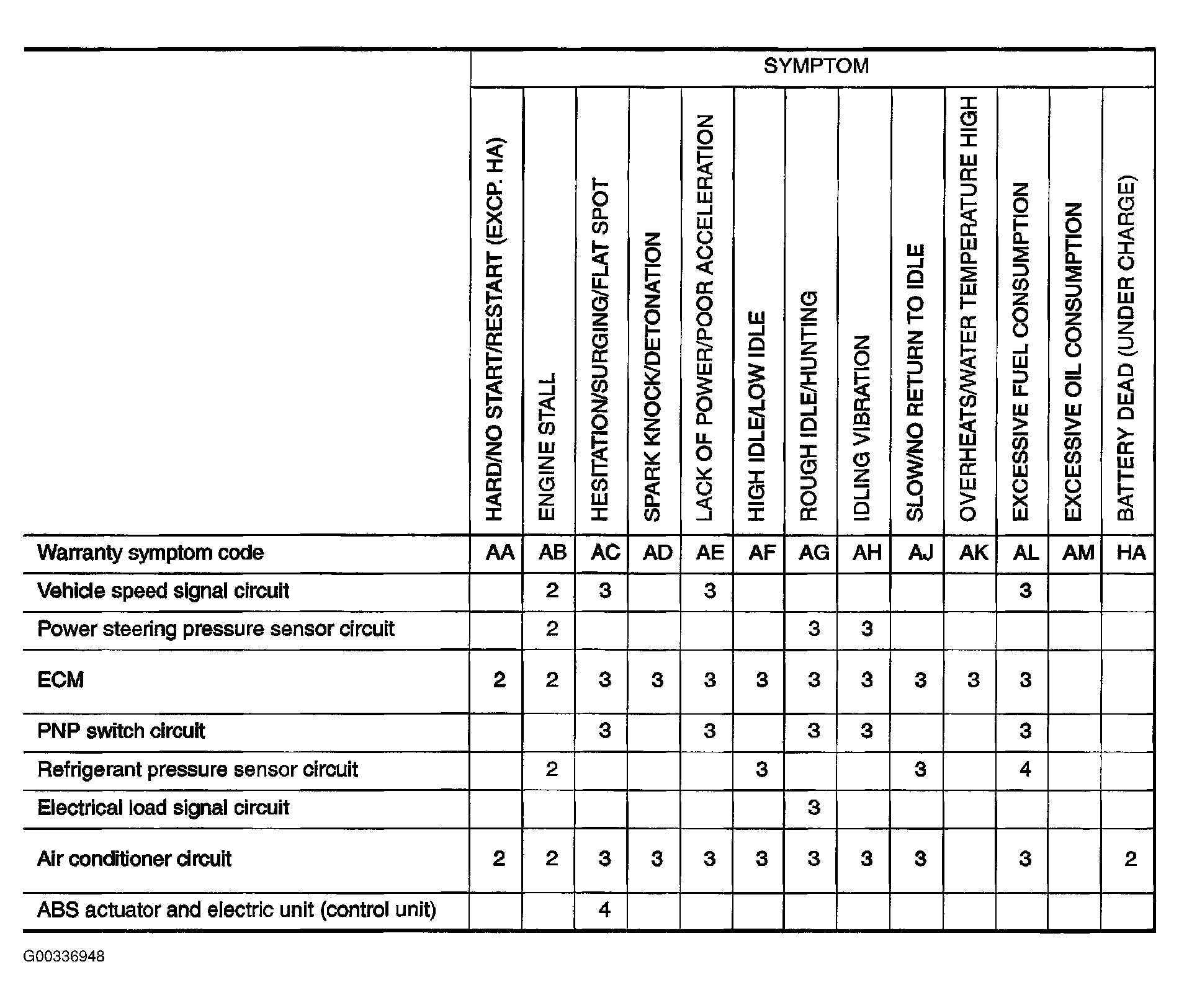

Fig 2: System --- Basic Engine Control System (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1-6: The number refer to the order of inspection.
