Diagnostic Procedure

  1. INSPECTION START

    Which malfunction (A or B) is duplicated?

    A or B

    1. A >> GO TO  3.
    2. B >> GO TO  2.
  2. CHECK INTAKE SYSTEM

    Check the following for connection.

    • Air duct
    • Vacuum hoses
    • Intake air passage between air duct to intake manifold

    OK or NG

    1. OK >> GO TO  3.
    2. NG >> Reconnect the parts.
  3. RETIGHTEN GROUND SCREWS
    1. Turn ignition switch OFF.
    2. Loosen and retighten ground three screws on the body.

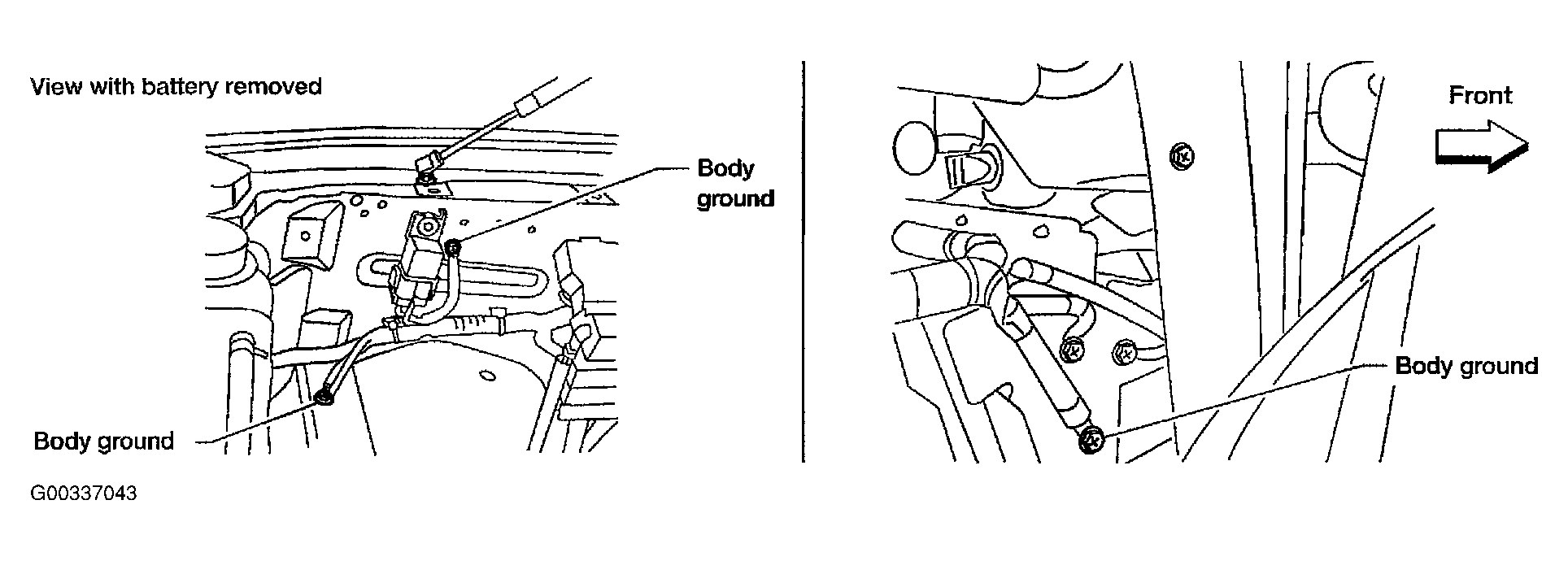

      Fig 1: Location Of Ground Screws
      G00337043Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Refer to Diagnostic Procedure  .

    OK or NG

    1. OK >> GO TO  4.
    2. NG >> Repair or replace ground connections.
  4. CHECK MAF SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect Mass Air Flow (MAF) sensor harness connector.
    2. Turn ignition switch ON.

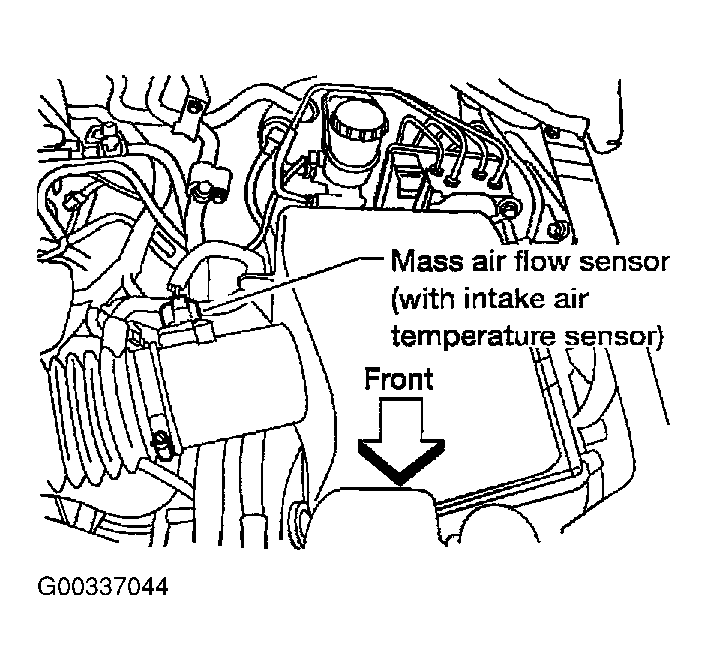

      Fig 2: Locating MAF Sensor
      G00337044Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between MAF sensor terminal 2 and ground with CONSULT-II or tester.
      1. Voltage: Battery voltage

    OK or NG

    1. OK >> GO TO  6.
    2. NG >> GO TO  5.

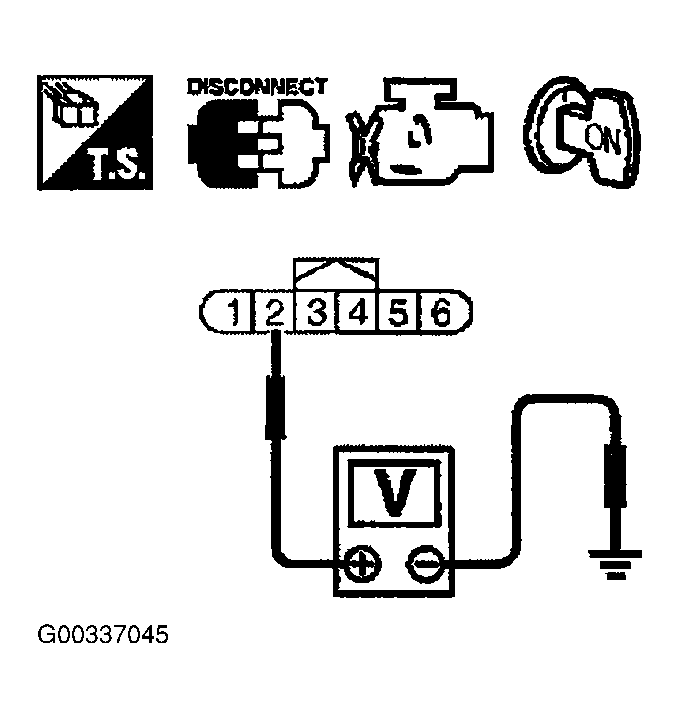

      Fig 3: Checking MAF Power Supply Voltage
      G00337045Courtesy of NISSAN MOTOR CO., U.S.A.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E19, F33
    • Harness for open or short between IPDM E/R and mass air flow sensor
    • Harness for open or short between mass air flow sensor and ECM
    1. >> Repair harness or connectors.
  6. CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK >> GO TO  7.
    2. NG >> Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between MAF sensor terminal 4 and ECM terminal 51. Refer to Wiring Diagram  .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK >> GO TO  8.
    2. NG >> Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK MASS AIR FLOW SENSOR

    Refer to Component Inspection  .

    OK or NG

    1. OK >> GO TO  9.
    2. NG >> Replace mass air flow sensor.
  9. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

    1. >> INSPECTION END
