< Reference data >

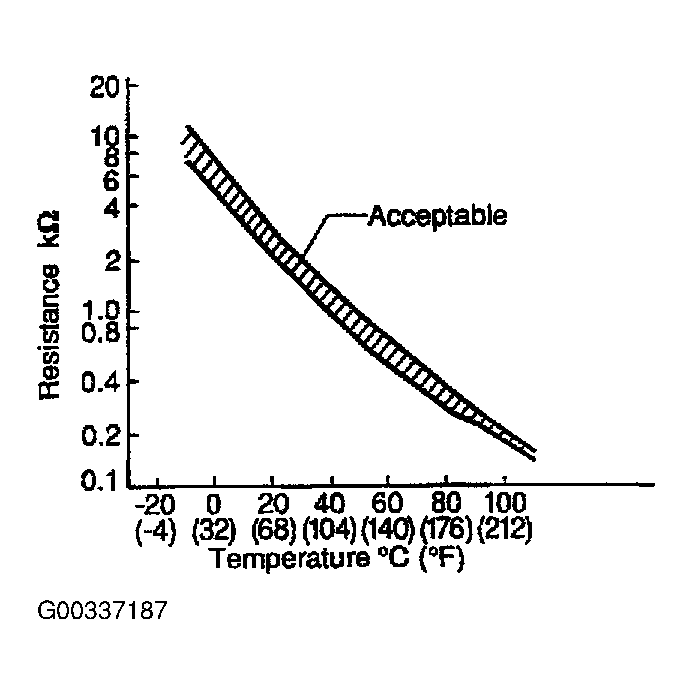

Fig 1: Reference Data (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

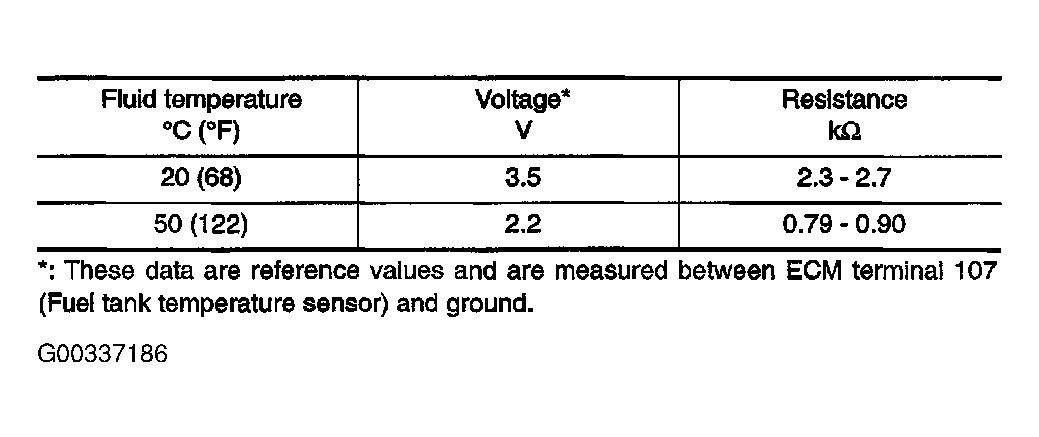

Fig 2: Reference Data (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
