Power Steering Pressure Sensor

  1. Reconnect all harness connectors disconnected.
  2. Start engine and let it idle.
  3. Check voltage between ECM terminal 12 and ground under the following conditions.

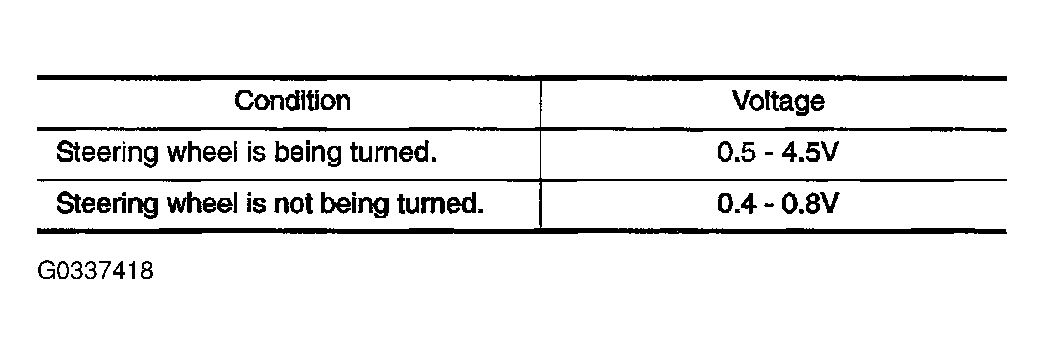

    Fig 1: Inspecting Power Steering Pressure Sensor (2 Of 2)
    G0337418Courtesy of NISSAN MOTOR CO., U.S.A.

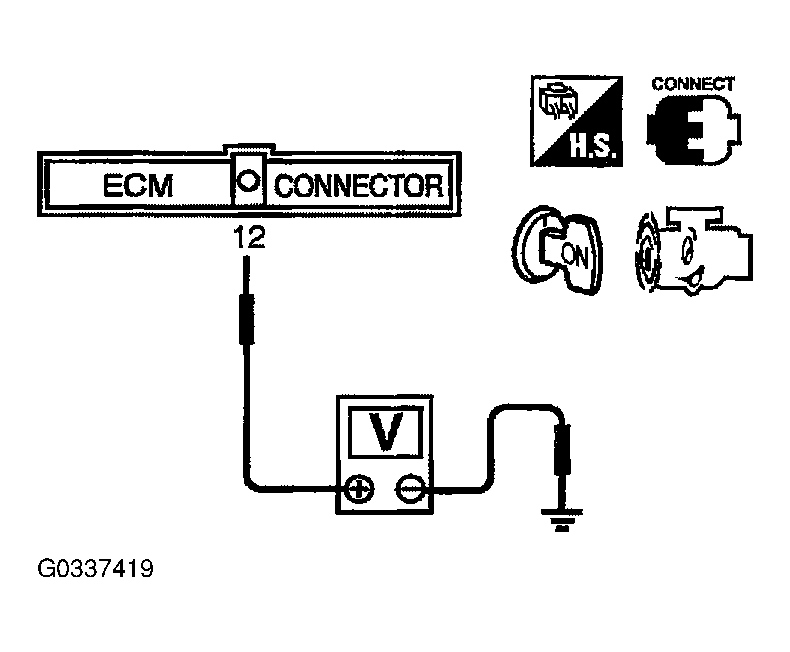

    Fig 2: Inspecting Power Steering Pressure Sensor (2 Of 2)
    G0337419Courtesy of NISSAN MOTOR CO., U.S.A.
