With GST

Turn ignition switch ON.
Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

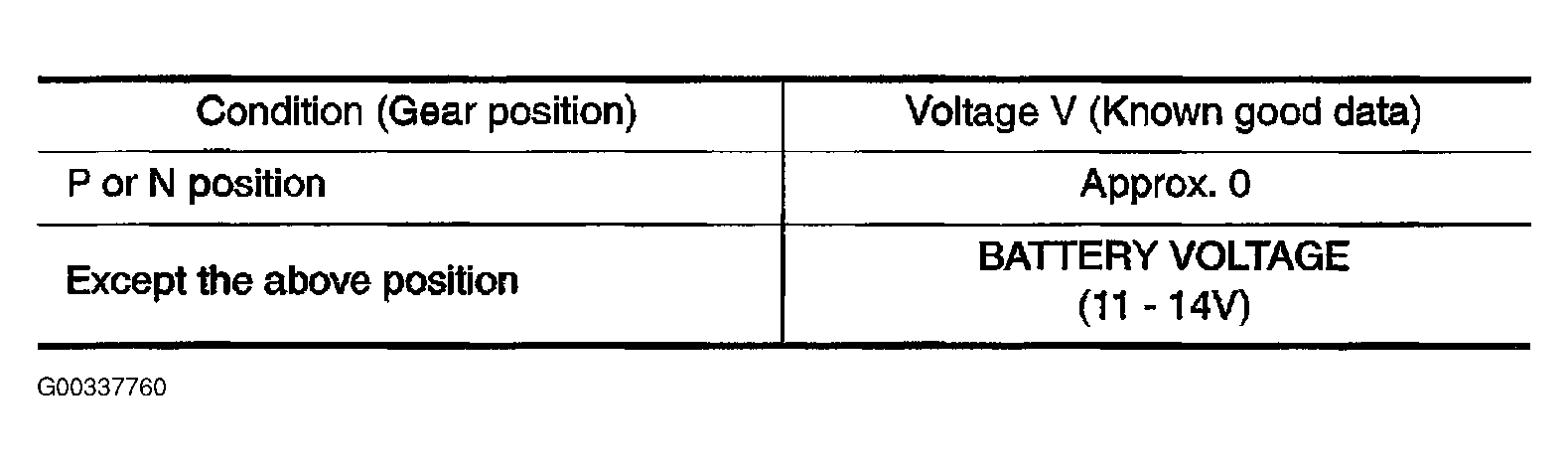

Fig 1: Testing Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

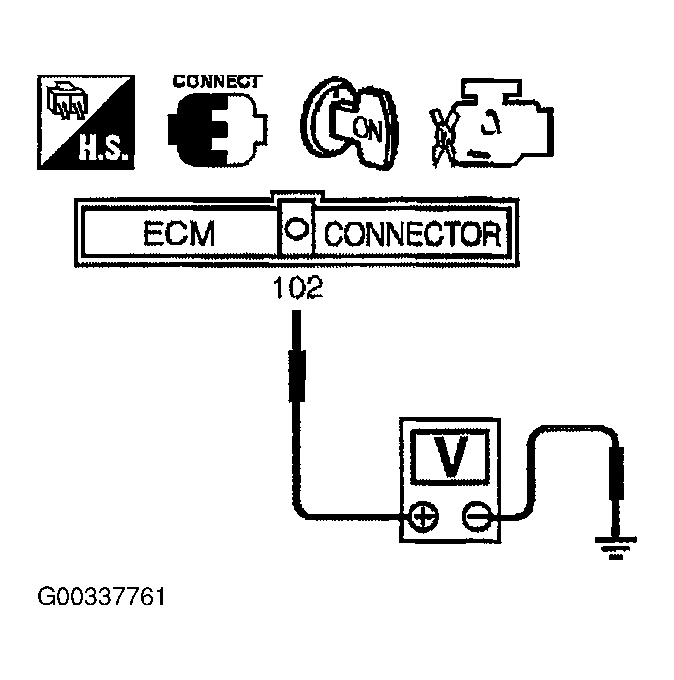

Fig 2: Checking Voltage Between ECM Terminal 102 and ground
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, go to Diagnostic Procedure .
