Accelerator Pedal Position Sensor

Reconnect all harness connectors disconnected.
Turn ignition switch ON.
Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and engine ground under the following conditions.

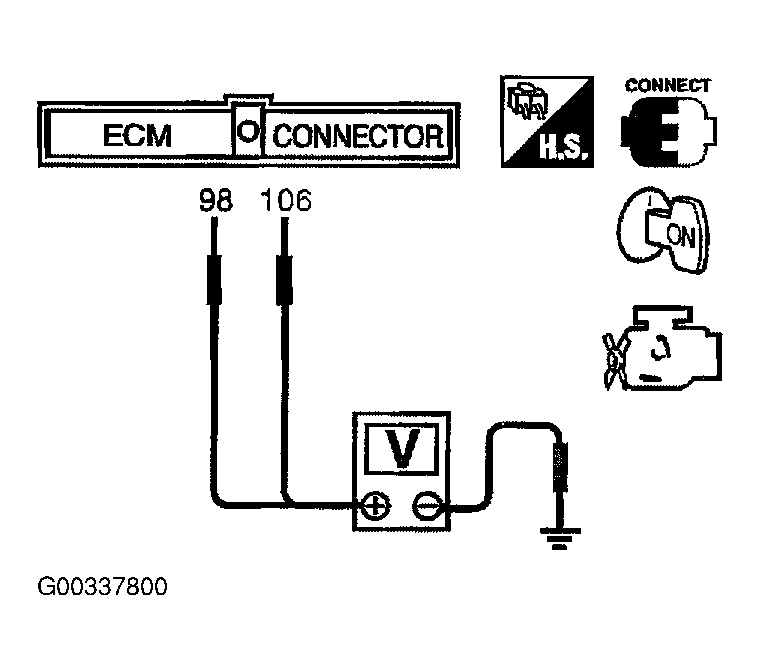

Fig 1: Inspecting Accelerator Pedal Position Sensor (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

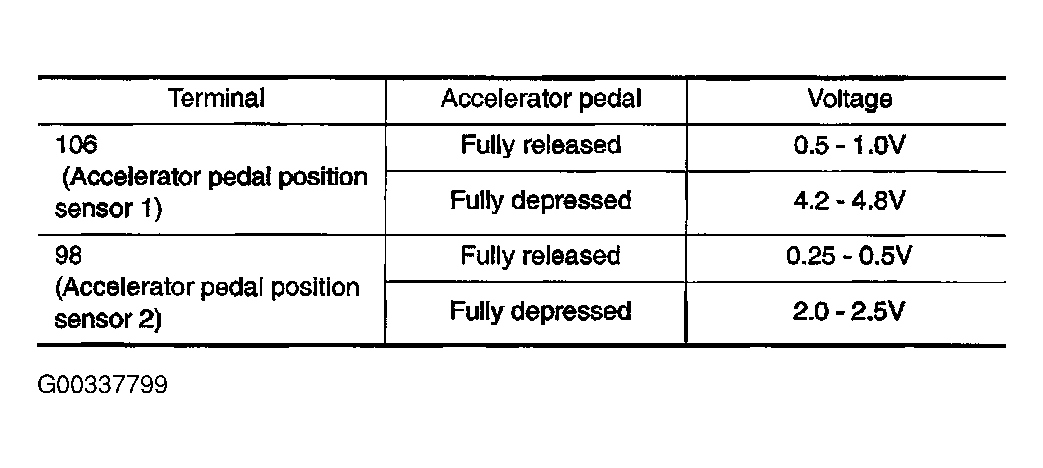

Fig 2: Inspecting Accelerator Pedal Position Sensor (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace accelerator pedal assembly and go to next step.
Perform Accelerator Pedal Released Position Learning .
Perform Throttle Valve Closed Position Learning .
Perform Idle Air Volume Learning .
