Test Item

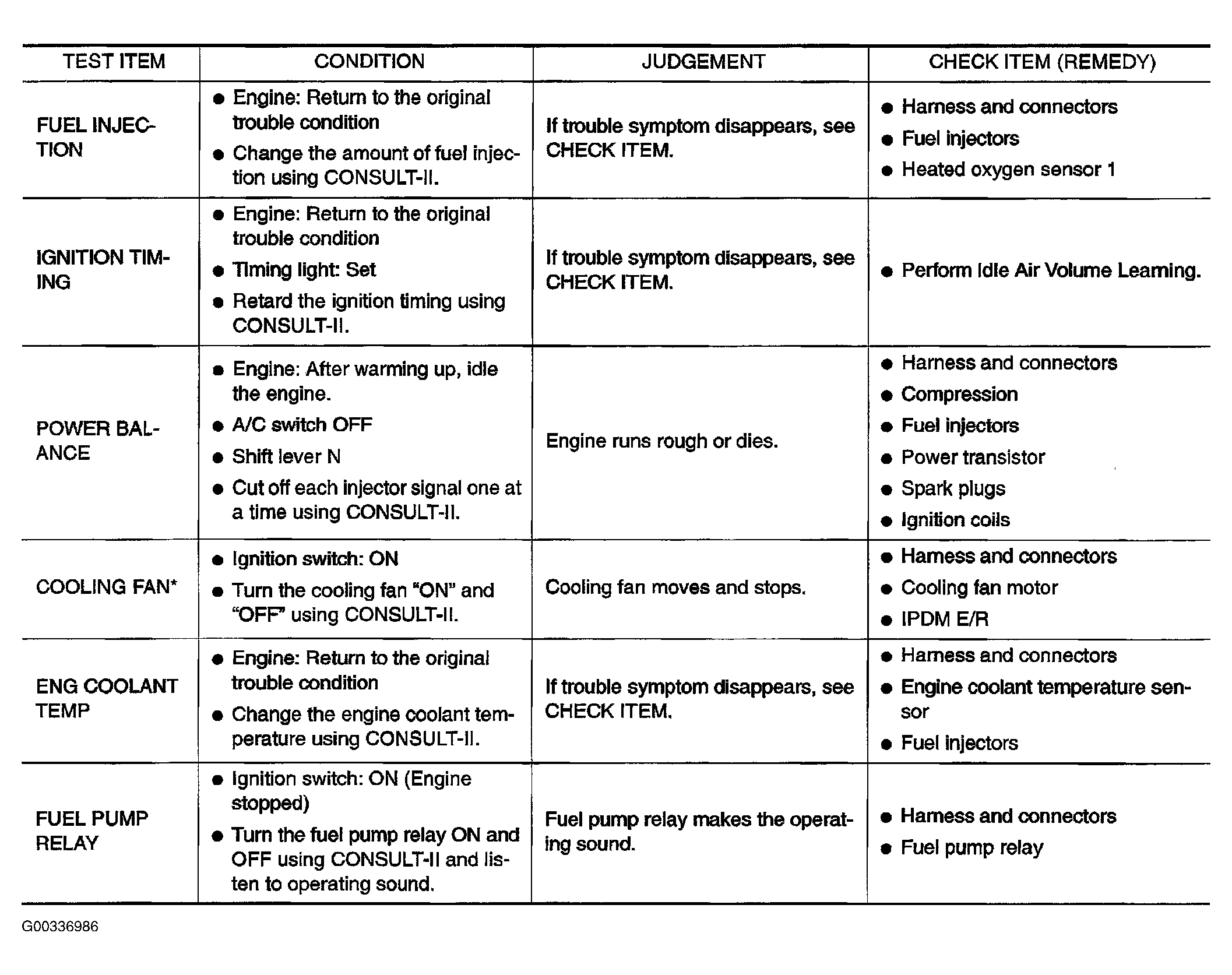

Fig 1: Test Item (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

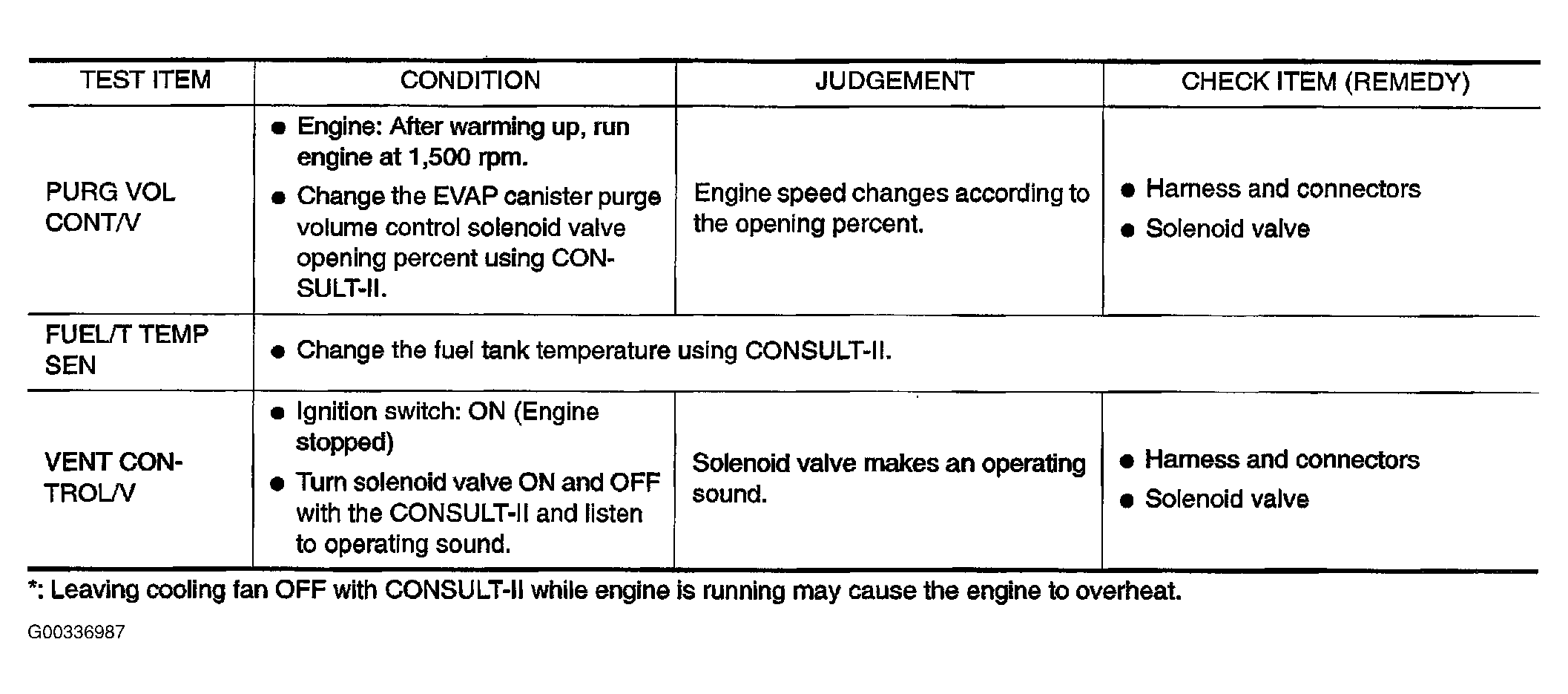

Fig 2: Test Item (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
