1. Check Key Switch Input Signal

  1. Check voltage between smart entrance control unit harness connector M111 terminal 25 (W/G) and ground.

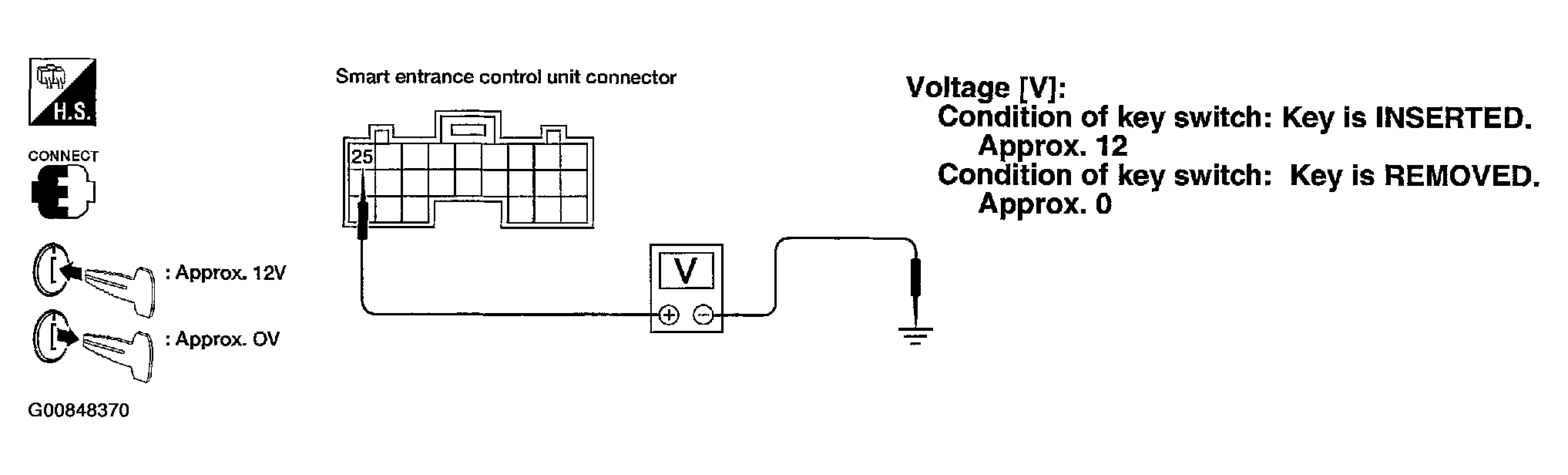

    Fig 1: Checking Key Switch Input Signal
    G00848370Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Refer to WIRING DIAGRAM - D/LOCK  .

OK or NG

  1. OK: Key switch is OK.
  2. NG: GO TO 2  .
