1. Check ASCD Steering Switch Circuit For ASCD Control Unit

Check resistance between ASCD control unit harness connector M119 terminals 11 (G/OR) and 24 (LG/B).

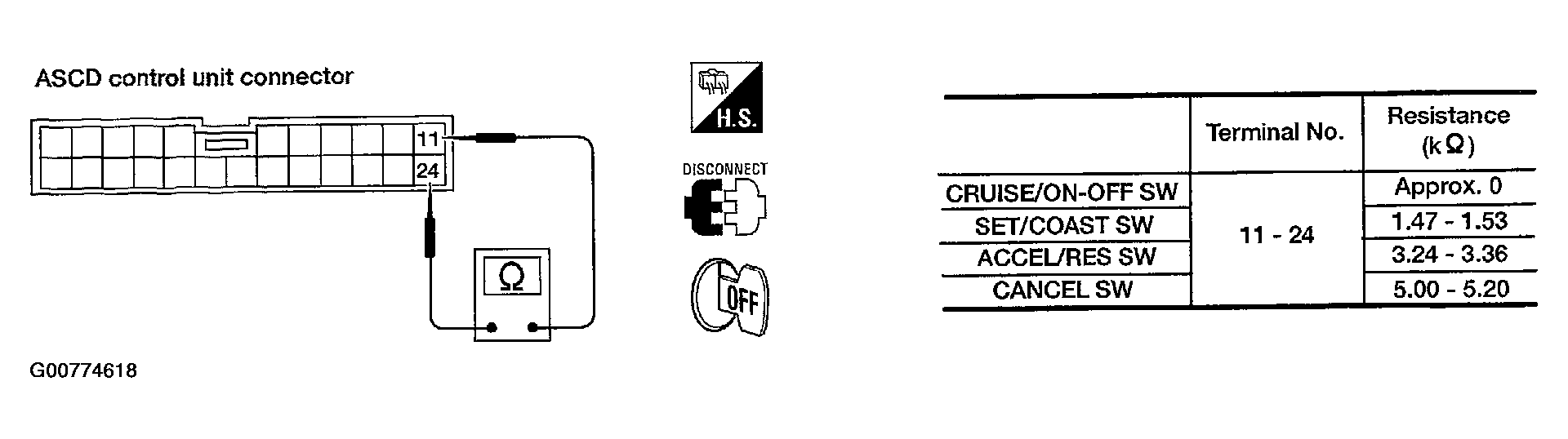

Fig 1: Checking ASCD Steering Switch Circuit for ASCD Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to WIRING DIAGRAMS - ASCD  .

OK or NG

1. OK: ASCD steering switch is OK.
2. NG: GO TO 2  .
