2. Check Ground Circuit For ASCD Control Unit

Check continuity between ASCD control unit harness connector M119 terminal 17 (B) and ground.

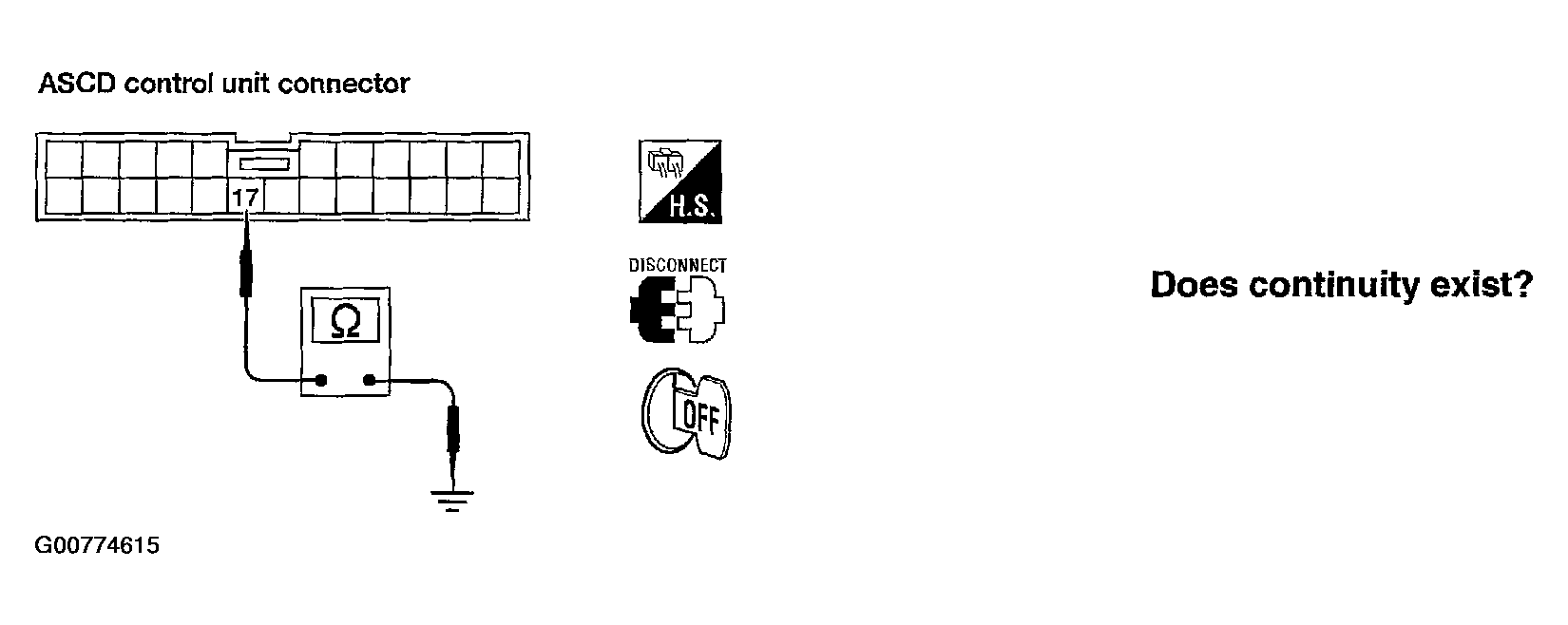

Fig 1: Check Ground Circuit for ASCD Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to WIRING DIAGRAMS - ASCD  .

1. Yes: Power supply and ground circuit are OK.
2. No: Repair harness.
