Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00257561

Courtesy of NISSAN MOTOR CO., U.S.A.

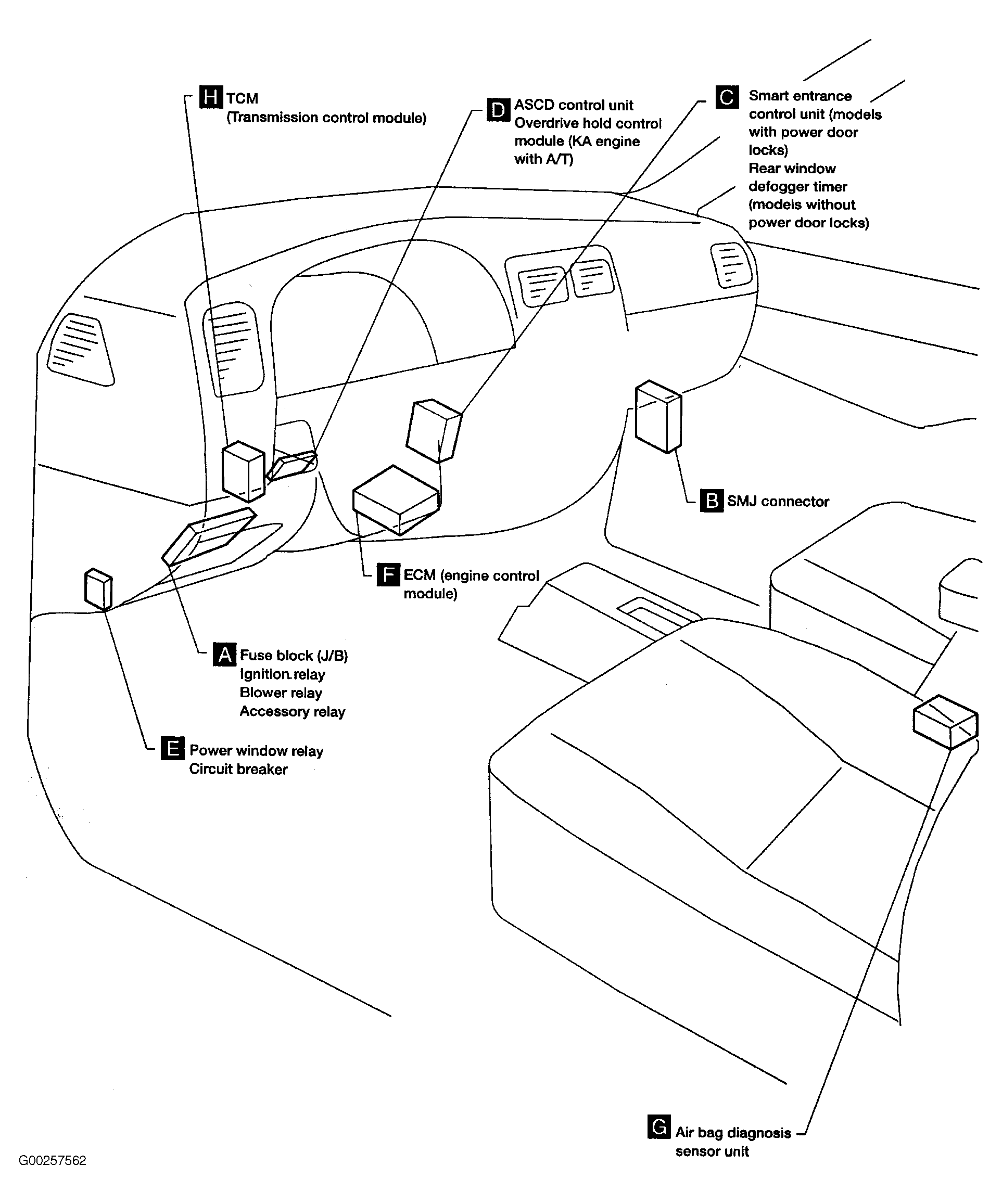

Fig 2: Passenger Compartment (1 Of 2)

G00257562

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Passenger Compartment (2 Of 2)

G00257563

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Passenger Compartment (King Cab)

G00257565

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Passenger Compartment (Crew Cab)

G00257567

Courtesy of NISSAN MOTOR CO., U.S.A.

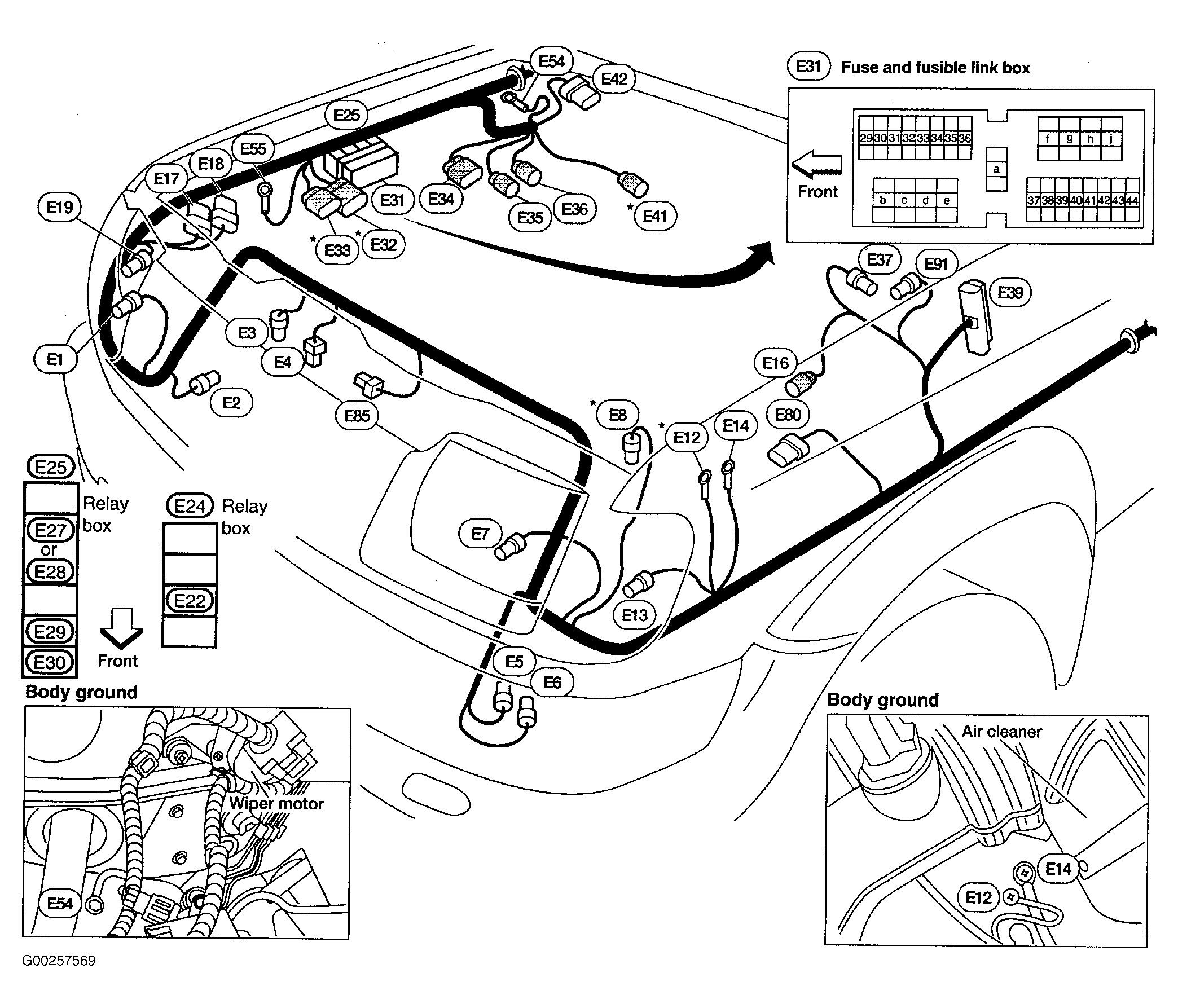

Fig 6: Engine Compartment (2.4L VIN D)

G00257569

Courtesy of NISSAN MOTOR CO., U.S.A.

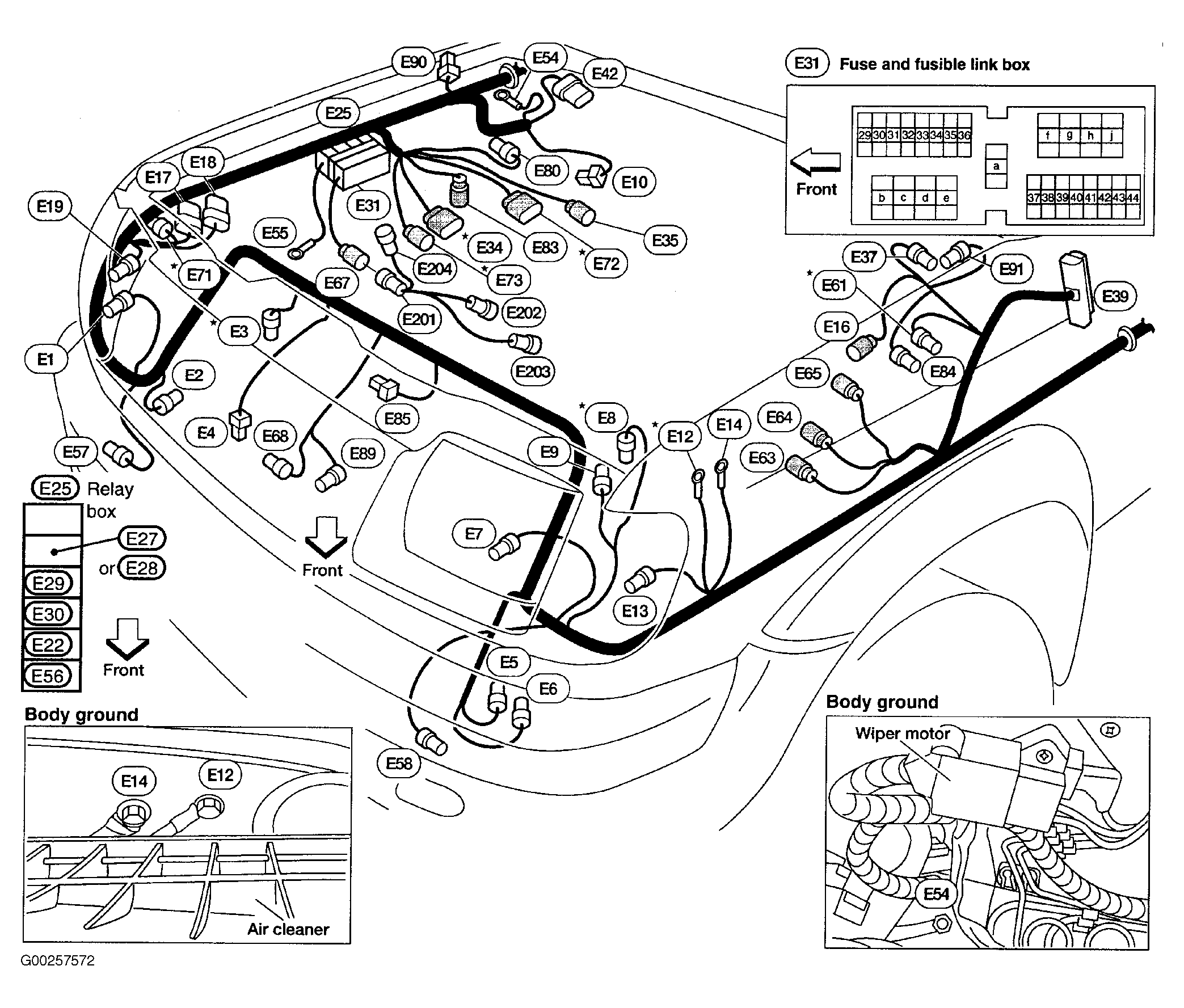

Fig 7: Engine Compartment (3.3L VIN E & VIN M)

G00257572

Courtesy of NISSAN MOTOR CO., U.S.A.

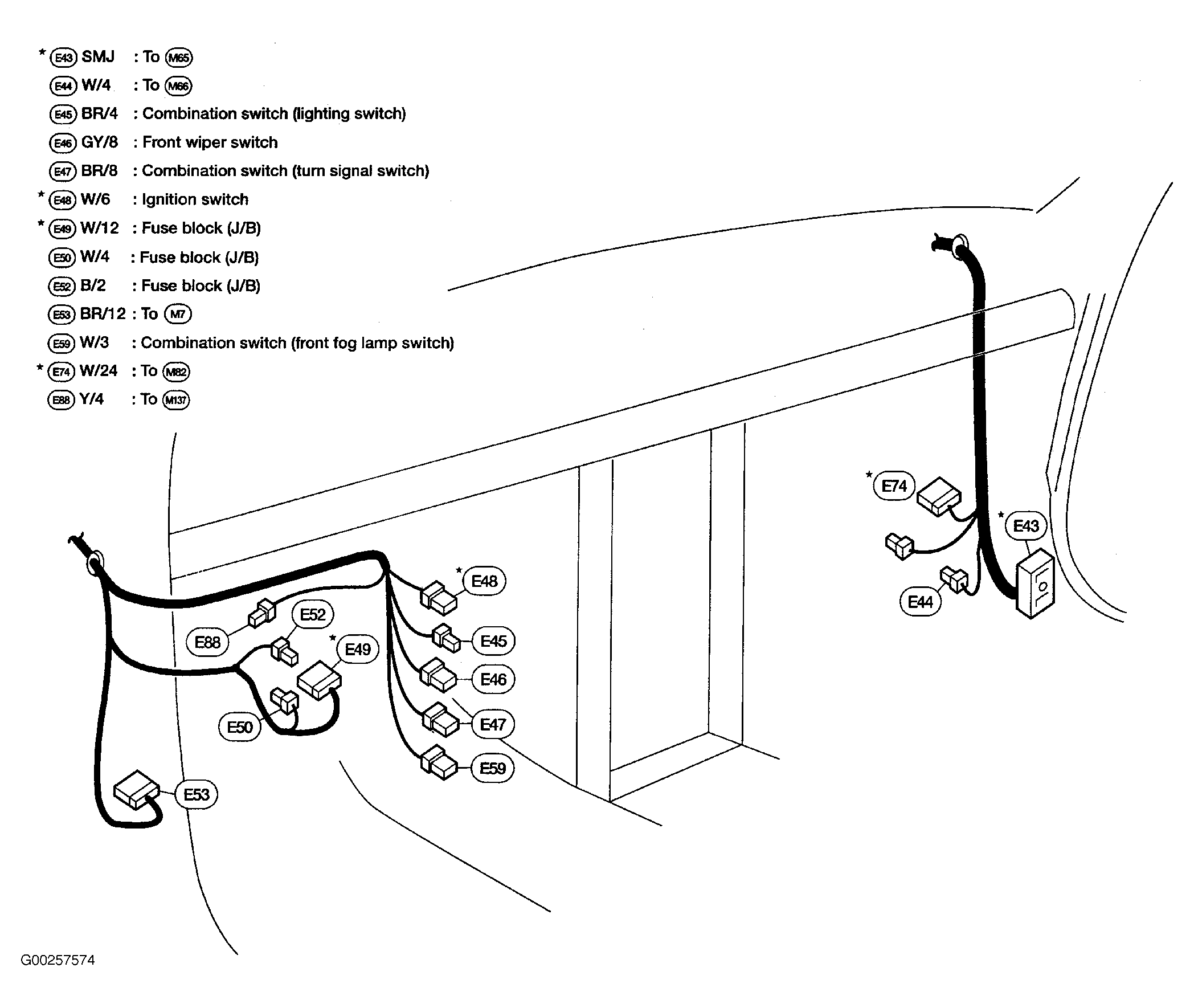

Fig 8: Dash

G00257574

Courtesy of NISSAN MOTOR CO., U.S.A.

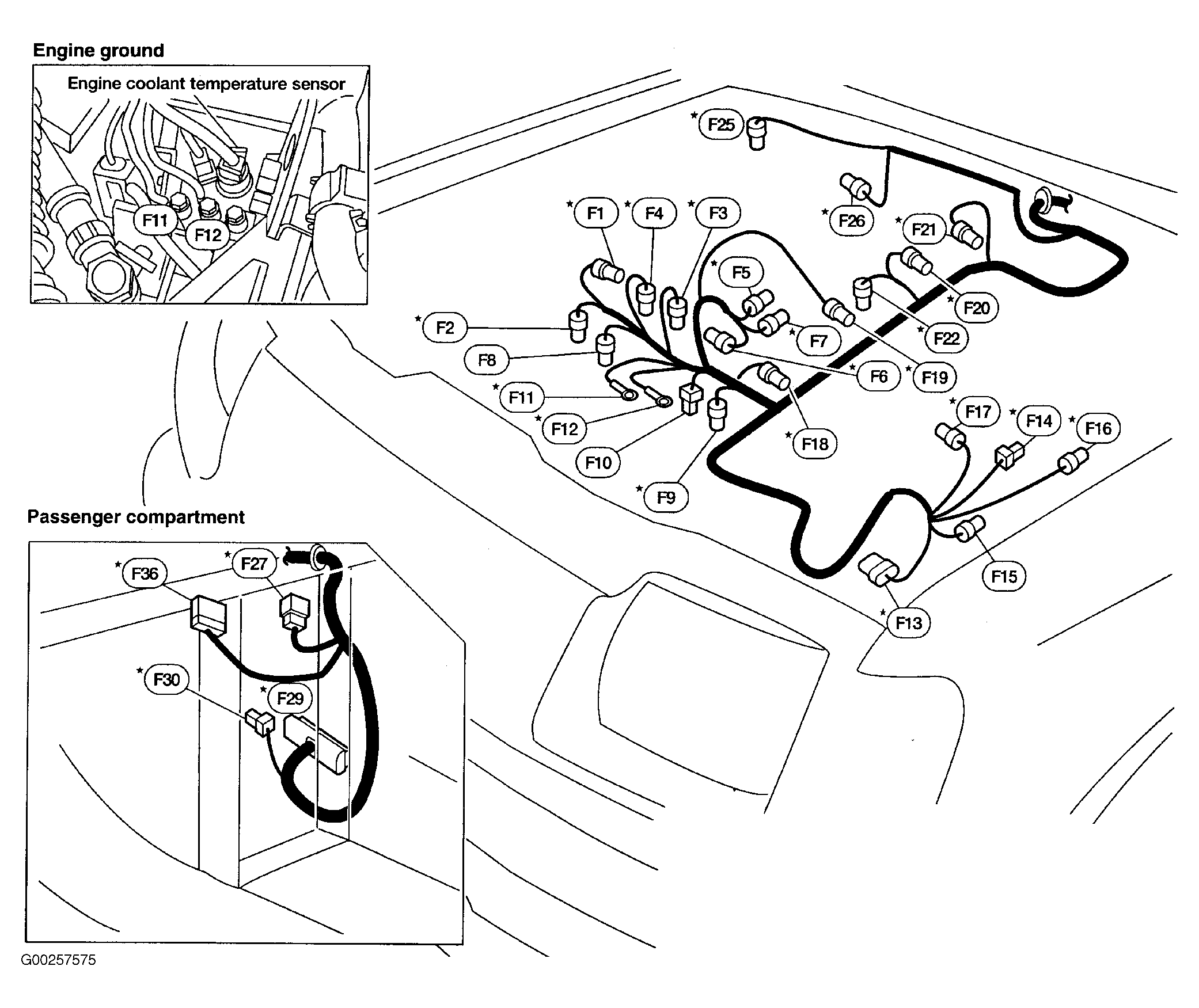

Fig 9: Engine (2.4L VIN D)

G00257575

Courtesy of NISSAN MOTOR CO., U.S.A.

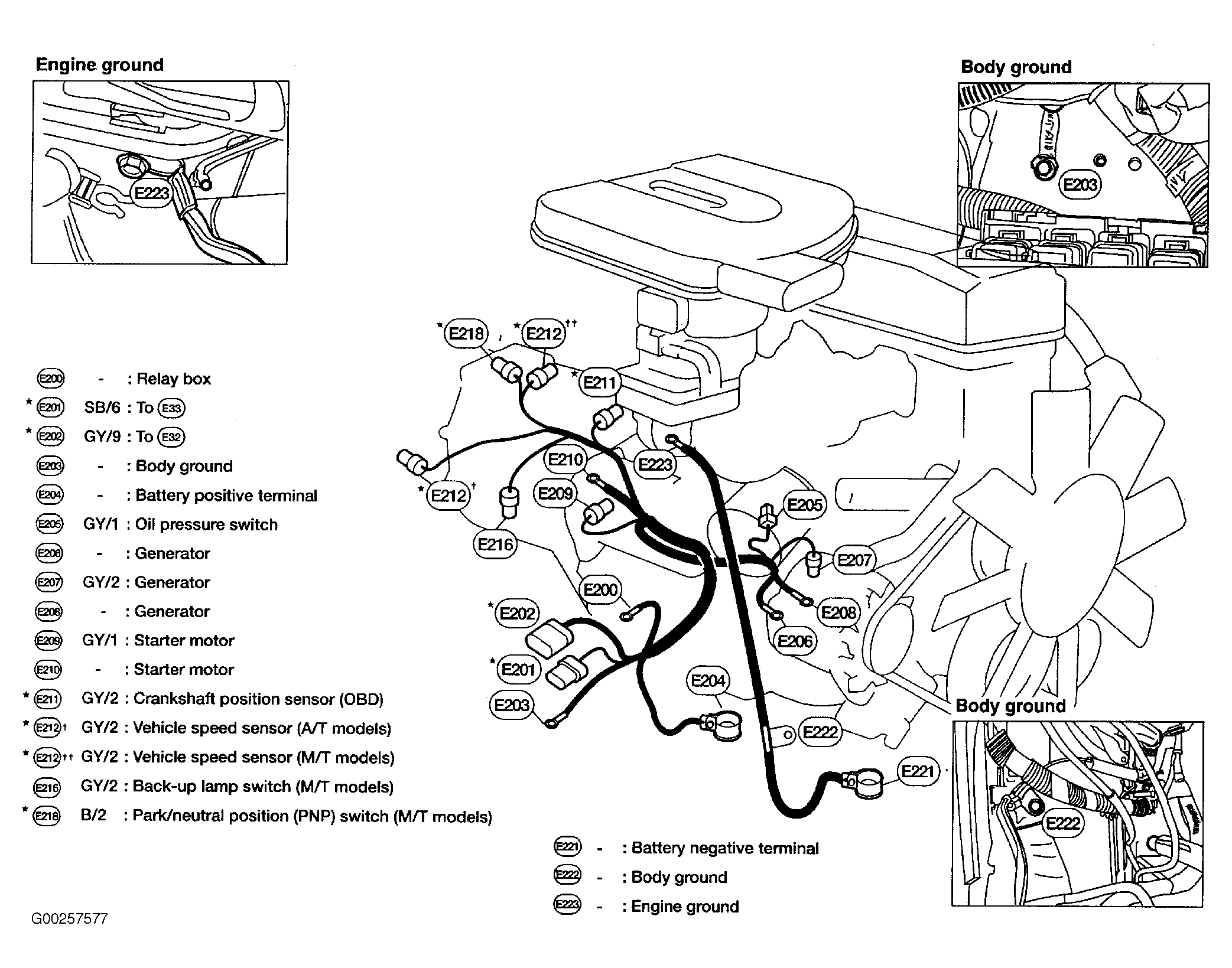

Fig 10: Engine (2.4L VIN D)

G00257577

Courtesy of NISSAN MOTOR CO., U.S.A.

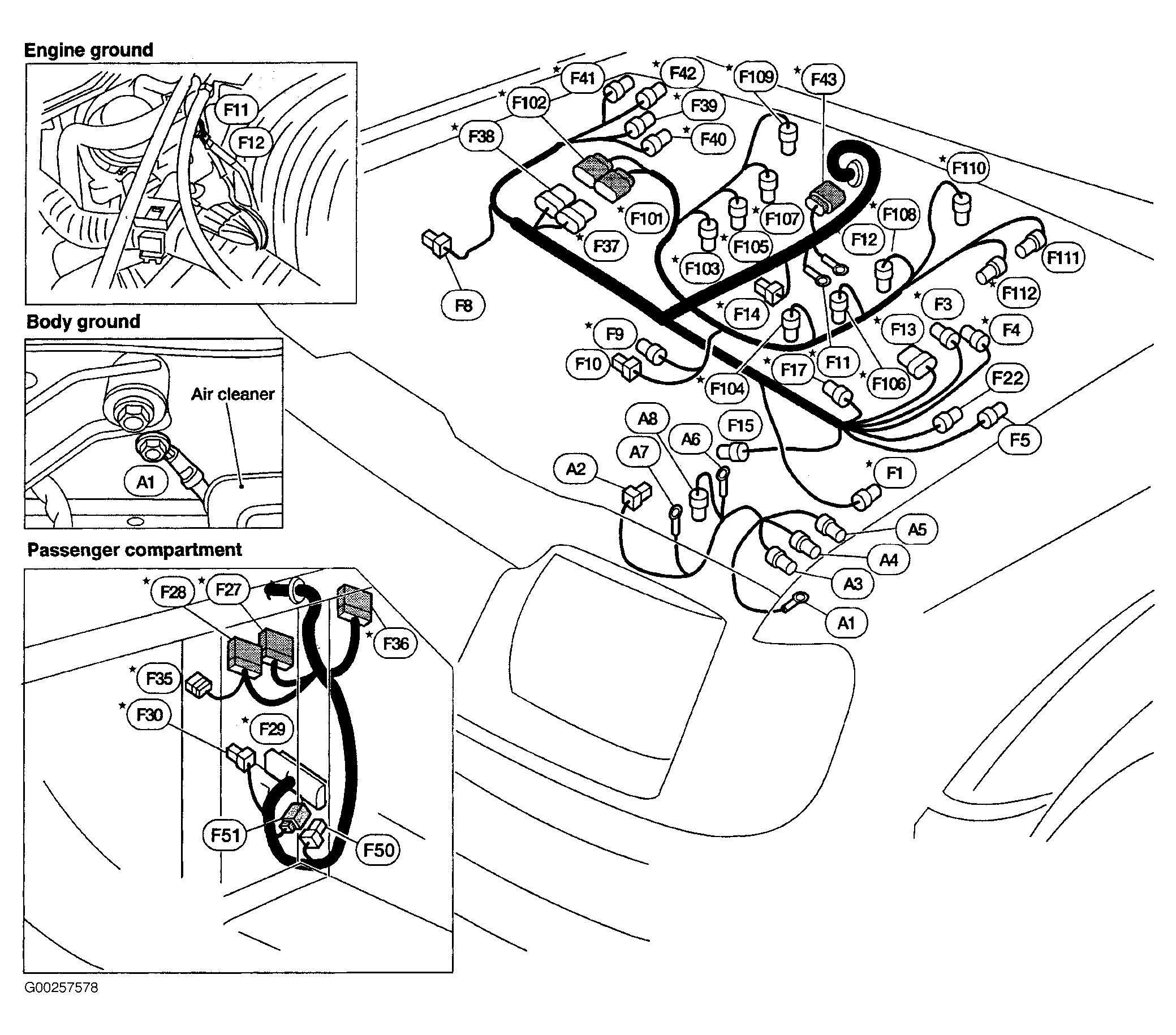

Fig 11: Engine (3.3L VIN E)

G00257578

Courtesy of NISSAN MOTOR CO., U.S.A.

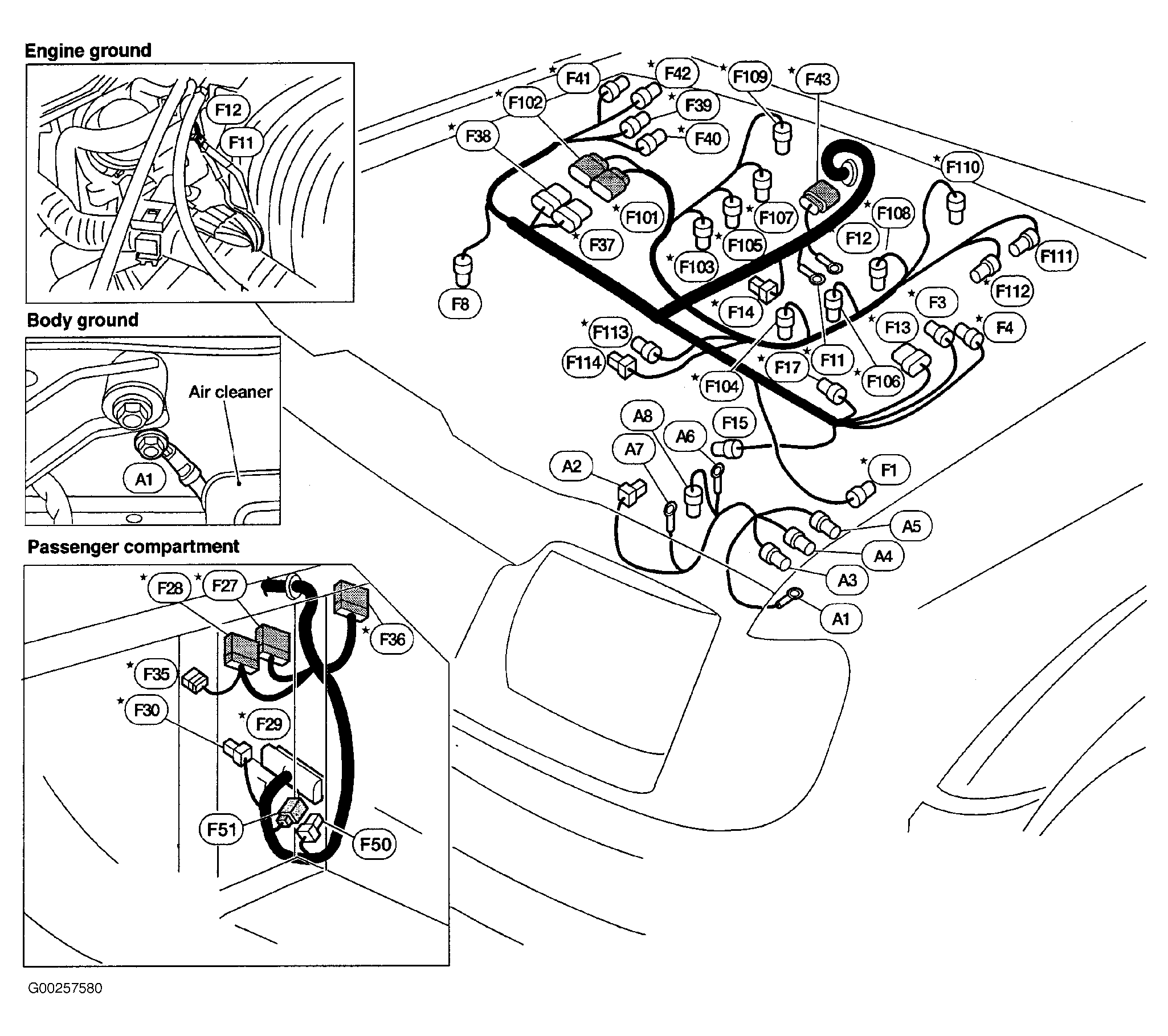

Fig 12: Engine (3.3L VIN M)

G00257580

Courtesy of NISSAN MOTOR CO., U.S.A.

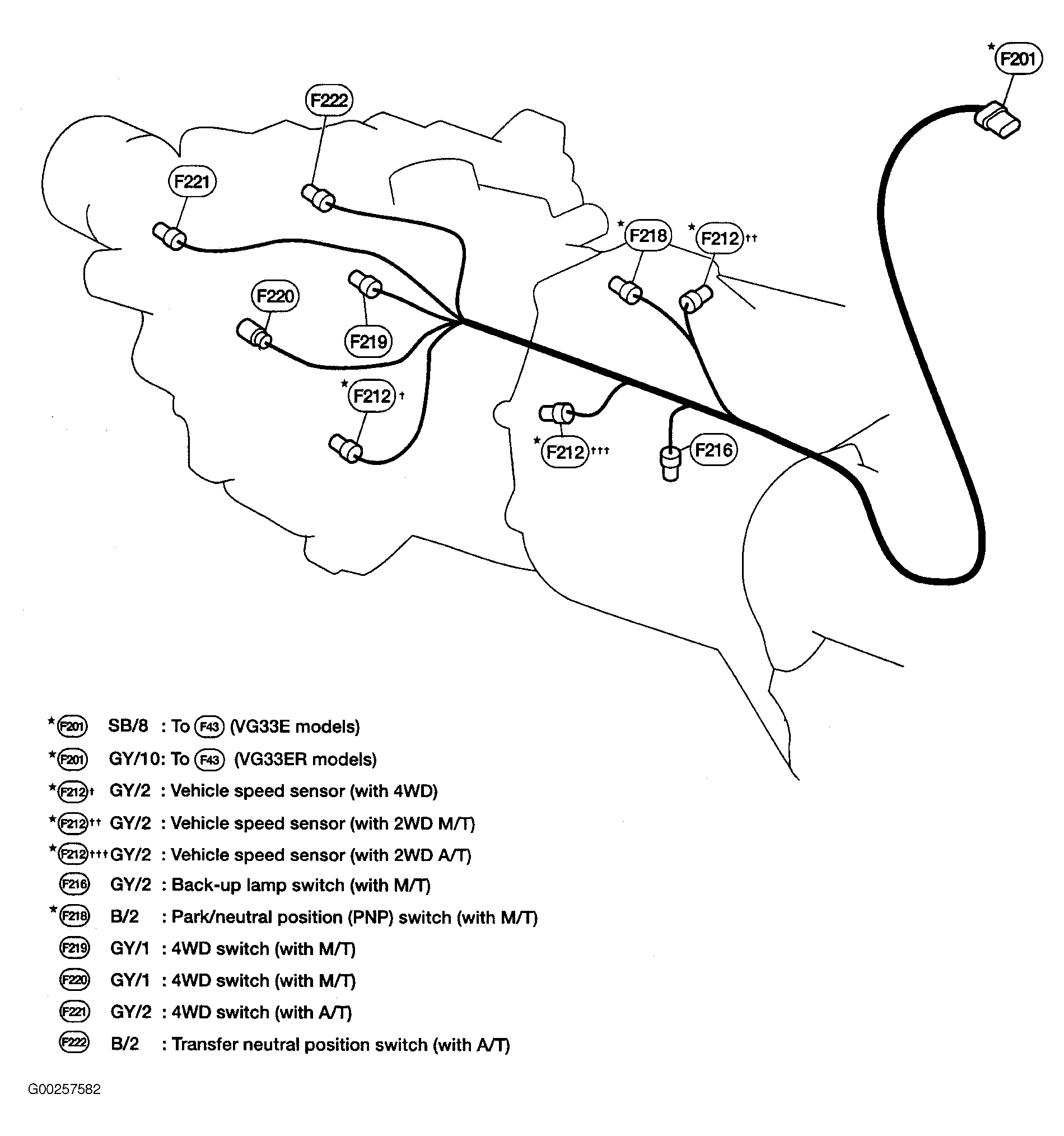

Fig 13: Engine (3.3L VIN E & VIN M)

G00257582

Courtesy of NISSAN MOTOR CO., U.S.A.

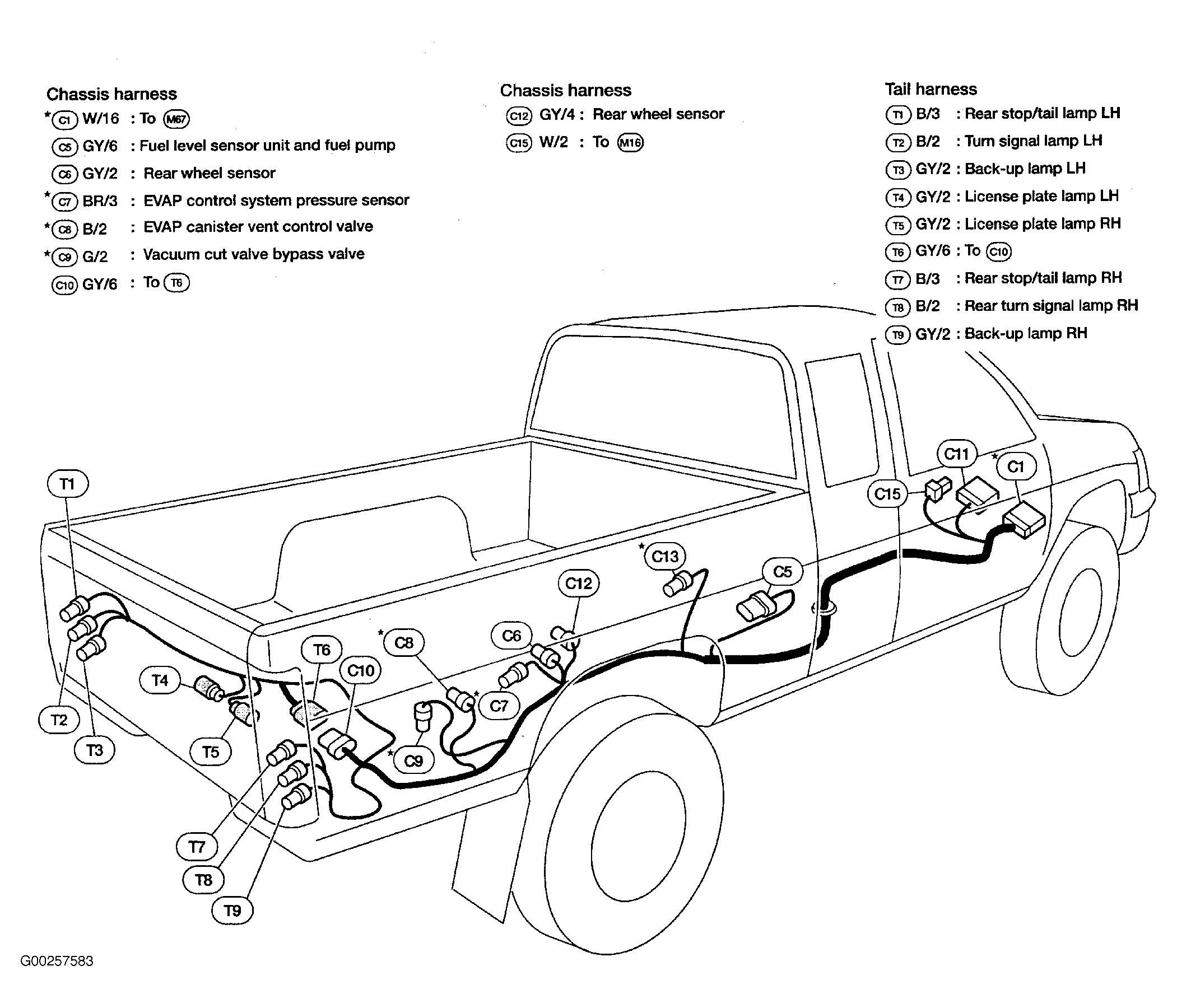

Fig 14: Chassis (2.4L VIN D)

G00257583

Courtesy of NISSAN MOTOR CO., U.S.A.

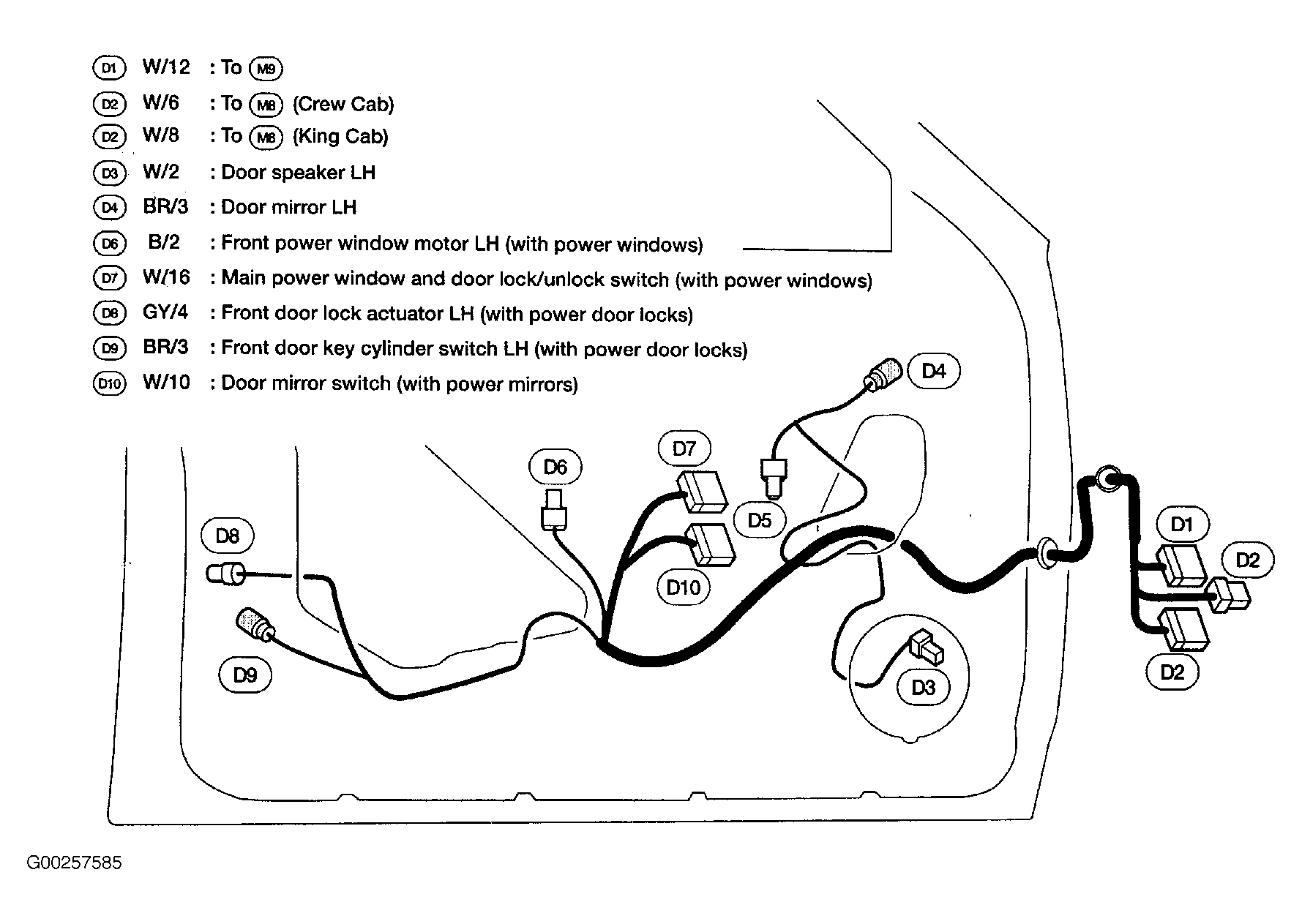

Fig 15: Left Front Door

G00257585

Courtesy of NISSAN MOTOR CO., U.S.A.

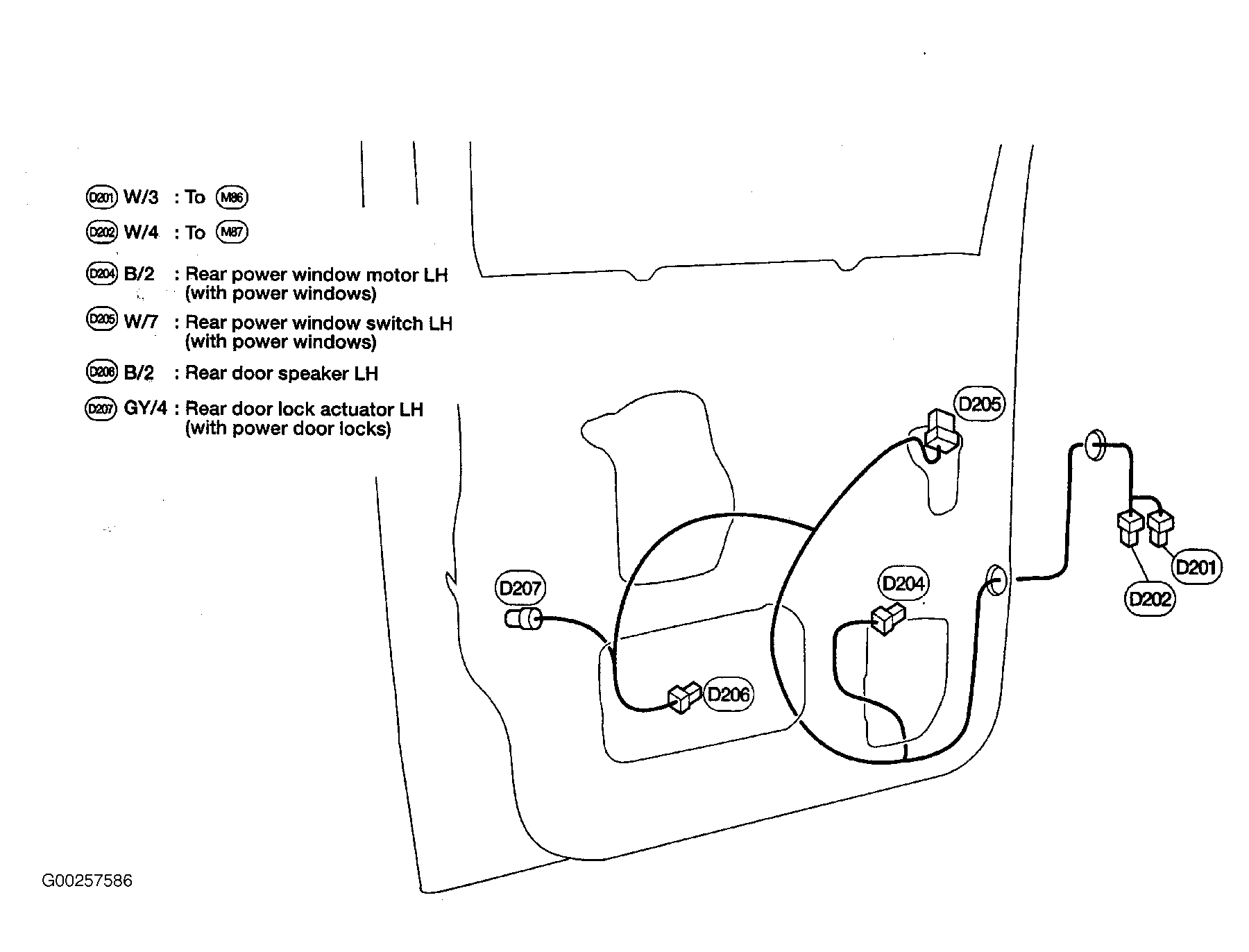

Fig 16: Left Rear Door

G00257586

Courtesy of NISSAN MOTOR CO., U.S.A.

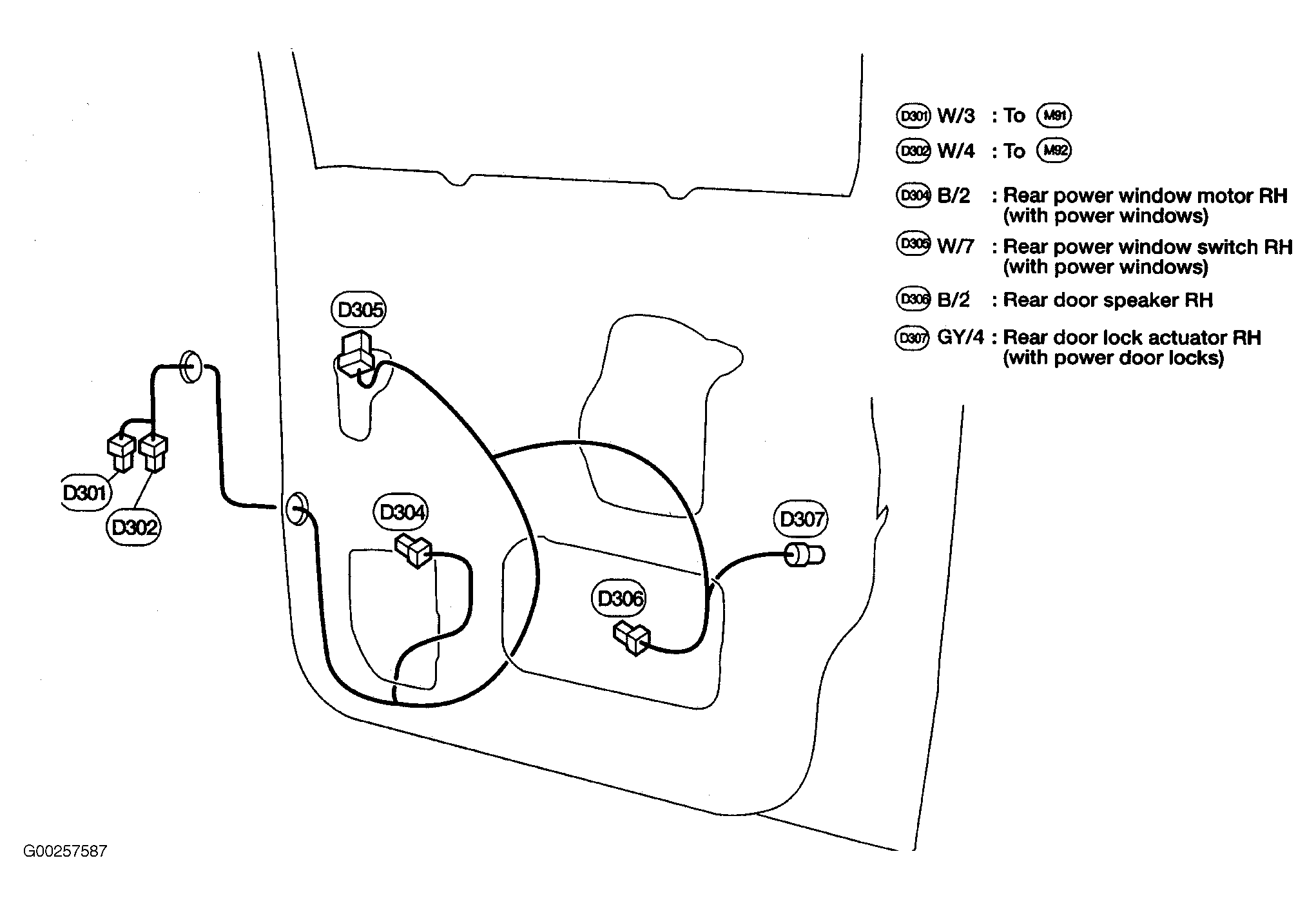

Fig 17: Right Rear Door

G00257587

Courtesy of NISSAN MOTOR CO., U.S.A.

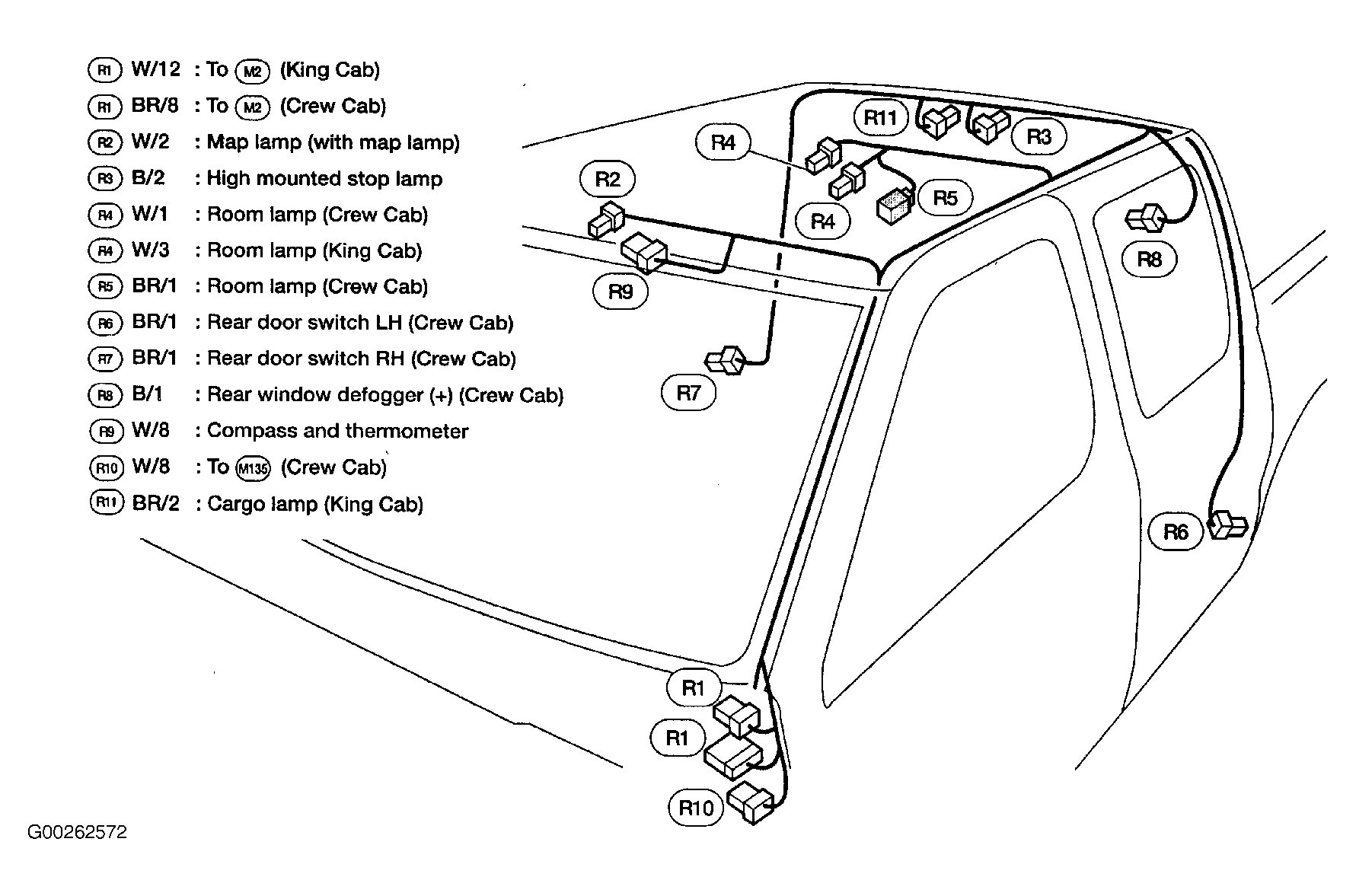

Fig 18: Roof

G00262572

Courtesy of NISSAN MOTOR CO., U.S.A.

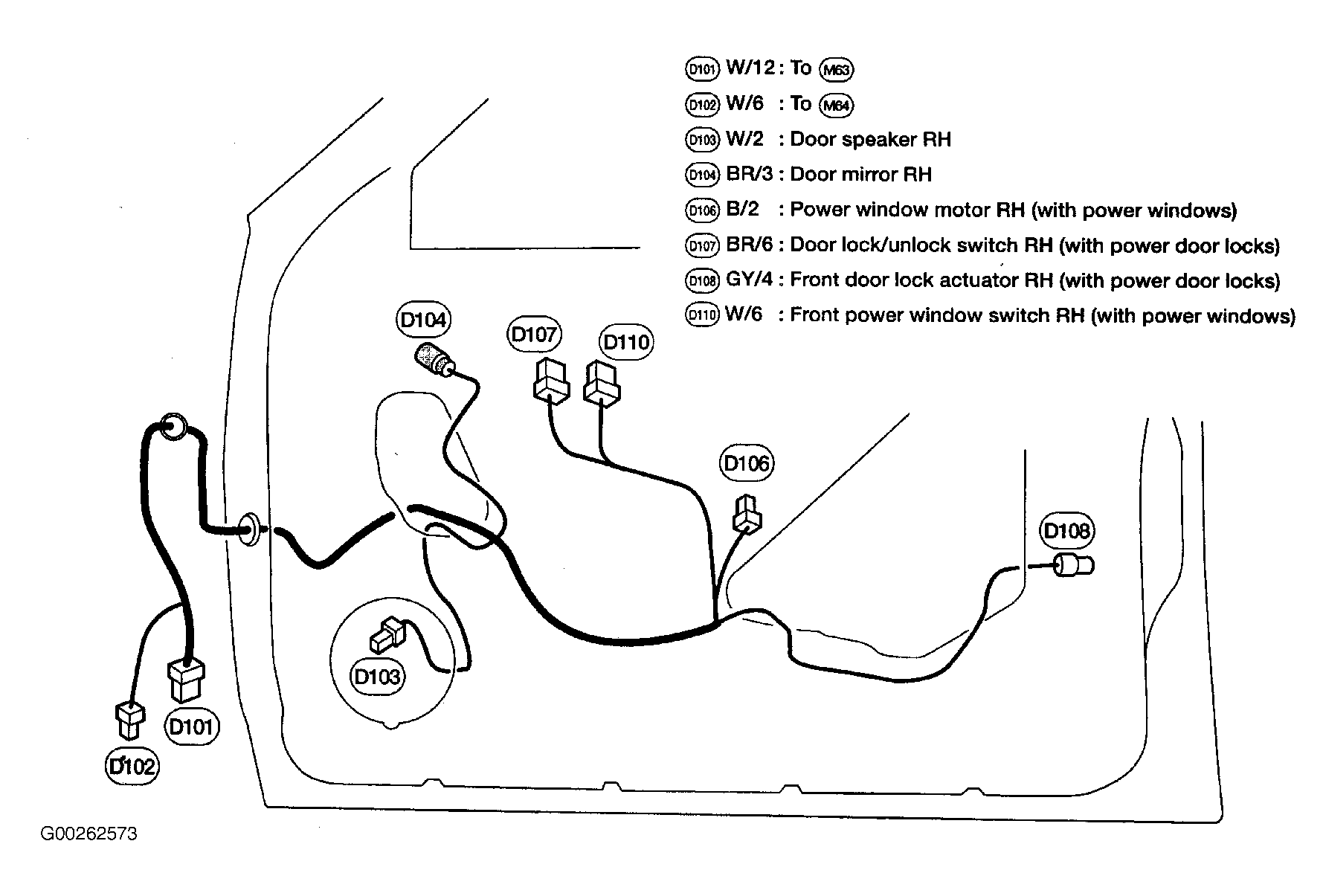

Fig 19: Right Front Door

G00262573

Courtesy of NISSAN MOTOR CO., U.S.A.

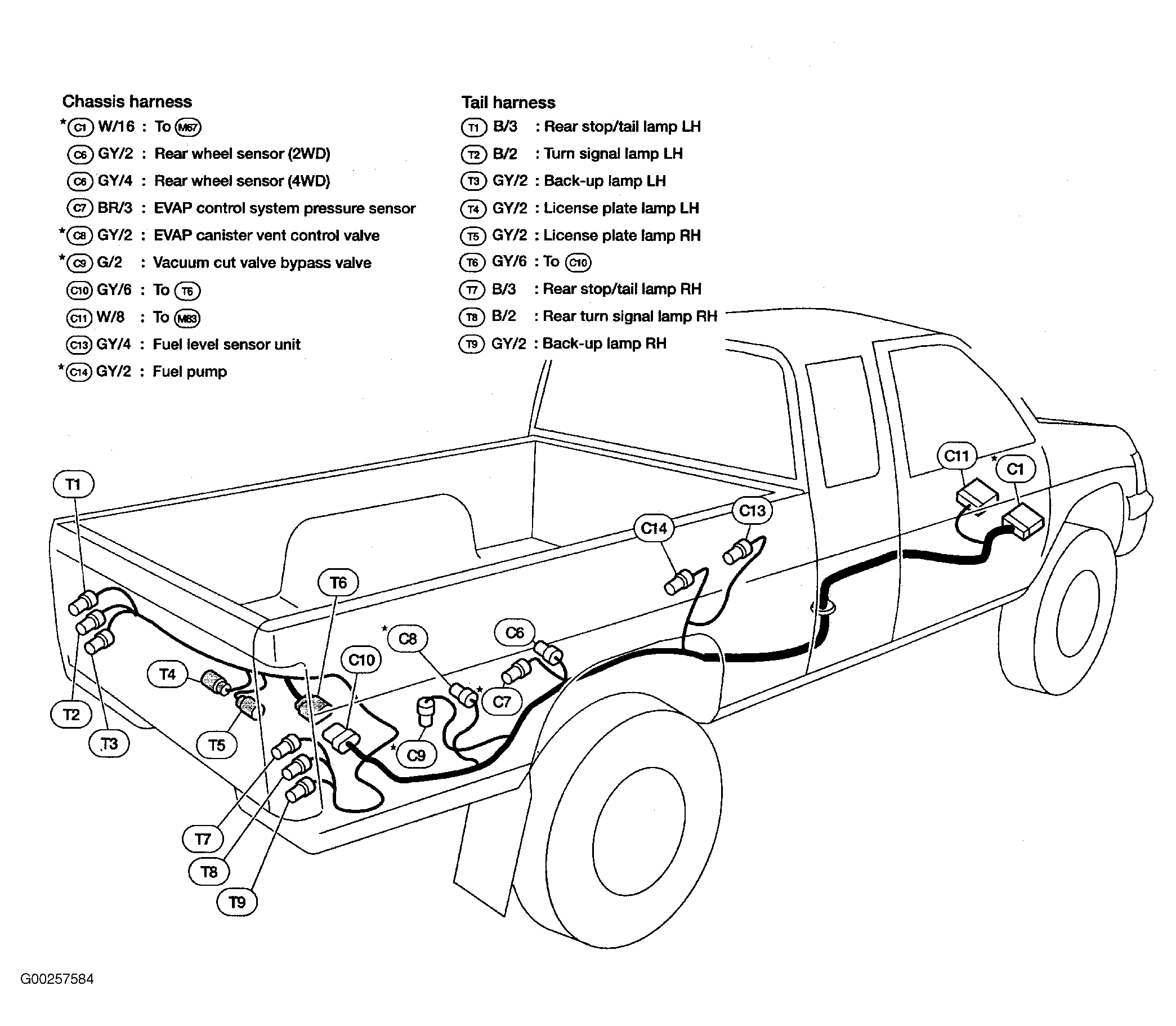

Fig 20: Chassis (3.3L VIN E & VIN M)

G00257584

Courtesy of NISSAN MOTOR CO., U.S.A.
