DTC P0121: TP Sensor: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

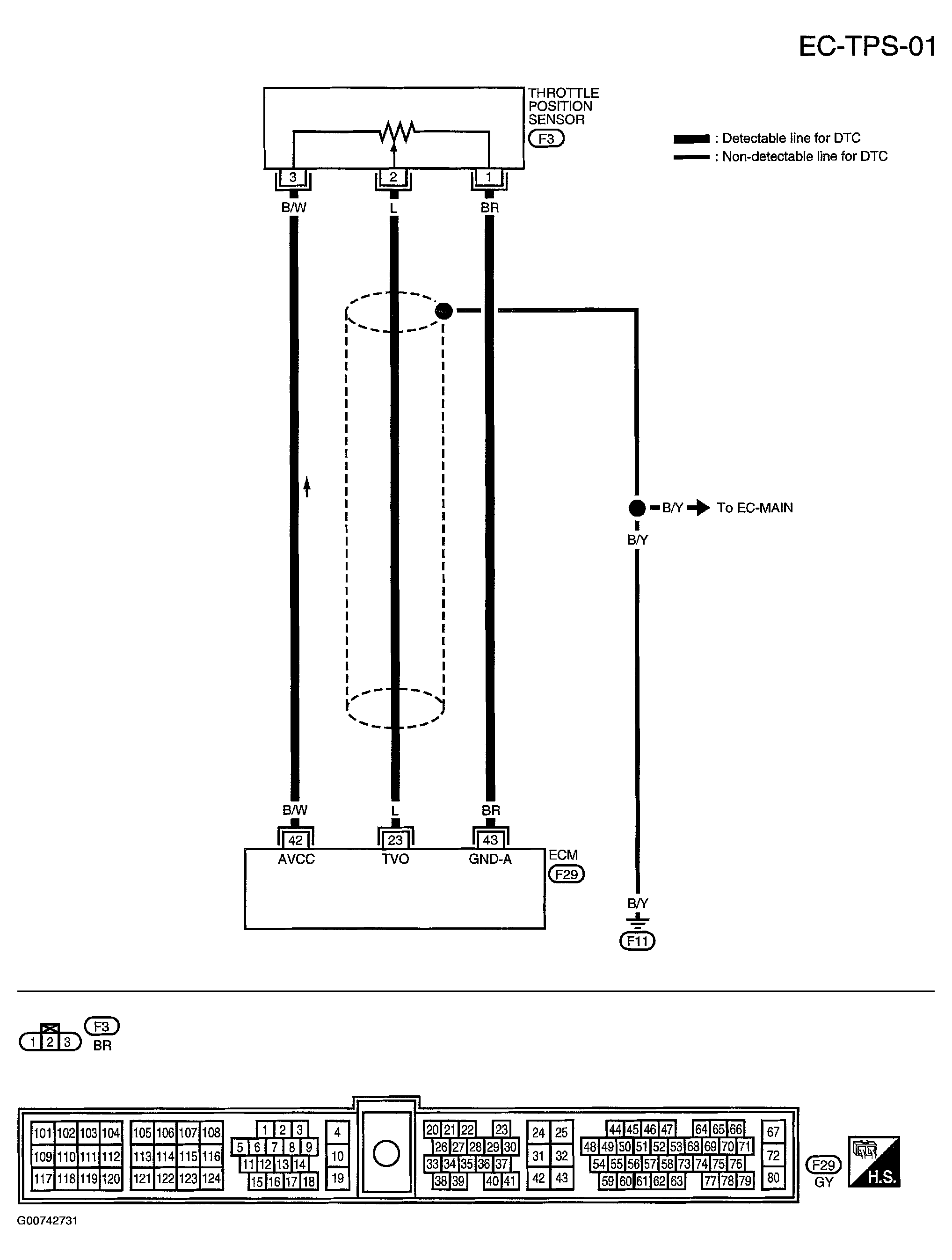

Fig 1: Wiring Diagram - EC-TPS-01
G00742731Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and engine ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

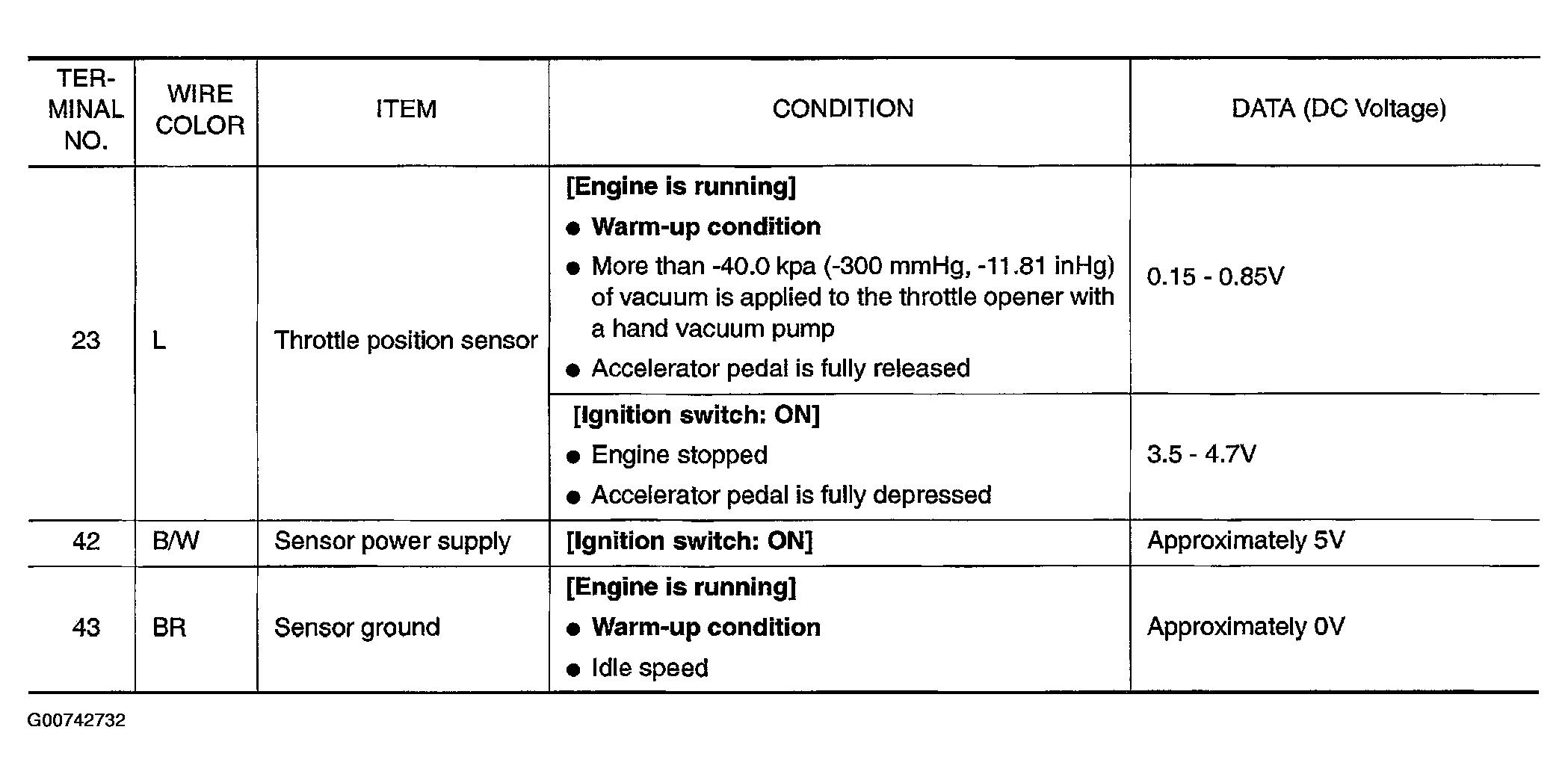

Fig 2: Reference Data
G00742732Courtesy of NISSAN MOTOR CO., U.S.A.
