Testing Condition
WARNING: This page is about a different variant/trim than selected.
- Do not hold engine speed for more than the specified minutes below.
- Start engine and warm it up to the normal operating temperature.
- Turn ignition switch OFF and wait at least 5 seconds.
- Start engine and keep the engine speed at between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
- Let engine idle for 1 minute.
- Open engine hood.

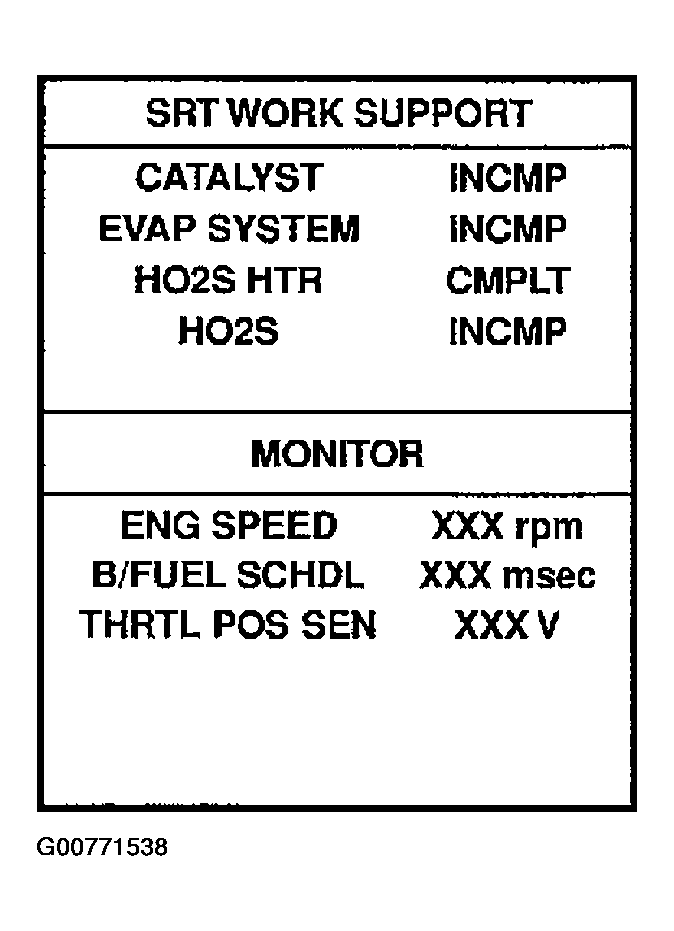

- Select "DTC & SRT CONFIRMATION" then "SRT WORK SUPPORT" mode with CONSULT-II.
- Rev engine up to 2, 000 to 3, 000 RPM and hold it for 3 consecutive minutes then release the accelerator pedal completely.

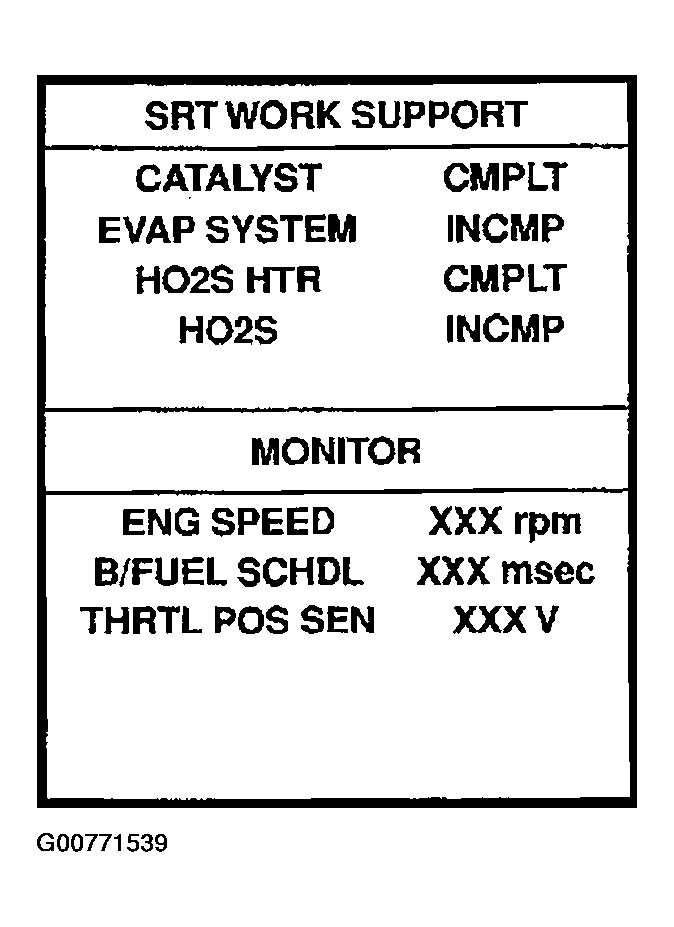

If "INCMP" of "CATALYST" changed to "COMPLT", go to step 10.
- Wait 5 seconds at idle.
- Rev engine up to 2, 000 to 3, 000 RPM and maintain it until "INCMP" of "CATALYST" changes to "CMPLT" (It will take approximately 5 minutes).
If not "CMPLT", perform the following.
- Select "SELF-DIAG RESULTS" mode with CONSULT-II.
- Confirm that the 1st trip DTC is not detected.
If the 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
