Specifications & Procedures: Specifications

Use illustrations for front and rear wheel alignment specifications. See Fig 1 -Fig 4 .

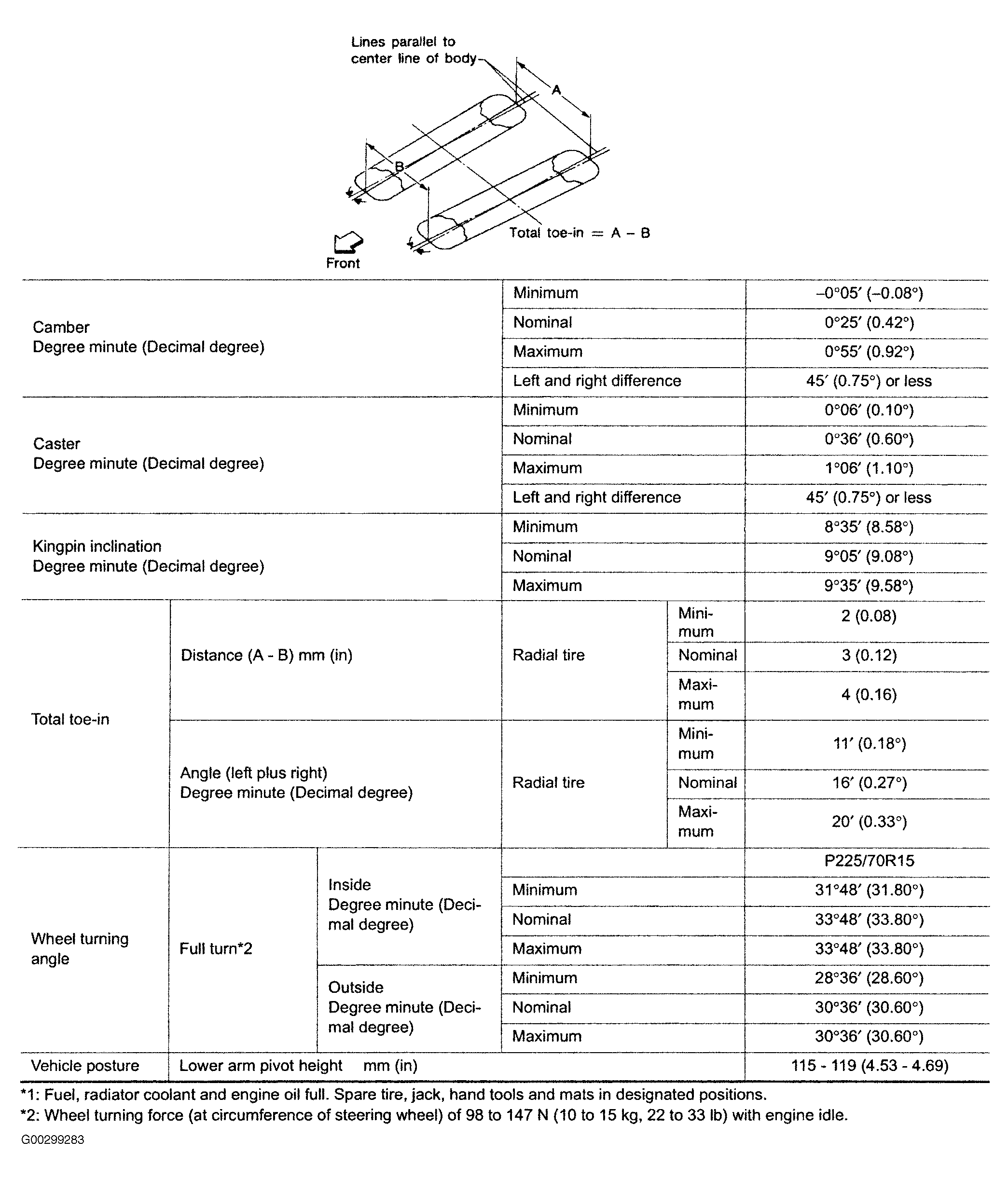

Fig 1: Front Wheel Alignment Specificaitons (2.4L 2WD - Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

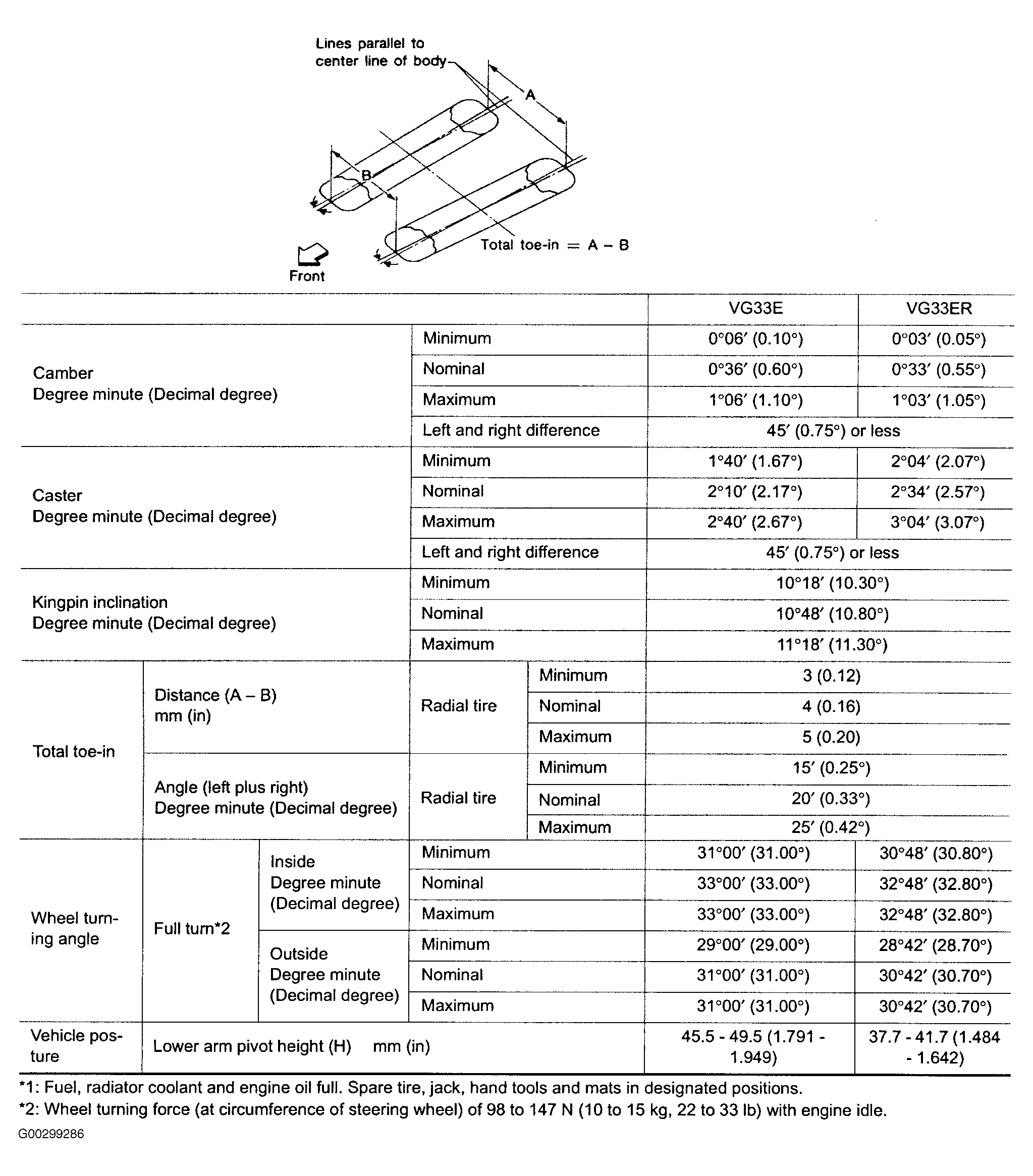

Fig 2: Front Wheel Alignment Specifications (3.3L 2WD - Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

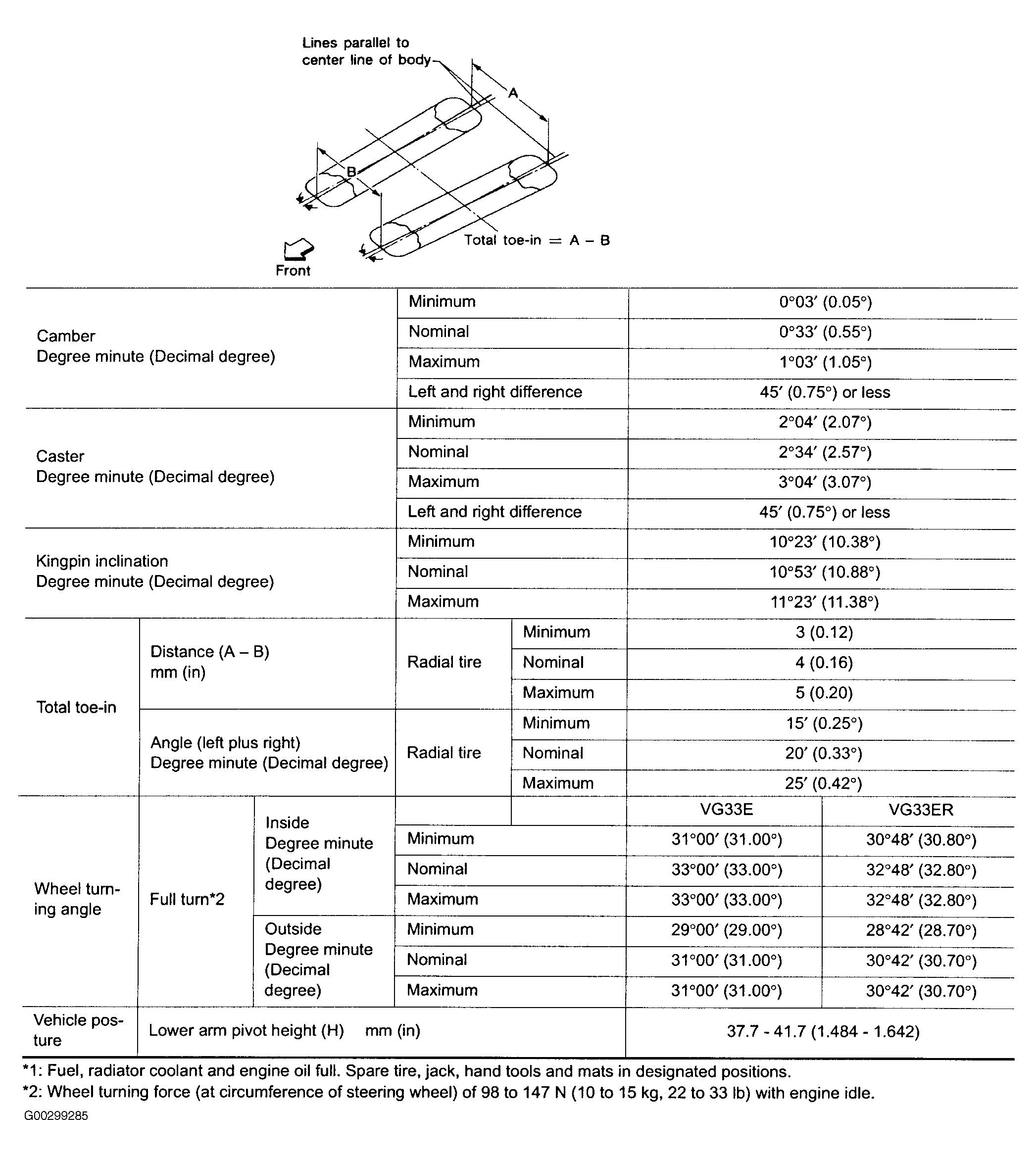

Fig 3: Front Wheel Alignment Specifications (3.3L 4WD - Frontier)

Courtesy of NISSAN MOTOR CO., U.S.A.

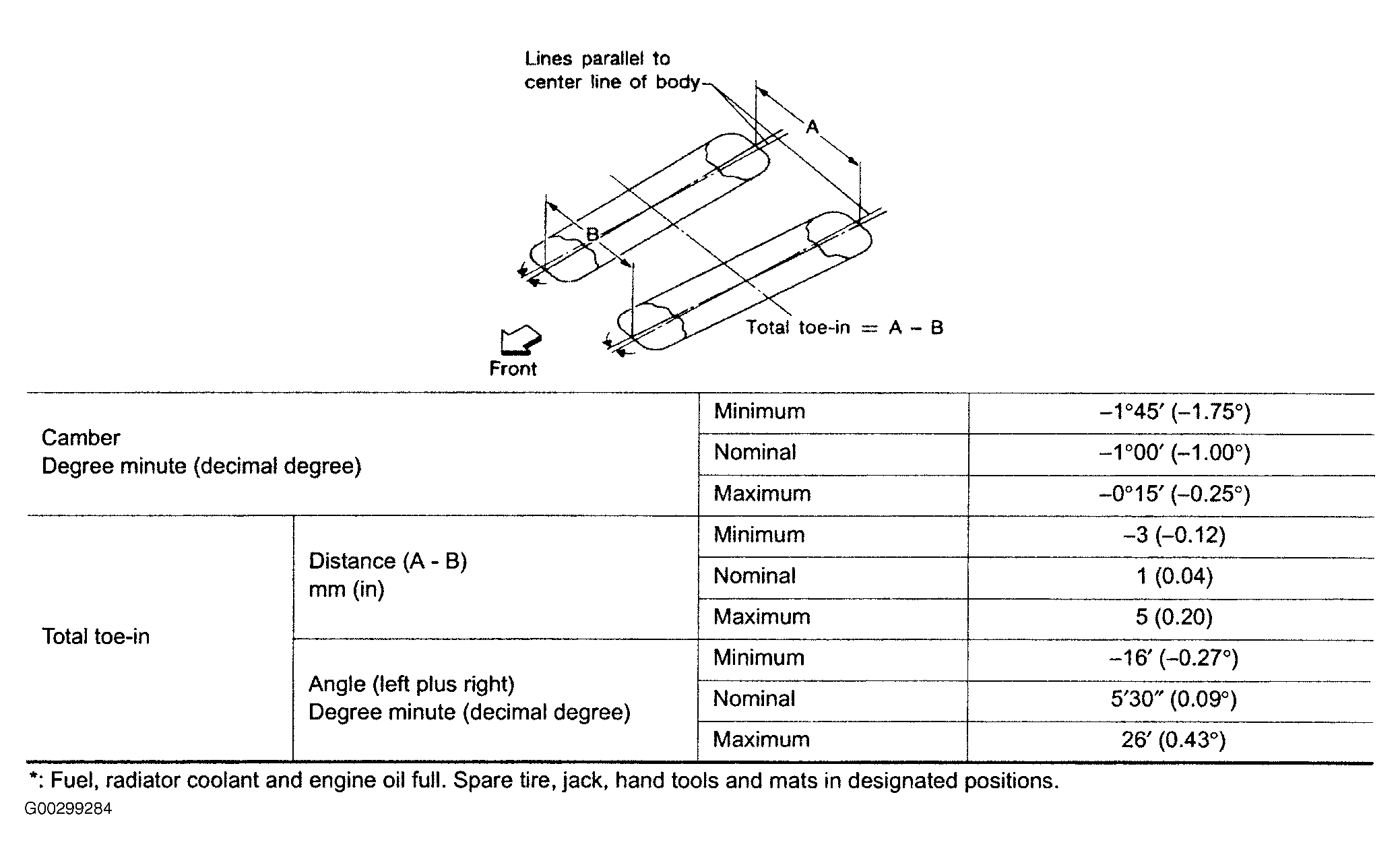

Fig 4: Rear Wheel Alignment Specifications (All Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
