KEYFOB Battery Check

CHECK KEYFOB BATTERY
Remove battery (refer to KEYFOB BATTERY REPLACEMENT ) and measure voltage across battery positive and negative terminals, (+) and (-).

Voltage [V] : 2.5 - 3.0

NOTE: Keyfob does not function if battery is not installed correctly.

OK or NG
1. OK: Check keyfob battery terminals for corrosion and damage.
2. NG: Replace battery.

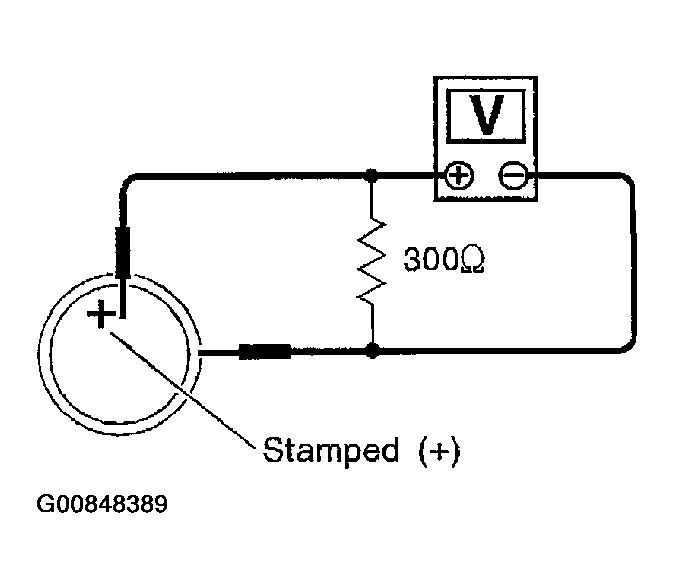

Fig 1: Measuring Voltage Across Battery Positive And Negative Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
