Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit | Left rear corner of engine compartment. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under rear of center console. See Figure . |
| ASCD Control Unit | Behind dash, left of steering column. See Figure . |
| A/T Device (M35) | On steering column, below selector lever. See Figure . |
| Daytime Light Control Unit (Canada) | Right front corner of engine compartment. See Figure . |
| Engine Control Module (ECM) | Below center of dash, behind lower cover. See Figure . |

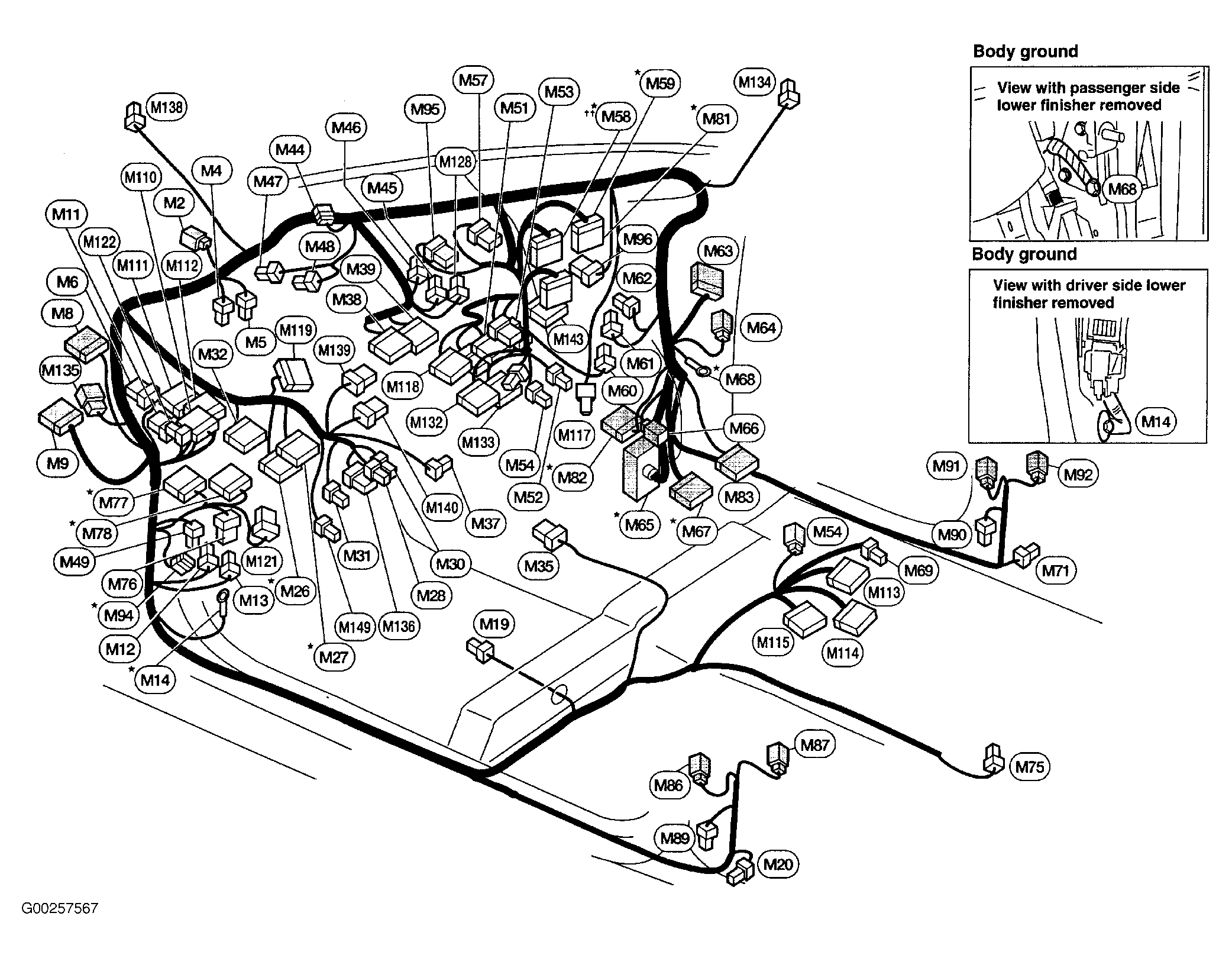

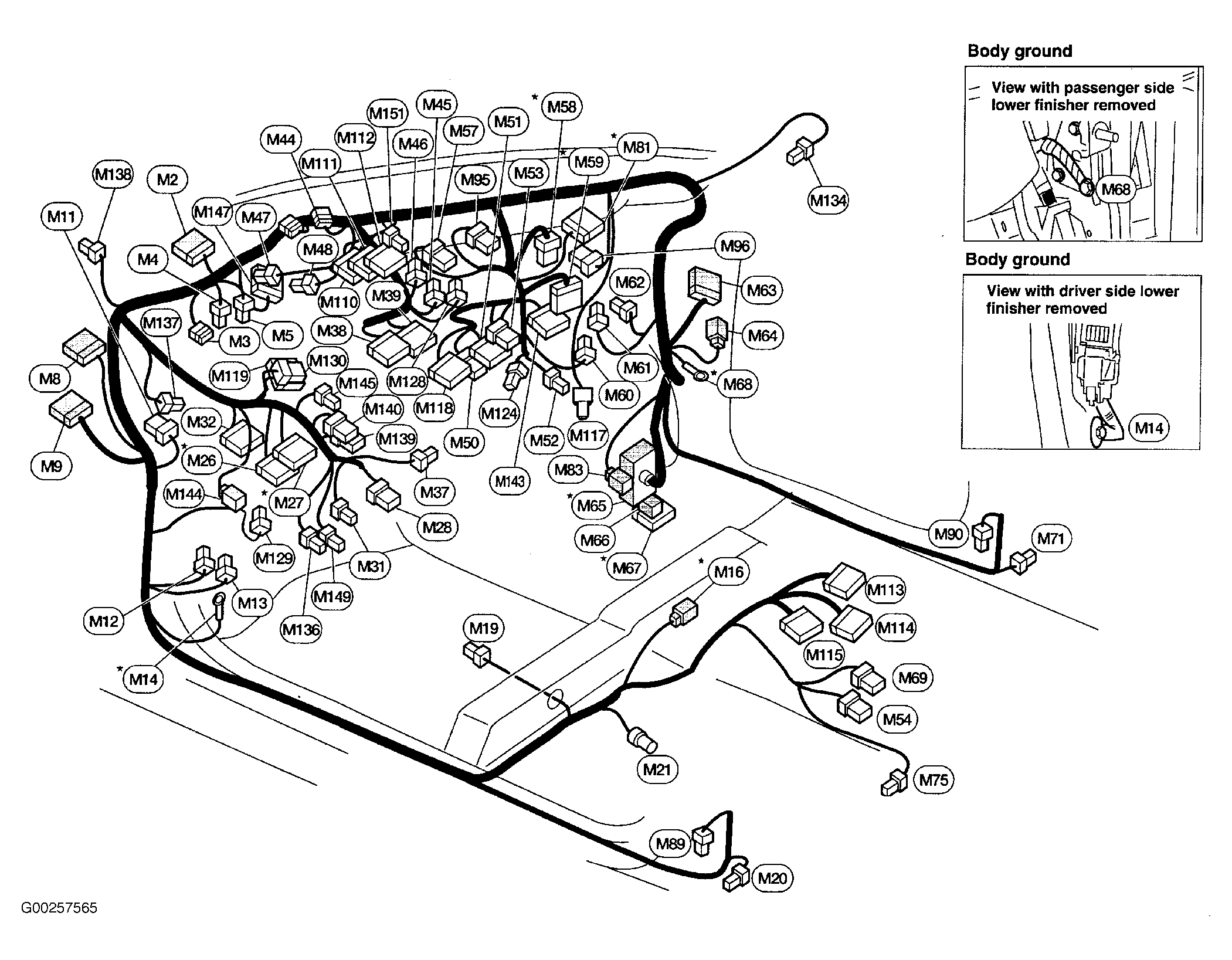

| Low Tire Pressure Warning Control Unit (Crew Cab) (M143) | Behind center of dash. See Figure . |
| Low Tire Pressure Warning Control Unit (King Cab) (M143) | Behind center of dash. See Figure . |
| Overdrive Hold Control Module | Behind left side of dash. See Figure . |
| Passenger Air Bag Deactivation Unit (King Cab) (M124) | Lower center of dash. See Figure . |
| Passenger Air Bag Module (Crew Cab) (M117) | Right side of dash. See Figure . |
| Passenger Air Bag Module (King Cab) (M117) | Right side of dash. See Figure . |
| Smart Entrance Control Unit | Behind dash, right of steering column. See Figure . |
| Transmission Control Module (TCM) | Behind dash, left of steering column. See Figure . |
