With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 22 (PNP switch signal) and body ground under the following conditions.

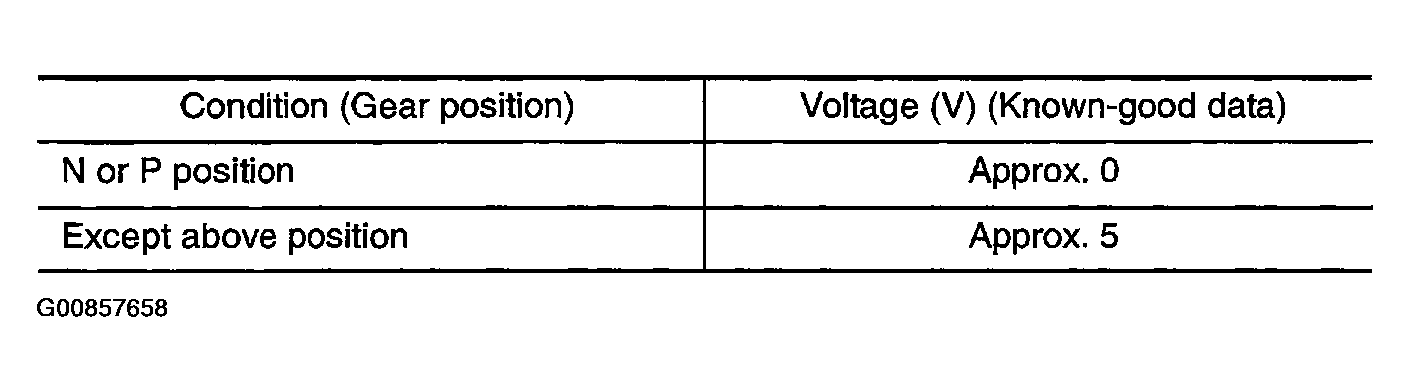

    Fig 1: Gear Position Signal Inspection Chart
    G00857658Courtesy of NISSAN MOTOR CO., U.S.A.

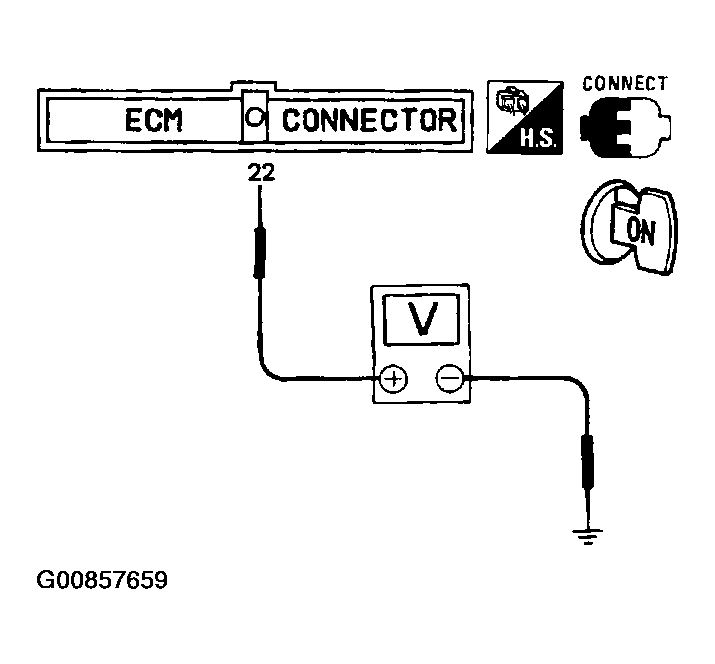

    Fig 2: Checking Voltage Between ECM Terminal And Body Ground
    G00857659Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, go to "DIAGNOSTIC PROCEDURE FOR M/T MODELS " or "DIAGNOSTIC PROCEDURE FOR A/T MODELS ".
