ECM Inspection Table

Specification data are reference values and are measured between each terminal and engine ground.

"Star":  Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope).

*:  Any mode except OFF, ambient air temperature is above 25°C (77°F)

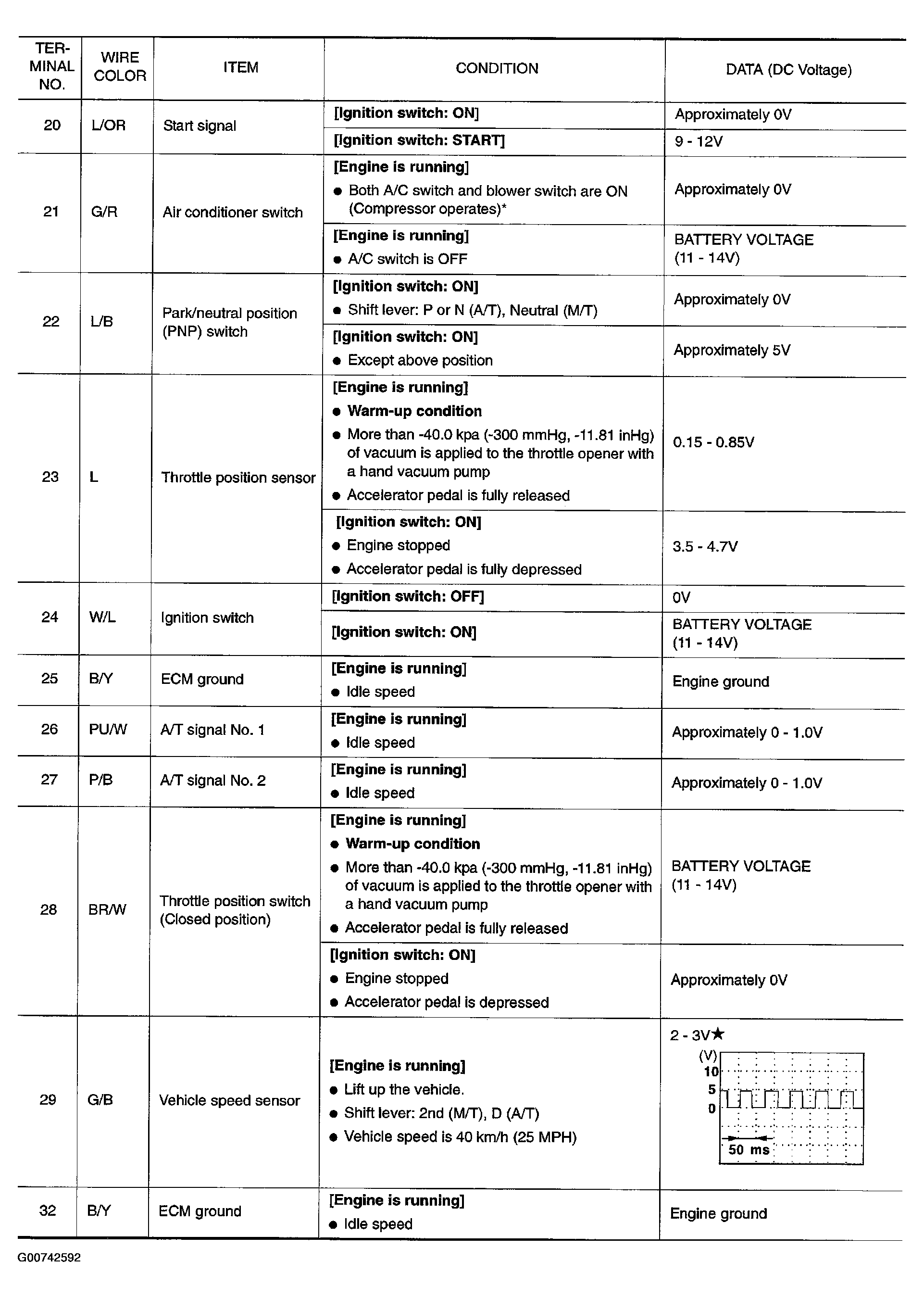

Fig 1: ECM Inspection Table (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

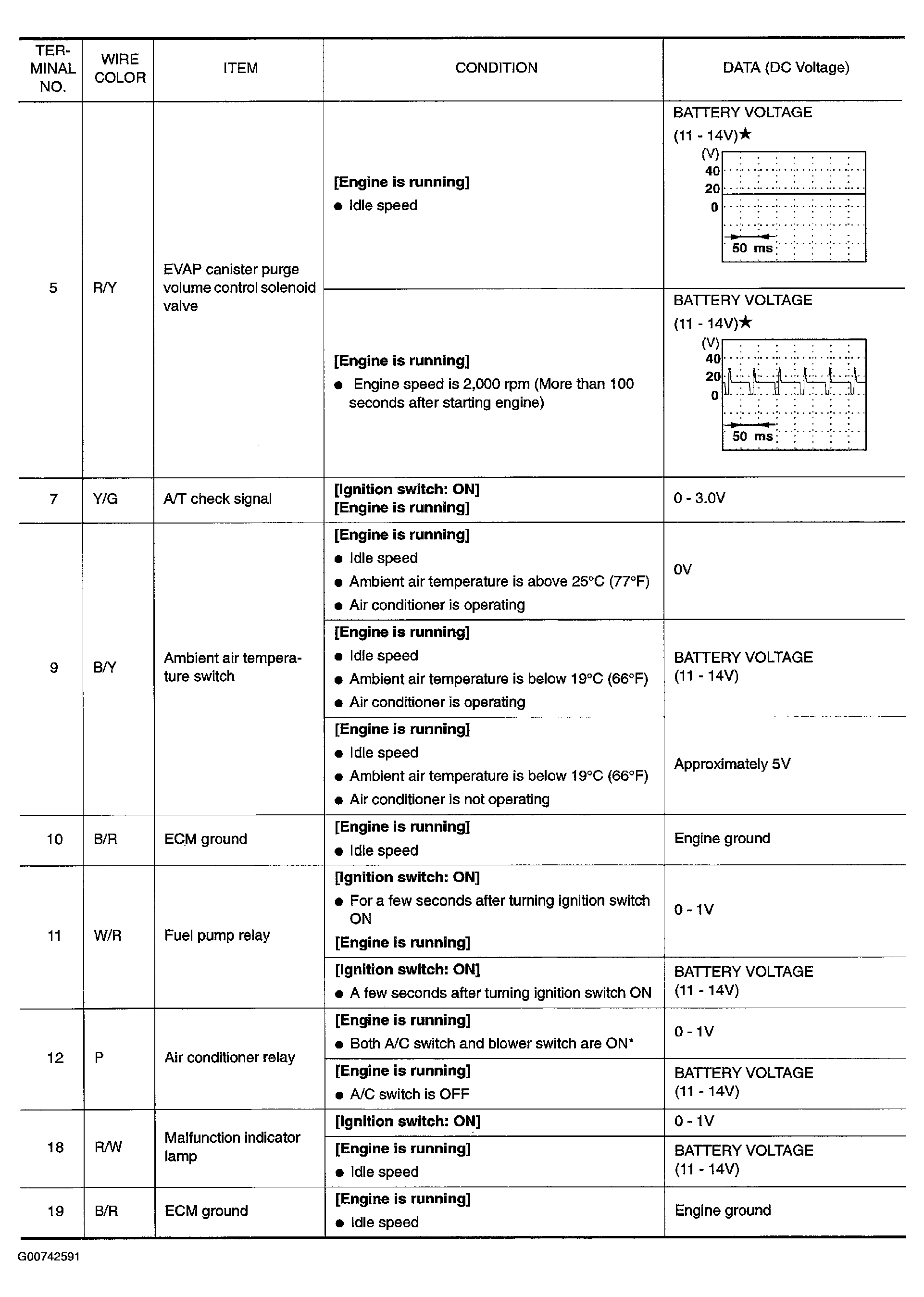

Fig 2: ECM Inspection Table (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

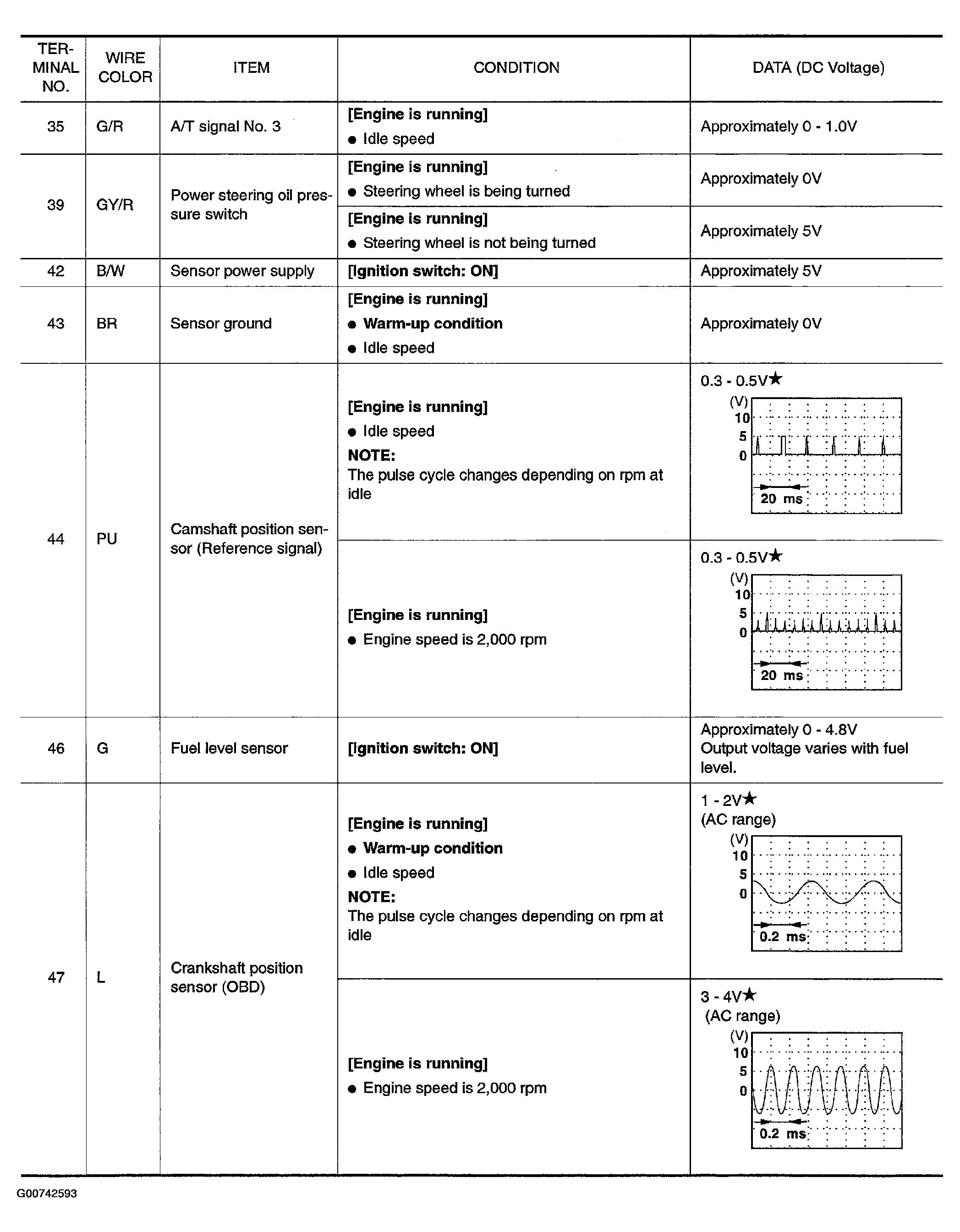

Fig 3: ECM Inspection Table (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

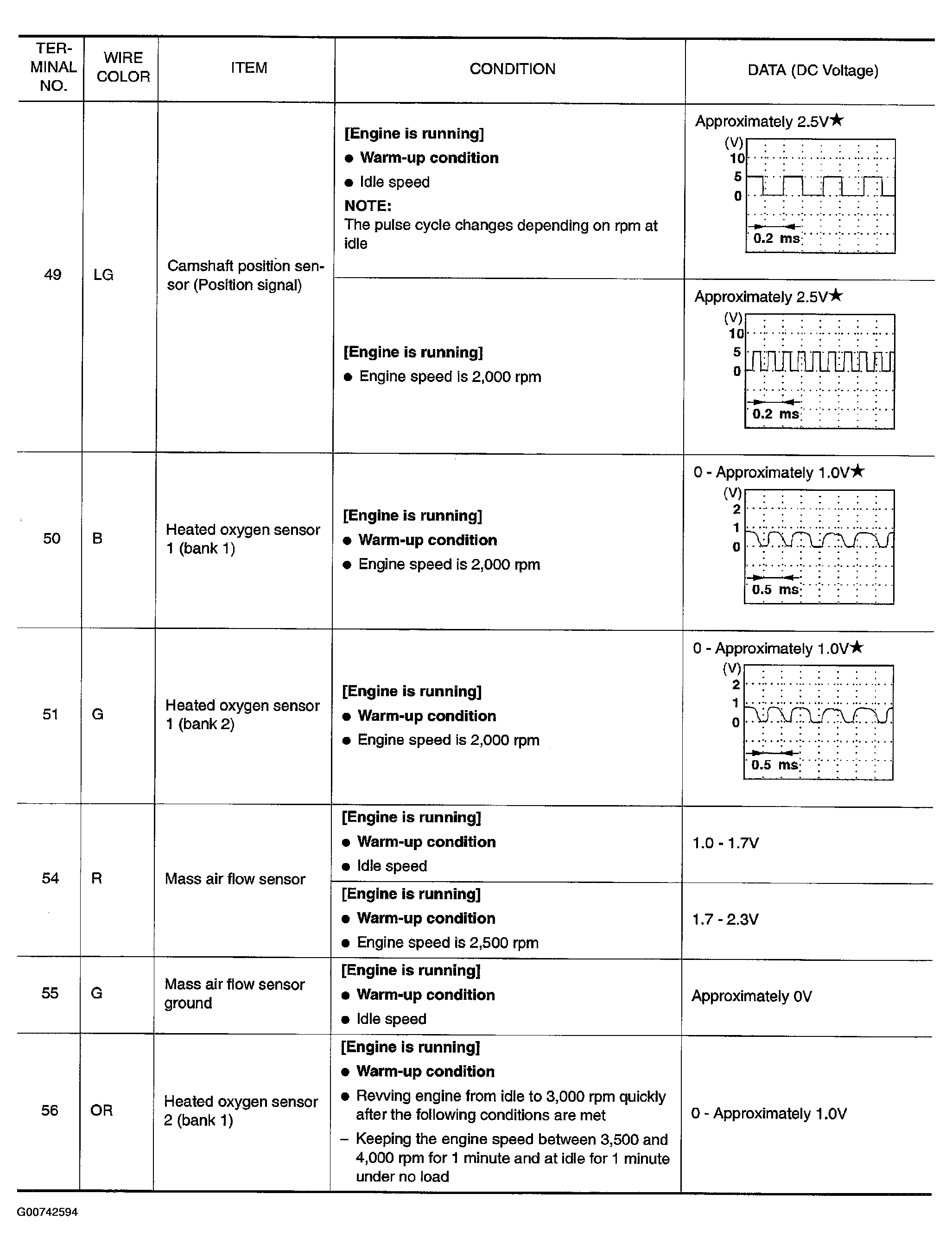

Fig 4: ECM Inspection Table (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

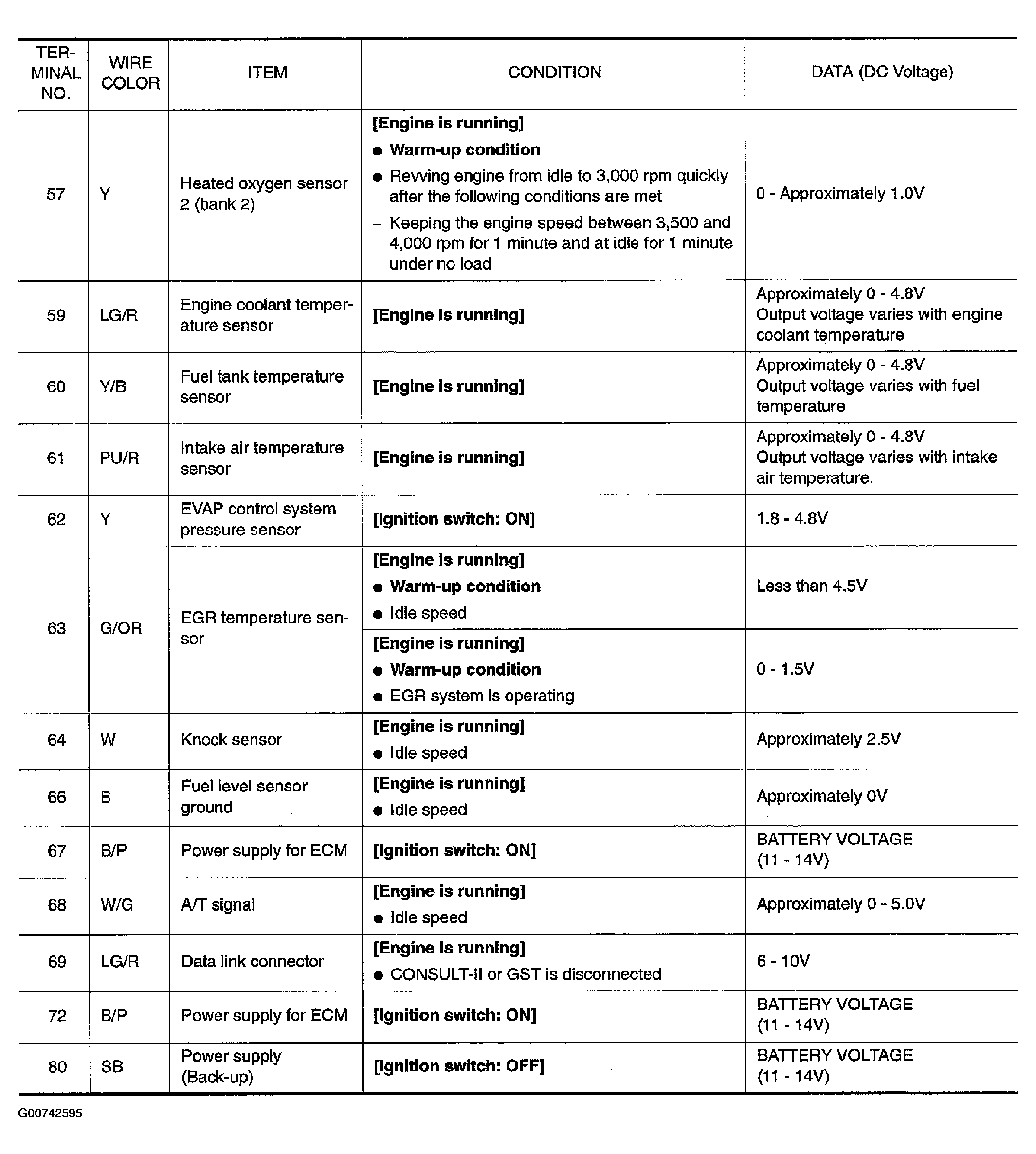

Fig 5: ECM Inspection Table (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

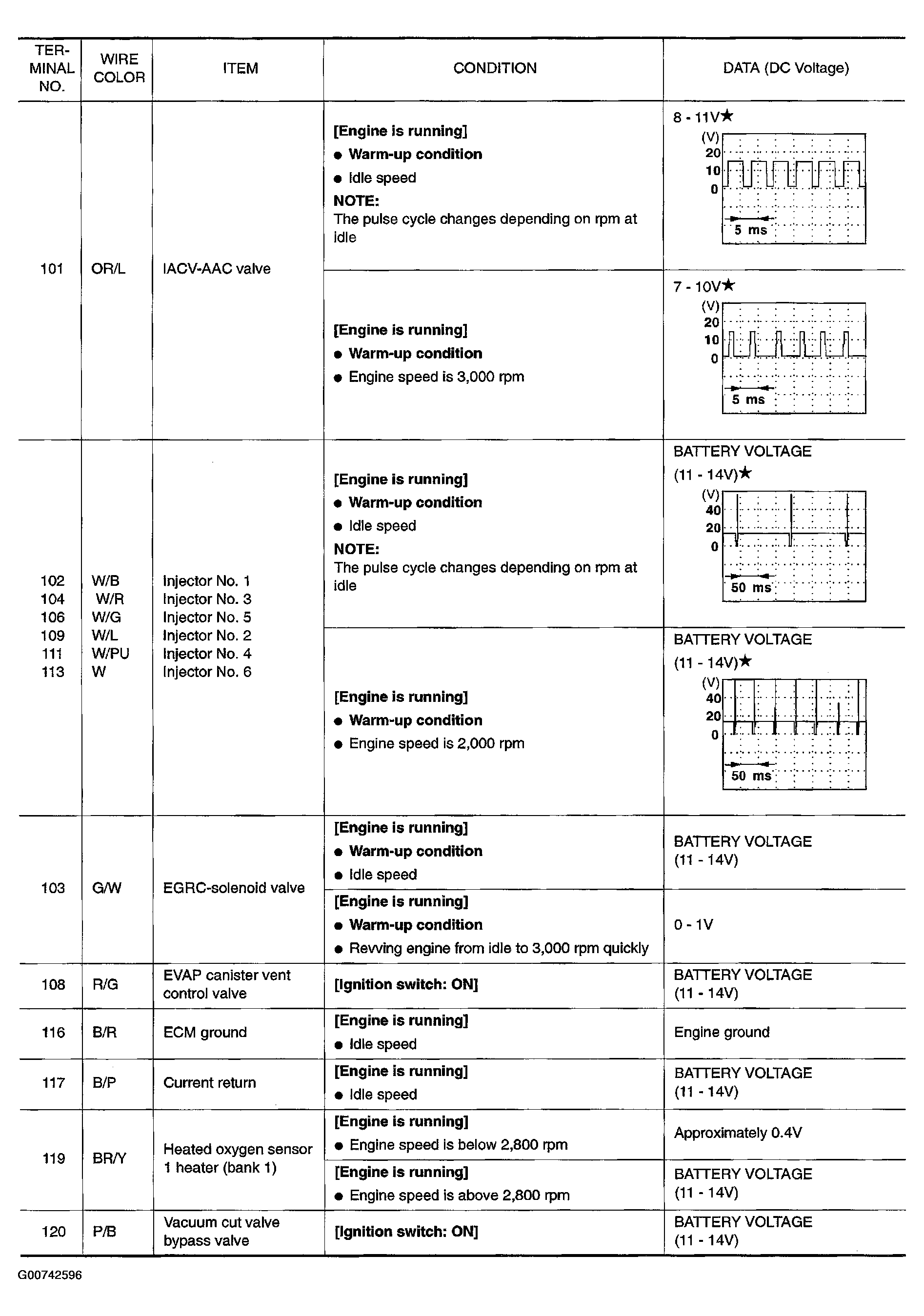

Fig 6: ECM Inspection Table (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

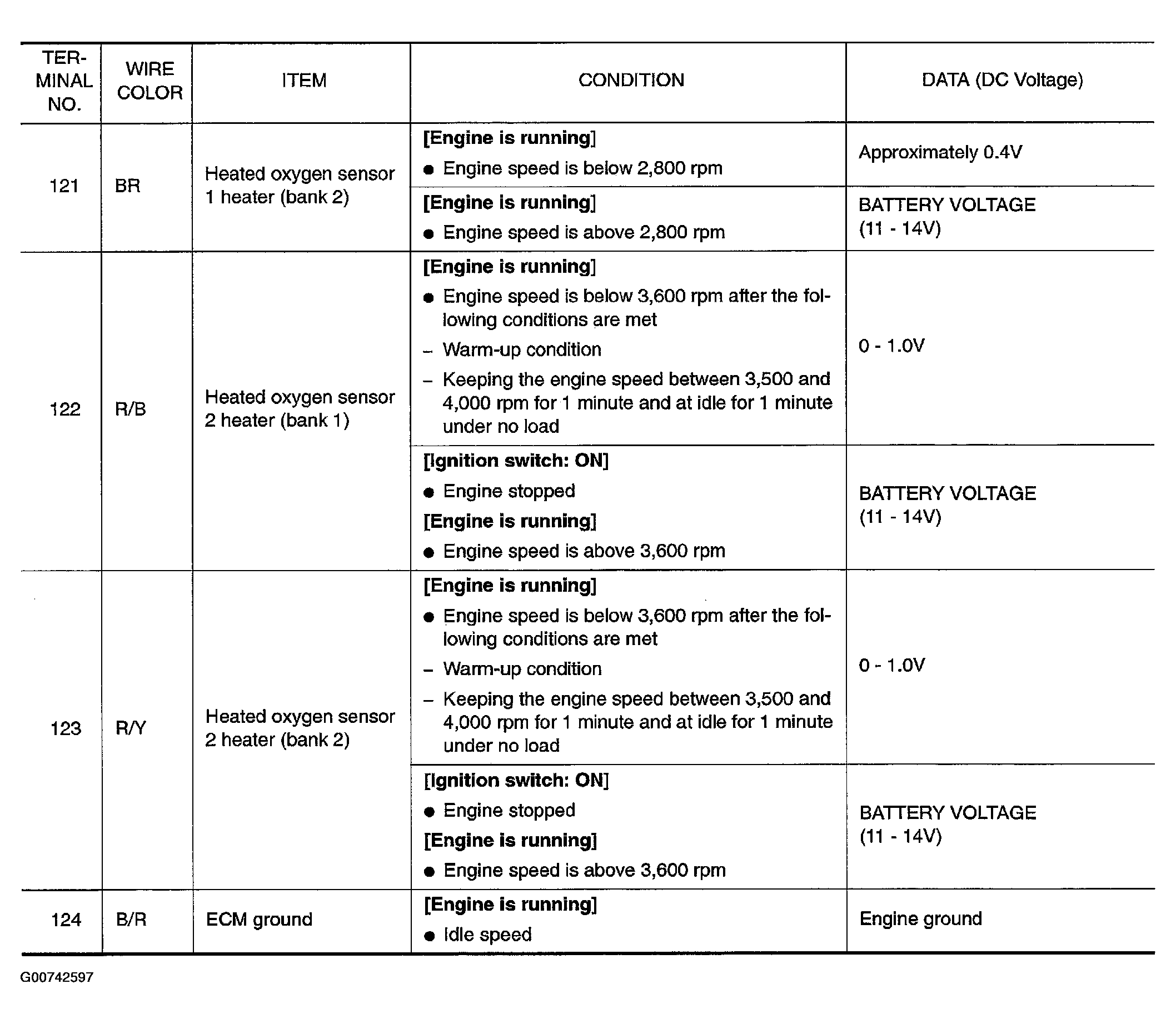

Fig 7: ECM Inspection Table (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

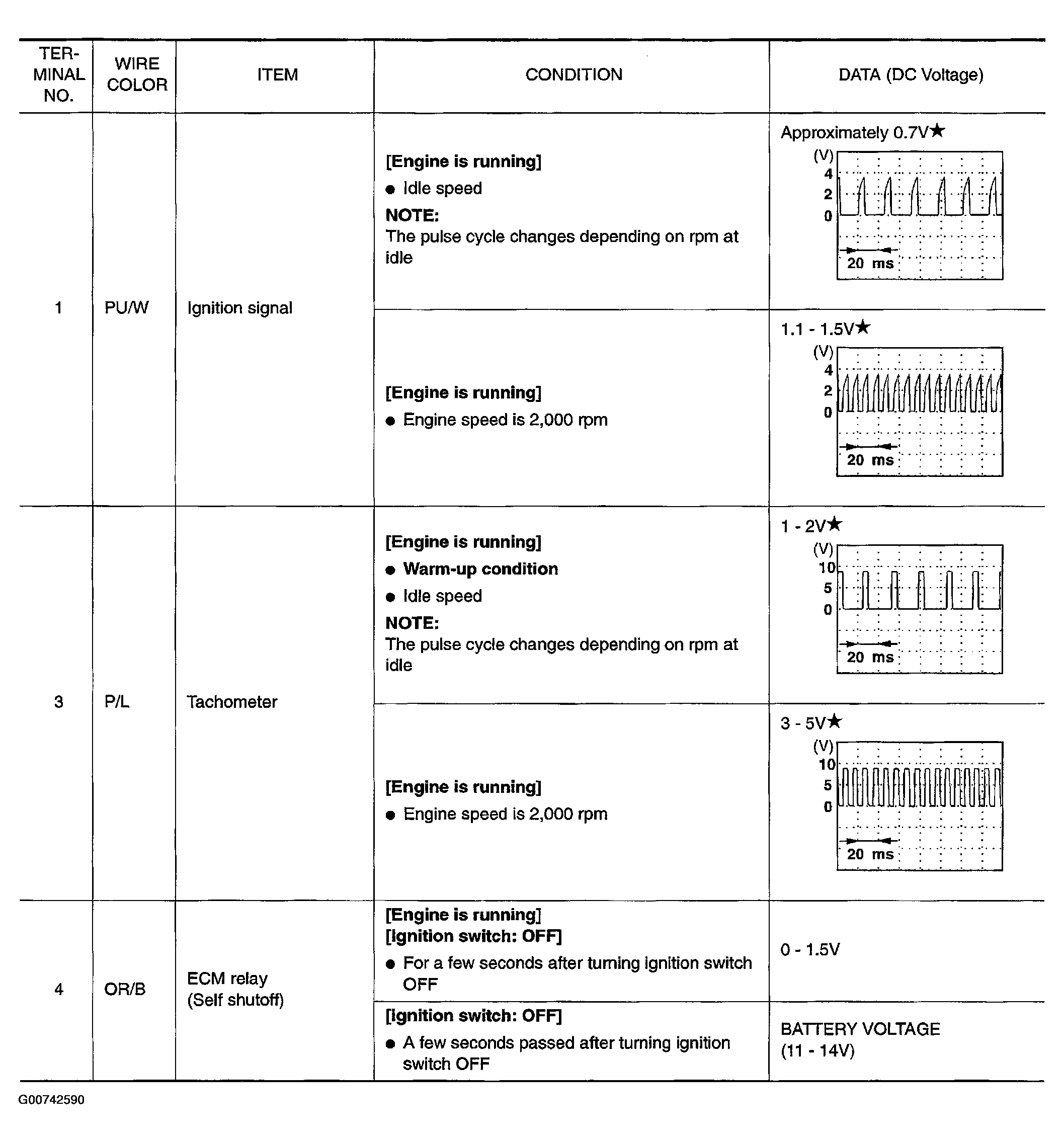

Fig 8: ECM Inspection Table (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
