Inspection Procedure

1. Turn ignition switch OFF.
2. Connect "GST" to data link connector which is located under LH dash panel near the fuse box cover.

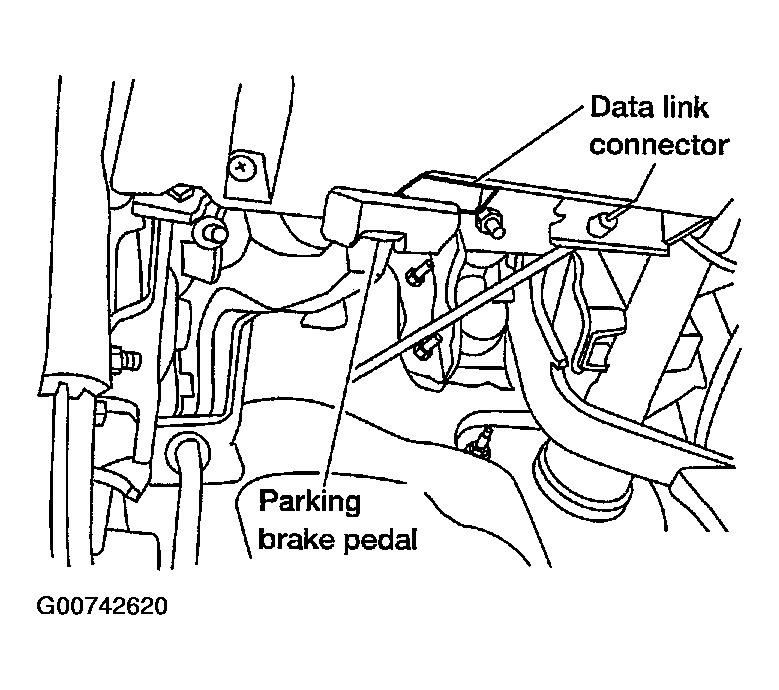

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.

   (*: Regarding GST screens in this article, sample screens are shown.)

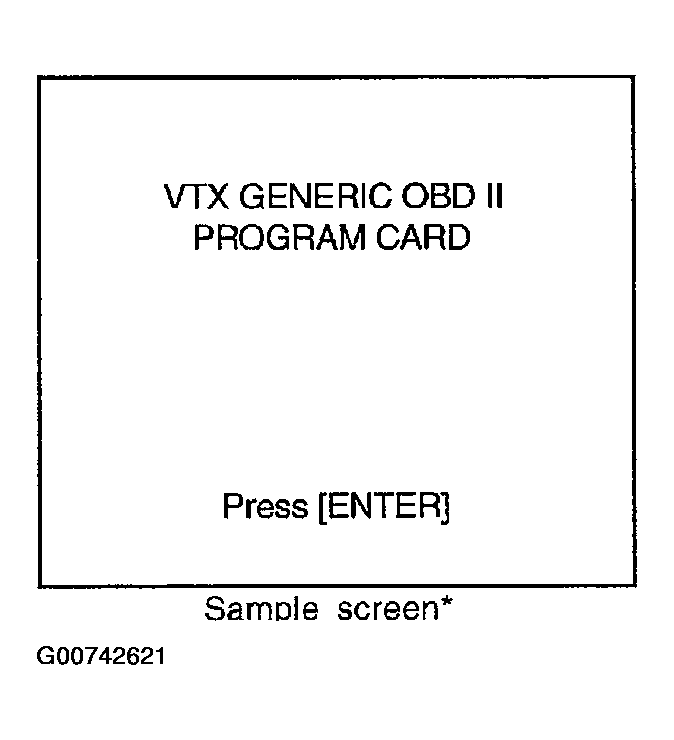

   Fig 2: Sample GST Display (1 Of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Perform each diagnostic mode according to each service procedure.

For further information, see the GST Operation Manual of the tool maker.

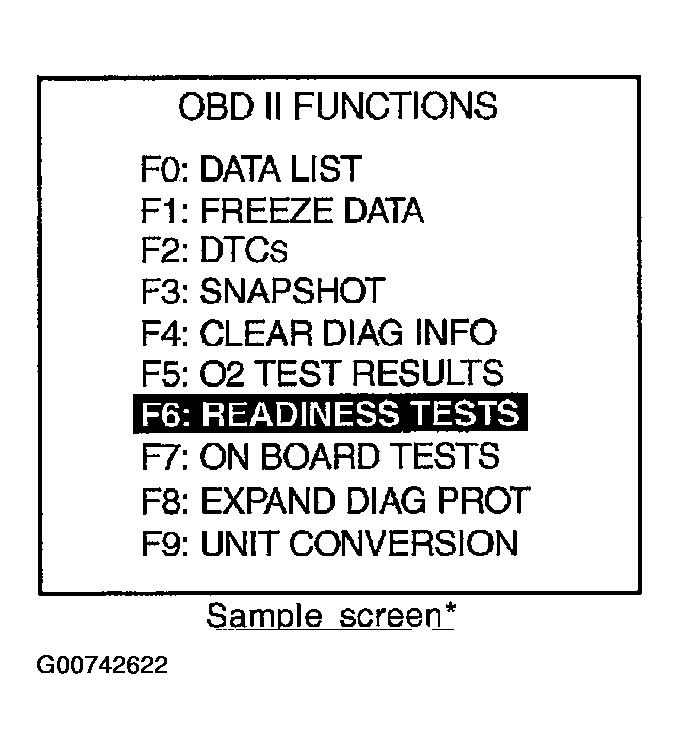

Fig 3: Sample GST Display (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
