Eng Speed, Mas A/F Se-B1, THRTL Pos Sen, Ho2S2 (B1), Ho2S1 (B1), INJ Pulse-B1

WARNING: This page is about a different variant/trim than selected.

Below is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL POS SEN", "HO2S2 (B1)", "HO2S1 (B1)" and "INJ PULSE-B1" when revving engine quickly up to 4, 800 RPM under no load after warming up engine sufficiently.

Each value is for reference, the exact value may vary.

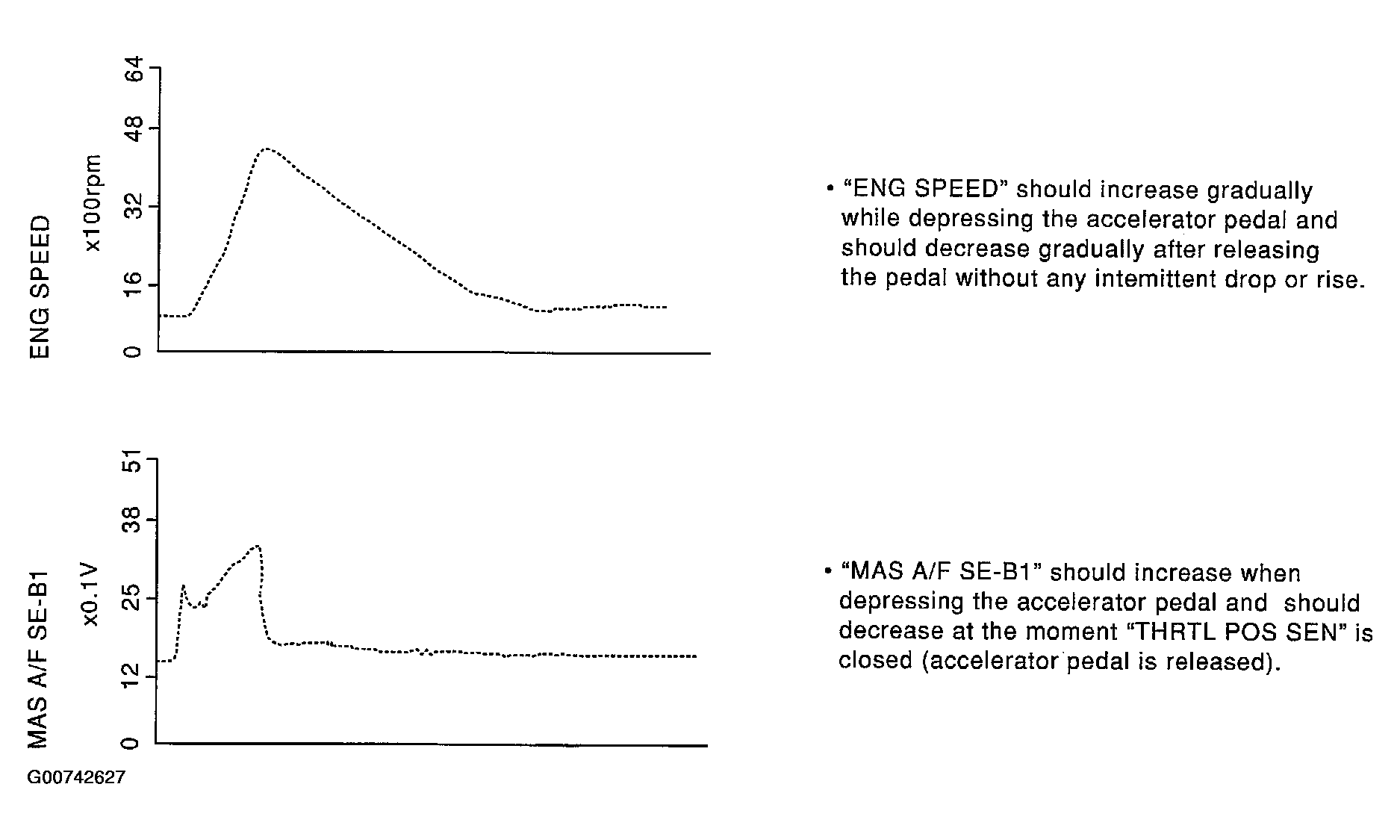

Fig 1: ENG SPEED, MAS A/F SE-B1 Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

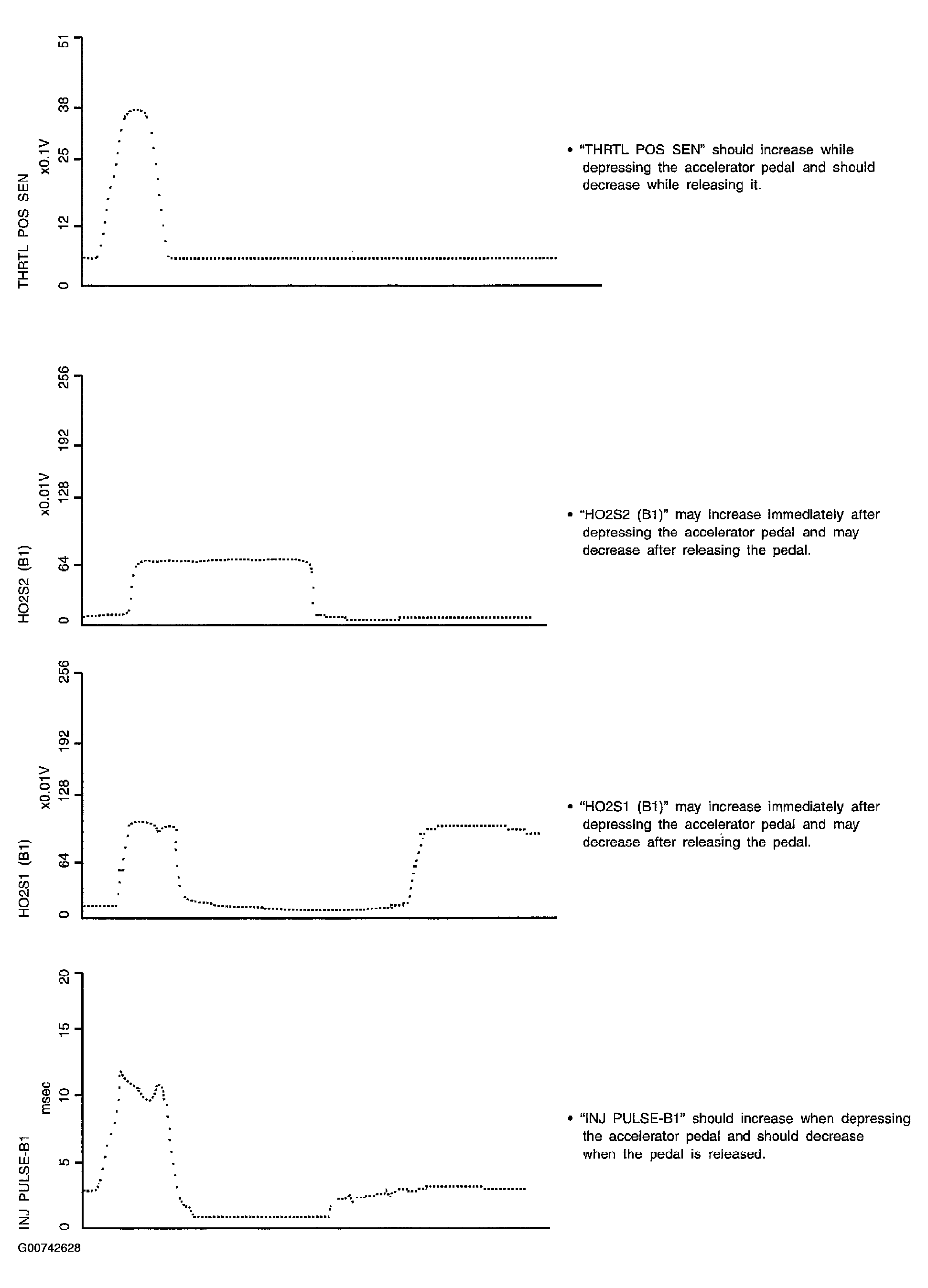

Fig 2: THRTL POS SEN, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1 Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
