System - Basic Engine Control System
WARNING:
This page is about a different variant/trim than selected.

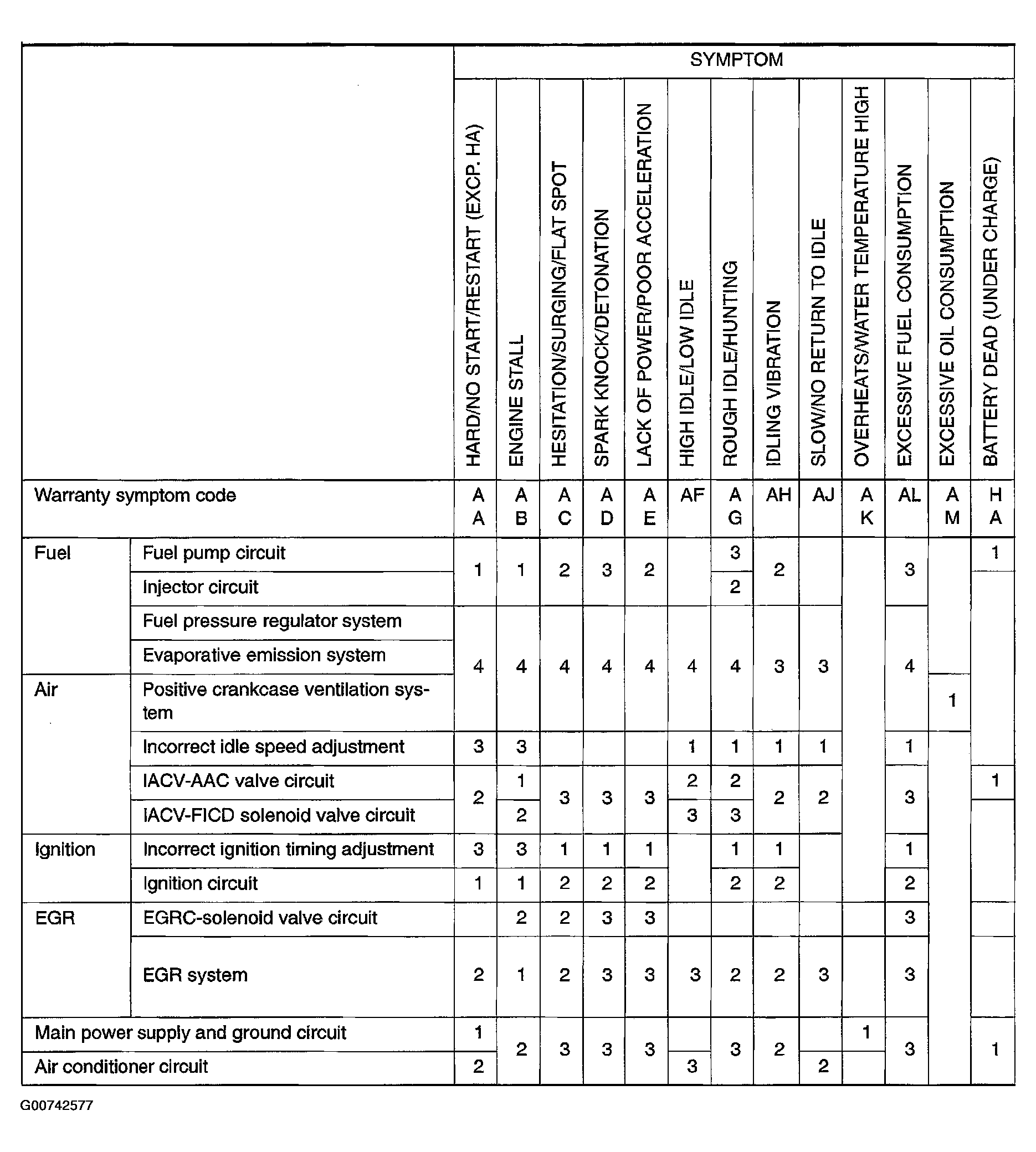

Fig 1: Basic Engine Control System Symptom Matrix Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

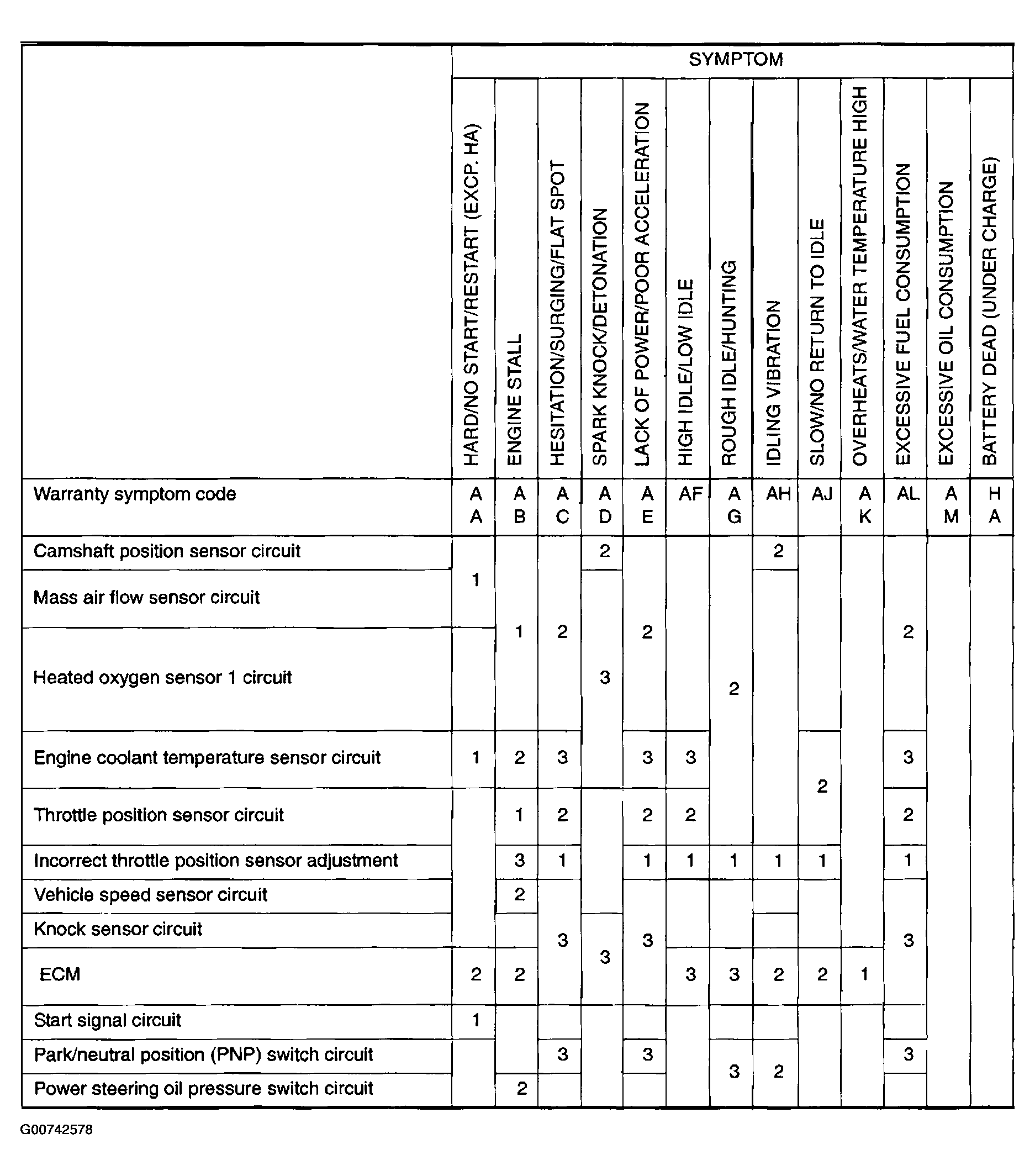

Fig 2: Basic Engine Control System Symptom Matrix Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
